hot sale cheapest price dongfeng 2.5tons telescopic boom mounted on dump truck, factory dongfeng dump truck with crane
hot sale cheapest price dongfeng 2.5tons telescopic boom mounted on dump truck, factory sale dongfeng dump truck with crane
Crane Feature of dongfeng CLW brand 2.5tons telescopic boom mounted on dump truck as below
Single cyliner synchronization guy cable technology make work efficiency more higher
The more symmetrical center design of pentagon hexagon boom make it has bigger anti-bending capacity.
The work is more safety after ftted with over wind alarm equipment
The integer lifting winch improved the work efficiency greatly and prolonged work life of hydraulic system
Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
Anti-slewing impulse equipment that make vehicle running safely
The rear leg to ensure the safety during the lifting
The operation can be done on the ground or in the air, the operator can see the cargo loading condition during his operation.
If you're interested in our dump truck with crane, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
main technical parameters of hot sale dongfeng 2.5tons dump truck with crane as below.
| Dongfeng 2.5ton small dump truck with crane Main Technical Parameter | ||||
| Product Model | Truck with crane | Gross Vehicle Weight (kg) | 6495 | |
| Curb Weight (kg) | 3865 | Overall Dimension(mm) | 5995x1980x2950 | |
| Lifting Capacity(kg) | 2000 | Cargo body dimension(mm) | 3500*1980*400 | |
| Axle No. | 2 | Wheelbase (mm) | 3300 | |
| Chassis Technical Parameter | ||||
| Chassis Model | EQ1060TJ20D3 | Chassis Name | Truck Chassis | |
| Chassis Brand | Dongfeng | Manufacturer | Dongfeng Automobile Co., Ltd | |
| Overall Dimension (mm) | 5820×1940×2080 | Tyre No. | 6 with 1 spare tyre | |
| App./ Dep. Angle(º) | 19/15 | Tyre Spec. | 7.00-16 | |
| Leaf Spring No. | 8/9+5 | Front Track (mm) | 1506 | |
| Fuel Type | Diesel | Rear Track (mm) | 1466 | |
| Drive Type | 4x2 | Brake System | Air brake | |
| Steering Type | Circulate ball | Gear Box | 5 speed forward and 1 reverse | |
| Engine Technical Parameter | ||||
| Engine Model | CY4102 | Emission Standard | Euro III | |
| Displacement ( mL ) | 3856 | Power (hp/kw) | 95hp/70kw | |
| Cylinder No. | 4 cylinders in line | Engine Type | Water cooling, four stroke, inter-cooling charged, | |
|
Equipment: 1. Rotational alert lamp on the top of the cabin. 6, installed with 2.5tons loading capacity CLW Brand/XCMG brand telescopic boom |
||||

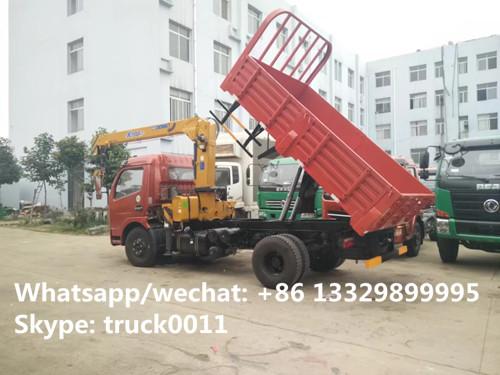

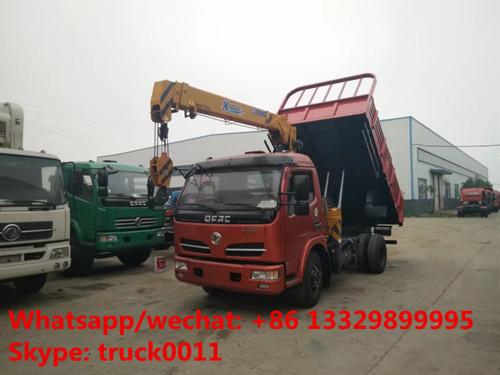

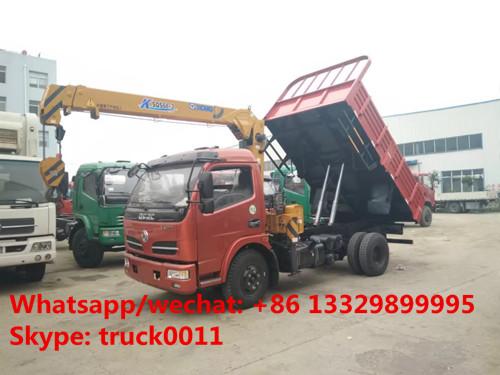

More picutres of hot sale dongfeng dump truck with crane as below
dongfeng brand 4*2 2.5tons dump truck with crane for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China. With many years’ development, Chengli Special Automobile Co., Ltd. can manufacture and sell 1tons-20tons truck mounted crane, and 100tons/150tons/200tons heavy duty crane truck, etc. More information, please feel free to contact with Ms. Anita.
