Professional Chengli 3 axle 50cbm lpg tanker trailers for sale,Factory sale best price CLW lpg gas tank semitrailer
Professional export Chengli 3 axle 50000l lpg tanker trailers for sale,Factory sale best price CLW lpg gas tank semitrailer
Specifications of Chengli 3 axle 50000l lpg tanker trailers for sale:
Chengli 3 axle 50000l lpg tanker trailers for sale is also called LPG trailer , LPG tank semitrailer , is widely used in transporting kinds of Liquefied petroleum gas, such as propane, isobutane, propylene, dimethyl , ammonia, etc. Adopt China newest or USA ASME pressure vessel Standard, it is high quality and reliable safety.
Product Notes:
1. We can make lpg trailer, lpg tank, lpg truck, lpg skid station, lpg tank container.
2. Special design for South America market: long wheelbase,one trailer axle with lifting device.
3. You can choose ASME standard products.
4. More than 10 years professional technology, Strictly whole process quality control.

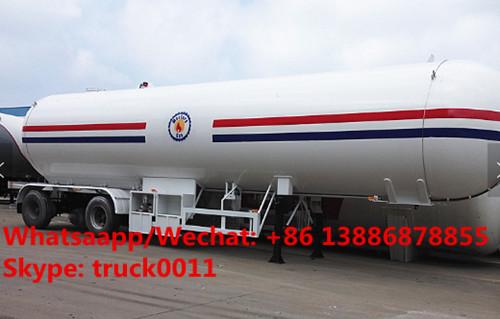

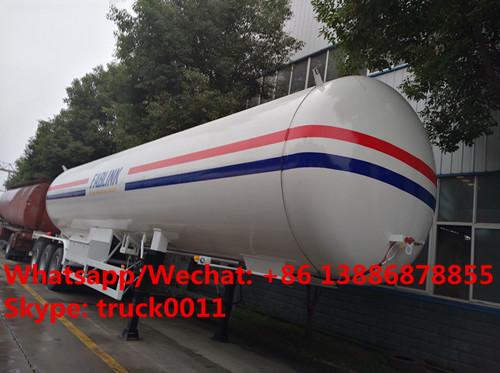

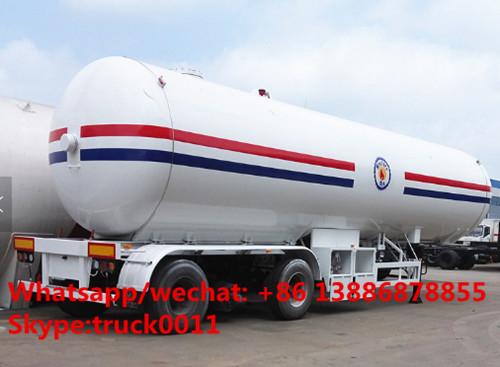

More pictures of hot sale 3 axles 50,000Liters lpg gas tank trailer manufactured by Chengli Special Automobile Co., Ltd. as below.
High quality and competitive price CLW Brand lpg gas tank trailer for sale
Customized 50m3 lpg gas tank trailer for sale
Main Parameters of Chengli 3 axle 50000l lpg tanker trailers for sale:
| Product name | Chengli 3 axle 50000l lpg tanker trailers for sale | |
| Tank parameter | Overall dimension(L*W*H)(mm) | 12740*2480*3800mm |
| Storage medium | Propane | |
| Volume(m3) | 50m3/50000L | |
| Curb weight (kg) | 15300 | |
| Tank material | Q345R | |
| Tank thickness(mm) | body 12mm/ Head 12mm | |
| Head type | two oval-shaped head | |
| Design pressure(Mpa) | 1.61mpa | |
| Test pressure(Mpa) | 2.1Mpa | |
| Design temperature(℃) | -19 ℃to 50 ℃ | |
| Paint process | First step: Blowing sand; second step:Spray Antirust primer; third step: Spray topcoats | |
| Accessories | With China top brand safety valve, thermometer, pressure gauge, emergency shut-off valve, magnetic ball float type level gauge, fire extinguisher, anti-static ground tape, two valve boxes, tool box, | |
| Manufacturing standards | China Newest Pressure Vessel Standard: GB150-2011 or ASME | |
| Optional | Sun shield( Surface aluminum plate, inside polyurethane foam) | |
| Chassis parameter | Axle number | 3 |
| Payload | 20832kg | |
| Suspension type | BPW Leaf spring suspension | |
| Brakes | 4-channel air brake compressed air brake with ABS | |
| electrical | 24V, with pneumatic fittings and seven pole socket | |
| Tire number | 12 with a spare tire | |
| Tire type | AEOLUS tires 12R22.5 | |
| King pin | JOST 90# | |
| Outrigger | 25 ton JOST outrigger manually operated with two speed | |
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13886878855
Skype: truck0011
QQ: 504873236
CHENGLI SPECIAL AUTOMOBILE CO., LTD , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing many kinds of special trucks. Our leading productions contain more than 300 types of trucks such as water truck, sewage suction truck, garbage truck, road sweeper, fuel tanker, chemical liquid truck, concrete mixer truck, LPG tanker, dump truck, refrigerated truck, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliable quality and flexible modes of operation. What's more, we have roundly passed the certification of ASME, ISO 9001:2008, ISO 14001:2004, OHSAS 18001:2007 and the China 3C Certification (China Compulsory Certification), etc.
CHENGLI SPECIAL AUTOMOBILE CO., LTD is the most important partner of DONGFENG, FAW, JAC, FOTON, SINOTRUK and other Automobile Company. It not only design, manufacture and test all kinds of special automobiles and fittings accurately as per the customer’s request ,but also provide all spare parts.
CHENGLI SPECIAL AUTOMOBILE CO., LTD is located in SUIZHOU City, HUBEI province, China, the native place of YANDI SHENNONG, and the Capital of Special Truck. Welcome the friends from all over the world to SUIZHOU! To our factory, you will be received the most enthusiastic reception.
