Hot selling SINO TRUK HOWO 6*4 16M3 Compressed rubbish Truc, wholesale good price 16m3 garbage compctor truck
Hot selling SINO TRUK HOWO 6*4 16M3 Compressed rubbish Truck garbage compactor truck, wholesale good price garbage compactor truck
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of garbage trucks, such as garbage compactor truck, refuse garbage truck, side loader garbage truck, swing arm garbage truck, rear loader garbage truck, hook lifter garbage truck, etc.
The volume of the compressor hopper is 3cbm, with changeover mechanism, adopting electrocute-chanical integration technology solution, with the help of automatic control system and manual control system of electromechanical integration, through some special devices, such as carriage, precompressor and push shovel, realizing garbage disposed, crushed or crushed, strong draw, forced the garbage into the garbage bucket, and compacted and shirked.
The main advantages of garbage compactor truck: collecting wastes easily, high effect, automatic repeat compacting garbage and peristaltic compression. High compression ratio, large loading, automatic working, powerful, environmental protection, the garbage buckets are common.
If you're interested in our garbage compactor truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of hot sale SINO TRUK HOWO 16M3 garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Main Technical Parameters | |||
| Total weight | 25000kgs | Whole truck dimension | 9800x2496x3048mm |
| Rated capacity | 13870kgs | Garbage box dimension | 7100x2326x2050mm |
| Kerb weight | 11000kgs | Garbage box volume | 16 m3 (16000L) |
| Passengers | 2 people | Fillter volume | 2m3 |
| Approach/departure angle | 16/15 | Front/rear overhang | 1500/2625mm |
| Axle no. | 3 | Wheel base | 4325+1350mm |
|
Pressure of Hydraulic System |
20Mpa | Cycle Time of Filling | ≤25s |
| Lifting Time of Filler | 8~10s | Time of Discharging | ≤40s |
| Max.Compression Force |
>25000kgs
|
Front / rear sewage tank volume |
250+150L |
| Chassis Parameters | |||
| Chassis brand | Sinotruck | Tyre nos. | 10 |
| Chassis dimension | 9800x2496x1050mm | Tyre model | 11.00-20 , bias tyres |
| Front axle | HF7 (7t) | Rear axle |
HW1697 (speed ratio:3.93) |
| Steering |
ZF8098 hydraulic steering with power assistance (18MPa steering oil pump) |
||
| Transmission | HW15710 , 10 forward and 2 reverse (manual) | ||
| Fuel type | Diesel | Fuel tank | 300L |
| Engine model | Emission standard | Engine power | Max. speed |
|
WD615.87 |
EuroII
|
290hp
|
90km/h
|
|
Others of engine |
1. Bore x stroke : 126x130mm 2. Displacement : 9.726L 3. Rated power & revolving speed : 266hp & 2200r/min. 4. Max. Torque & revolving speed : 1100N.m & 1100-1600r/min. |
||

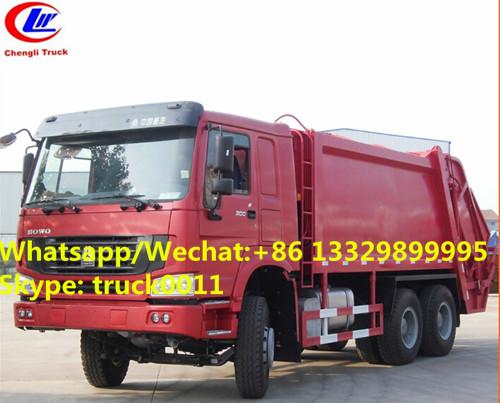

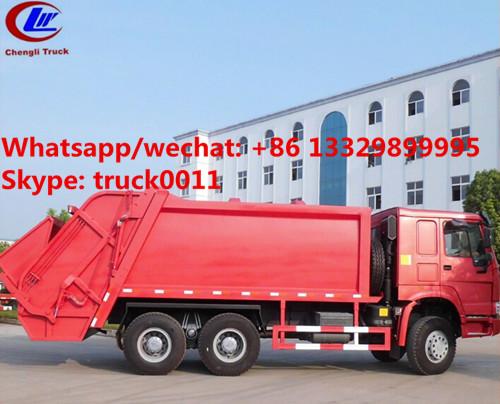

More pictures of hot sale SINO TRUK HOWO 6*4 16M3 garbage compactor truck as below
More pictures of customized SINO TRUK HOWO 6*4 16m3 garbage compactor truck as below
HOT SALE!SINO TRUK HOWO 6*4 16M3 garbage compactor truck
High quality and competitive price SINO TRUK HOWO 16M3 garbage compactor truck for sale
Customized SINO TRUK HOWO 16M3 wastes collecting vehicle for sale
