Factory sale high quality Dongfeng 12m3 compression rubbish truck, customized good price dongfeng 12m3 garbage truck
Factory sale high quality and lower price Dongfeng 12m3 compression rubbish truck, customized good price dongfeng 12m3 garbage compactor truck for sale
The compactor garbage truck is usually called garbage compactor truck, compression garbage truck,garbage compact truck,compressed refuse truck, rear loader garbage truck, compacted garbage truck with rear wastes bin mechanism, garbage compactor truck with rear overturning hopper, etc.
Our CLW compactor garbage truck is constructed with 12# low alloy steel and 5mm,4mm,10mm steel. The body is fitted on the chassis by the truck beam. The body floor is fully sealed. All the sewage can go directly into the sewage tank, so as not to corrode the body and chassis .Moreover, it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.
The garbage compactor truck usually compact the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
If you're interested in our garbage compactor truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of hot sale dongfeng 12m3 garbage compactor truck as below
| Main specifications | ||||||||||
| Product model,name | dongfeng Compression Garbage Truck | |||||||||
| Gross weight(Kg) | 14490 | Driving type | 4*2 | |||||||
| Payload (Kg) | 5000 | Overall dimension (mm) | 8600*2500*3200 | |||||||
| Curb weight(Kg) | 9295 | Cab seats (man) | 3 | |||||||
| Approach/departure angle (°) | 25/10 | Front/rear hang(mm) | 1250/2850 | |||||||
| Axle No. | 2 | Wheelbase (mm) | 4500 | |||||||
| Axle load(Kg) | 4980/9510 | Max speed(Km/h) | 90 | |||||||
| Chassis specifications | ||||||||||
| Chassis model | EQ5140KLJ | Manufacture | Dongfeng motor company | |||||||
| Brand name | Dongfeng | Overall dimension (mm) | 7640*2470*2710 | |||||||
| Tire specification | 10.00-20 | Tires No. | 6+1 | |||||||
| Steel spring number | 8/10+8 | Front track(mm) | 1940 | |||||||
| Fuel type | Diesel | Rear track(mm) | 1860 | |||||||
| Emission standard | Euro Ⅲ | Gear box | 8 forward and 1 rear | |||||||
| Cab | Cab can flip forward, flat head with sleeper, AC is optional | |||||||||
| Engine model | Engine manufacture | Displacement(ml) | Power(Kw) | |||||||
| B190 33 | Dongfeng cummins engine co.,ltd | 5900 | 140 | |||||||
| Performance | ||||||||||
| Body capacity(m3) | 12 | Hopper capacity(m3) | 1.8 | |||||||
| Compression cycle time(S) | 30 | Unload garbage time(S) | 40 | |||||||
| Control system | Manual + Automatic | |||||||||
| Main Characteristic | ||||||||||
|
1. Can choose 240L(single bin,double bins)or 360L,660L,1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism. 2. With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. 3. With working device of emergency braking stop button. 4. Garbage body use frame design, elegant, strong structure, large effective capacity. 5. Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. 6. Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression. |
||||||||||

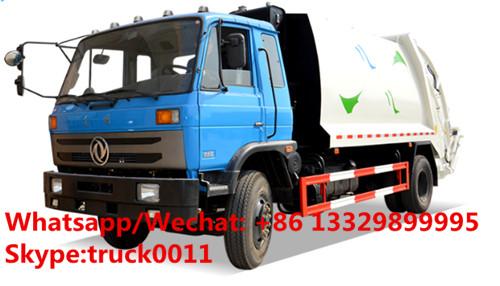

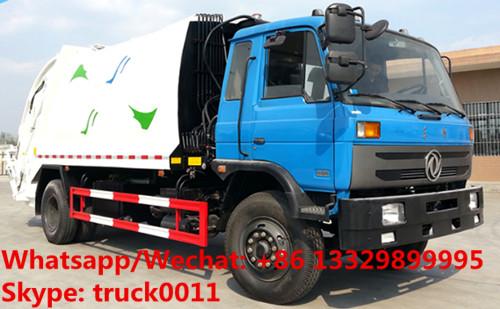

More pictures of hot sale dongfeng 12m3 garbage compactor truck as below
Factory sale best price dongfeng 12m3 garbage compactor truck
HOT SALE! high quality and competitive price dongfeng 12m3 refuse garbage truck
