Factory customized JAC brand 4*2 LHD 4m3 fecal suction truck for sale, HOT SALE! China cesspoolage tank truck
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of vacuum truck, fecal suction truck, feces-absorb truck, sewage suction truck, etc. in China since 2004s. With many years’ developing, Chengli Special Automobile Co., Ltd. could supply 2cbm to 10cbm fecal suction truck, 2cbm-16cbm sewage suction truck, etc. More information, please feel free to contact with Ms. Anita Deng.
cesspoolage tank trucks manufactured by Chengli Special Automobile Co., Ltd. adopt Wugang GB high quality sheets. The functions of the sludge truck is pumping and delivering feces, mud, bulk oil, etc. liquids. equipped with the leading chengliwei vacuum pump, with feces view window, one discharging open, cleaning device, mobile hanger rod, with 5m length hose, oil separator, anti-overflow valve, metal coating tanker, etc. choosing to install over-flow warming alarm device, double pump, etc.
The cesspoolage truck is widely used to transport liquid manure, slurries, crude oils, and other liquid with small suspending impurity and mainly used in such conditions, including septic tanks, gutters, sewers, toilets, and more. The discharging has high pressure discharging and self-discharging, etc. The time of sucking full the feces tank is ≤6min, the vertical distance is ≥7m, the rated speed is 1450r/min, the flow is 60m3/h..
If you're interested in our fecal suction truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
| Vehicle name | JAC fecal suction truck for sale | Vehicle Brand | JAC |
| Overall dimensions | 6000X1940X2600mm | Curb weight | 3365kg |
| Tank dimensions | 3390X1600X1060mm | Tank volume | 4000L |
main technical parameters of JAC brand 4*2 LHD fecal suction truck as below
| Chassis parameters | |||||
| Chassis model | HFC | Chassis brand | JAC | ||
| Overall dimensions | 5793x1796x2140mm | Wheel base | 3308mm | ||
| Front/rear wheel track | 1420/1440mm | Front/rear suspension | 1105/1380mm | ||
| Approach/departure angle | 20/15° | Maximum speed | 90km/h | ||
| Chassis Manufacturer | Anhui Jianghuai Automobile Co., Ltd | ||||
| Cab | Configuration | Single row cab, air conditioning,ABS | |||
| Color | Red, other color is optional | ||||
| Engine | Model | YN27CRD1 | |||
| Emission | Euro 4 | ||||
| Type | Electronically controlled high pressure common rail diesel engine, 4 cylinder inline, Turbocharged medium cooling | ||||
| Rated power | 95hp, rated power speed 3200rpm | ||||
| Displacement | 2672ml | ||||
| Max.torque | 250N.m | ||||
| Bore x stroke | 90X105mm | ||||
| Manufacturer | Kunming Yunnei Limited by Share Ltd | ||||
| Tire | Size | 650-16 Nylon tire | |||
| Number | 6+1 nos | ||||
| Fuel tank | 150L iron oil tank | ||||
| Drive form | 4X2 | ||||
| Suspension | Multi leaf springs | ||||
| Rated voltage | 24V, DC | ||||
| Transmissions | 5 speed forward 1 reverse. | ||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above, please take the actual product as the standard | |||||
| Fecal suction tank structure parameters | ||||
| Tank dimensions | 3390X1600X1060mm | Tank volume | 4000L | |
| Tank material | Carbon steel | Tank thickness | 6mm | |
| Color and Logo | Optional | |||
| Standard configuration | Chassis,sub frame,6mm carbon steel fecal tank,6 meters fecal suction pipe, rotating arm, domestic vacuum pump,oil and gas separator, water vapor separator, anti overflow valve, observation tube, gravity flow valve Φ200mm. | |||
| Selective configuration | Liquid full alarm device, scraper pump. | |||

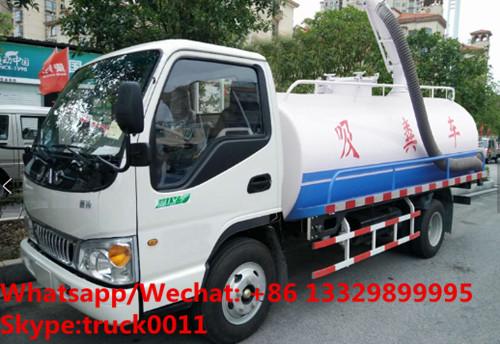

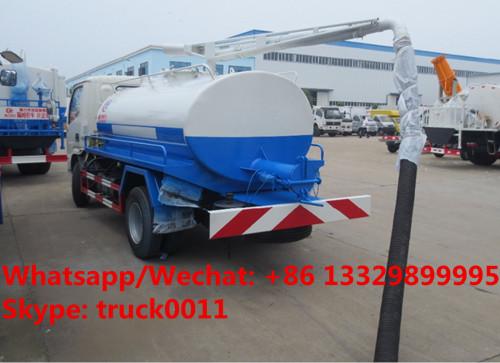

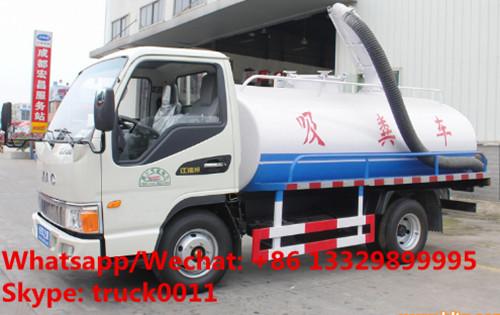

More pictures of hot sale JAC brand 4,000Liters fecal suction truck manufactured by Chengli Special Automobile Co., Ltd. as below.
High quality and competitive price JAC brand fecal suction truck for sale
HOT SALE! JAC brand vacuum tank truck
customized JAC brand fecal suction truck for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.:+86 13329899995
Skype: truck0011
QQ: 504873236
