China dongfeng 4*2 4tons compression garbage truck for sale, Factory customized Dongfeng 4*2 RHD compacted garbage truck
China dongfeng 4*2 4tons compression garbage truck for sale, Factory customized Dongfeng 4*2 RHD compacted garbage truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of garbage trucks, such as garbage compactor truck, refuse garbage truck, side loader garbage truck, swing arm garbage truck, rear loader garbage truck, hook lifter garbage truck, etc. More information, please feel free to contact with Ms. Anita Deng.
The collection garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.
The compactor garbage trucks usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
The garbage compactor truck we maufacture is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to
municipal applications where large amounts of mixed industrial and domestic refuse is to be collected.
Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed. It can compact and dump the
garbage automotically. The sewage will flow in the compartment completely to aviod re-pollute during transportation.
If you're interested in our garbage compactor truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com
As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 18cbm
| Description | DONGFENG Xiaobawang Garbage Truck | |
| Drive Model | 4X2 | |
| Chassis | EQ1060TJ20D3 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 6320×2050×2560 |
| Wheel base (mm) | 3300 | |
| Overhang (front/rear) (mm) | 1032/1988 | |
| Wheel track (front/rear) (mm) | 1506/1466 | |
| Approach/Departure angle(°) | 19/10 | |
| Weight in KGS | Curb Weight | 5365 |
| GVW. | 6495 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Model | CY4102 |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 95HP | |
| Emission standard | Euro III | |
| Gearbox | 5forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 150 | |
| Tire | 7.00-16 tire ,6+1 spare | |
| Brakes | dual circuit compressed air brake | |
| Allowable passengers in cab | 2 | |
| upper | ||
| Volume(kg) | 1000 | |
| Material | Q235carbon steel | |
| Thickness | 5mm | |
| Uploading cycling time | <60s | |
| Loading cycling time | ≤30s | |
| Lifting capacity | ≥800KG | |
| Operation control system | Electrically hydraulic control | |
| Equipment | Equipped with dustbin, hydraulic system and operating system Equipped with two advanced double acting hydrocylinders One vehicle can cooperate with several dustbins to improve the ability of cycle operation.cycling time60s |
|

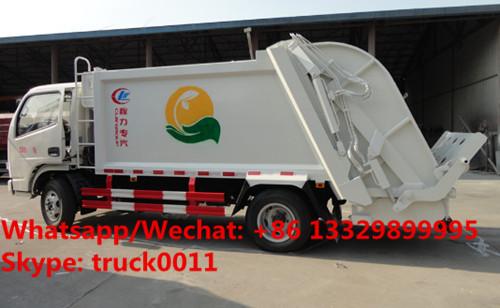

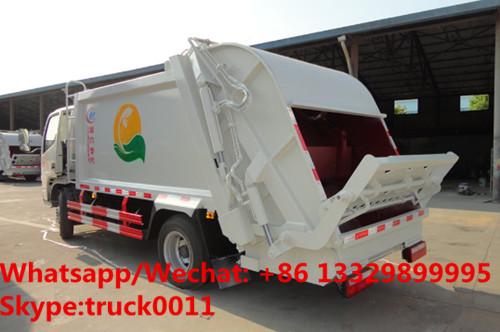

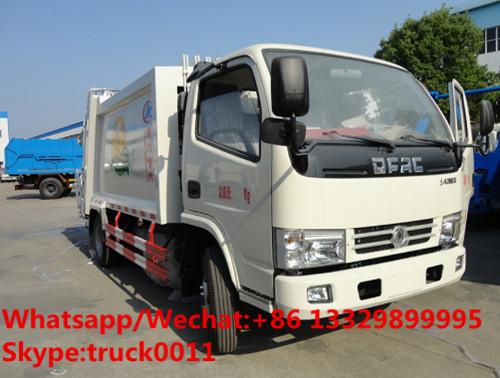

More pictures of hot sale dongfeng 5m3 garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.

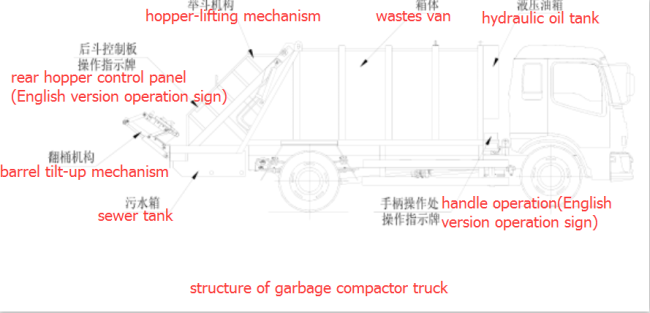

simple drawing pictures of CLW compactor truck for sale
high quality and competitive price dongfeng RHD 4tons garbage compactor truck for sale
Factory sale 5m3 compression garbage truck
HOT SALE!dongfeng 4*2 RHD 5m3 compacted garbage truck
Rear load garbage truck, is also garbage compactor truck, garbage compacted truck, specially designed and produced for garbage collection,transport and garbage transfer with its high efficient, no pollution, and environment protection for road, street, community, school, factory, etc.
With many years' development, we can design and manufacture 5cbm, 6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm, 18cbm, etc.
And the compactor system we can choose Vehicle box body, pushing shovel, slipping plate, scraper, filling hopper, sewage tank, hydraulic system and control system.
The hydraulic system: Pushing shovel, slipping plate, scraper, filling operation.
Control system: Operation panel, handle operation.
And the client can choose box body shape, rear turn-over mechanism(attached the pictures)
Common garbage bin, special garbage bin, small trangular hopper, big triangular hopper, trapezoidal hopper, etc.
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
QQ: 504873236
