Cheapest price dongfeng 4*2 LHD 10cbm vacuum tank truck for sale, Factory sale good price sludge tank truck
Cheapest price dongfeng 4*2 LHD 10cbm vacuum tank truck for sale, Factory sale good price sludge tank truck
Vacuum pump sewage tank truck is also called sewage suction truck, sewer vacuum tank, sludge tank truck, septic tank truck, etc. It mainly used for sucking, transporting, and discharging of sewers from septic tank and sludge from drains. Widely used by municipal environment and sanitation department and residential management.
And CLW brand sewage suction truck is made up of Imported vacuum pump, power-take off, hydraulic cylidners, control valves, pressure gauge, water-gas separator, oil water separator, level inspection window, suction hose, pipeline system, etc.
As a professional special sewage truck manufacture in China,We Chengli Special Automobile Co., Ltd. can design and manufacture sewage suction trucks from 3000 liter to 16000 liters.
The main technical advantages of CLW brand vacuum tank truck manufactured by Chengli Special Automobile Co., Ltd. as below
a. the sewage suction truck belongs to the medium tonnage special purpose vehicle for wide using.
b. all the tanker materials uses 5mm thickness high quality Wugang sheets. And the capped end adopts 6mm thickness steel sheet one-formed spinning.
The tanker is just a cylinder; the capped end is a half ball shape, the protecting part of the end is about 350mm, and which can avoid tanker and the end not flat for sucking.
c.the tanker volume: 10cbm, adopting Wuagng high quality carbon steel sheets, equipping with big power special vacuum sewage suction pump. And the special parts are made up of vacuum pump, PTO, shaft, water separator, oil separator, multi-way valve, tanker, discharging valve, sewer view window, vacuum pressure gauge, pipelines, hydraulic system, etc. The rear door is operated by the hydraulic switch with self-discharging function. The outlet is shut by pneumatic controlling. The truck also equips with one 5m length hose, with hand cleaning small water tanker.
d. the main advantages and the product description: the sewage suction truck is just suitable for sucking, transport and discharging all kinds liquid or half liquid, such as sewer, septic pool, swill, slops, feces and 8mm stone).
If you're interested in our CLW brand vacuum tank truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/MOb.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of dongfeng 4*2 LHD TIANJIN sewage suction truck as below
| Product name | Dongfeng Tianjin 10m3 vacuum truck |
| Driving type | 4*2 RHD, LHD is selective |
| Driver cab | Dongfeng Tianjin 4*2 RHD one row and a half luxurious driver cab with original air conditioner |
| Gearbox | Dongfeng 6 speed transmission |
| Wheelbase(mm) | 4700mm |
| Gross Vehicle Weight(Kg) | 16000 |
| Curb Weight(Kg) | 8805 |
| Max speed(km/h) | 85 |
| Engine model | B170 33/B190 33 |
| Engine displacement (ml) | 5900ml |
| Engine Rated power | 125KW/140KW |
| Fuel type | Diesel |
| Emission standard | Euro 3 |
| Vacuum Tank volume | 8-10m3 |
| Tank Material | Carbon Steel |
| Tank Thickness(mm) | 5 |
| Tank Shape | Cylindrica |
The main parameters of vacuum pump for sludge tank trucks manufactured by Chengli Special Automobile Co., Ltd.
| Vacuum pump model | XD-44(double pump) |
| Vacuum pump blade | Silicium steel centrifugal casting blade |
| Blace thickness | ≥30mm |
| Suitable rotational speed | 500-600 revolutions/min |
| Max vacuum degree | 93-96kilopascal |
| Tanker volume | 10cbm |
| Vertical absorbing height | ≥7m |
|
Horizontal absorbing height
|
30m |
| Full absorbing time | ≤5min |
| Alarm type |
Swing rod electronic alarm
|
| Tanker lifting time | ≤20s |
|
Remark: this truck just use the double anti-overflow pump, avoiding overflowing better and last the lift time of the pump.
|
|

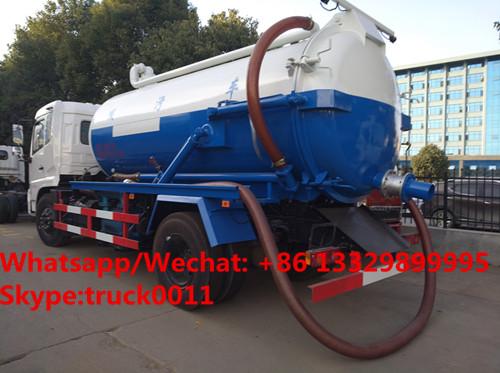

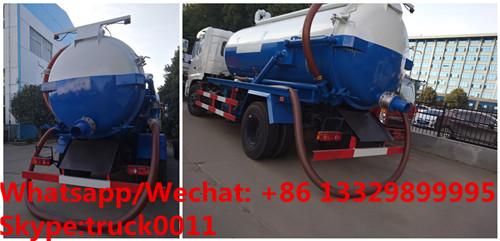

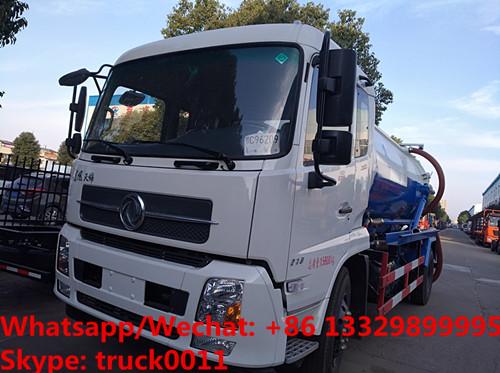

More pictures of customized dongfeng tianjin 10m3 sewer tank truck manufactured by Chengli Special Automobile Co., Ltd. as below.

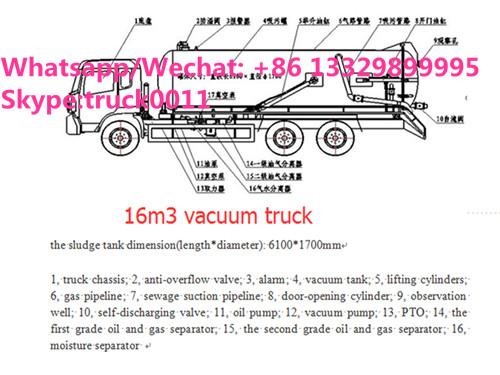

simple drawing pictures of sludge tank truck
HOT SALE! dongfeng 10m3VACUUM TANK TRUCK for sale
Factory customized sludge tank truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sewage suction trucks in China since 2004s. With many years'experience in developing, Chengli Special Automobile Co., Ltd. could supply 2cbm-16cbm sludge tank truck, such as dongfeng brand sewage suction truck, ISUZU septic tank truck, FAW vacuum truck, forland sewage suction truck, JMC liquid wastes truck, Yuejin cesspit empiter truck, HOWO vacuum truck, etc. More information, please contact Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
QQ: 504873236
