best seller good price smaller dongfeng 5m3 4tons compression garbage truck for sale, garbage compactor truck for sale
best seller dongfeng 5m3 4tons compression garbage truck for sale, garbage compactor truck for sale
Rear load garbage truck, is also garbage compactor truck, garbage compacted truck, specially designed and produced for garbage collection,transport and garbage transfer with its high efficient, no pollution, and environment protection for road, street, community, school, factory, etc.
With many years' development, we can design and manufacture 5cbm, 6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm, 18cbm, etc.
And the compactor system we can choose Vehicle box body, pushing shovel, slipping plate, scraper, filling hopper, sewage tank, hydraulic system and control system.
The hydraulic system: Pushing shovel, slipping plate, scraper, filling operation.
Control system: Operation panel, handle operation.
And the client can choose box body shape, rear turn-over mechanism(attached the pictures)
Common garbage bin, special garbage bin, small trangular hopper, big triangular hopper, trapezoidal hopper, etc.
The compression bucket volume of JAC compacted garbage truck is 6-7cbm, with changeover mechanism, adopting electromechanical integration technology solution, with the help of automatic control system and manual control system of electromechanical integration, through some special devices, such as carriage, precompressor and push shovel, realizing garbage disposed, crushed or crushed, strong draw, forced the garbage into the garbage bucket, and compacted and shirked.
Control way of the garbage compactor truck manufactured by Chengli Special AUtomobile Co., Ltd. as below:
PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
The main advantages: collecting wastes easily, high effect, automatic repeat compacting garbage and peristaltic compression. High compression ratio, large loading, automatic working, powerful, environmental protection, the garbage buckets are common.
If you're interested in our garbage compactor truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of 5m3 compression garbage truck manufactured by Chengli Special Automobile Co., Ltd. as below
| 1 | Product name |
Dongfeng 4*2 LHD 5m3 garbage compactor truck(CLW5060ZYS3) |
| 2 | Truck chassis model |
EQ1060 |
| 3 | Overall dimension(L*W*H) |
6470, 6320*2050*2560 |
| 4 | Total mass(kgs) | 6495 |
| 5 | Curb mass(kgs) | 5365 |
| 6 | Rated mass(kgs) | 1000 |
| 7 | Volume | 5m3 |
| 8 | Real loading capacity | About 4tons |
| 9 | Max speed | 90kw/h |
| 10 | Wheelbase | 3300 |
| 11 | Axle nos. | 2 |
| 12 | Driver cab | Dongfeng 4*2 single row driver cab with 2-3 seats with power steering and without air conditioner. Air conditioner is selective |
| 13 | Approach/departure angle(°) | 19/20 |
| 14 | Front/rear suspension (mm) | 1032/2138 |
| 15 | Front/rear tread(mm) | 1506/1466 |
| 16 | Tire specification | 7.00-16*6 |
| 17 | Spring | 8/9+5 |
| 18 | Engine model | CY4102 chaochai diesel engine |
| 19 | Rated power | 70KW/95hp |
| 20 | Displacement(ml) | 3856ml |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 3 |
| 23 | Gearbox | 5 speed gearbox, manual |
| 24 | Front/rear axle | 2tons/4tons |
| 25 | Color | Different color upon request |
| 26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 27 | Wastes van material | High quality China standard light duty steel |
| 28 | Operation way | PLC control way |
| 29 | Loading and discharging way | Rear overturning mechanism |
| 30 | Compacted way | Bi-directional compression |
| 31 | Wastes compacting density | ≥0.8tons/m3 |
| 32 | One working circle time for loading and discharging | ≤30s |
| 33 | Max compressing force | ≥150KN |
| 34 | Max passing force | ≥180KN |

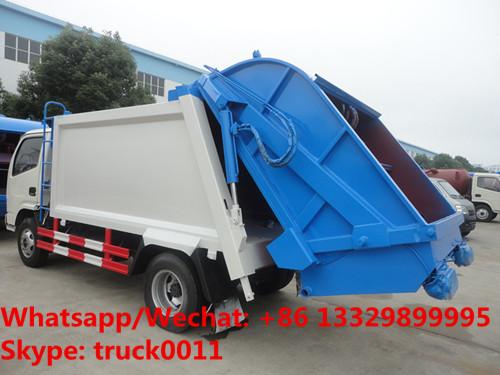

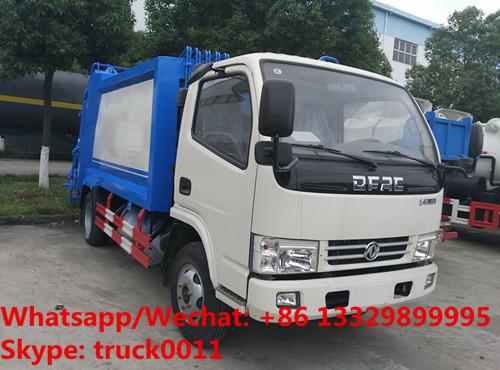

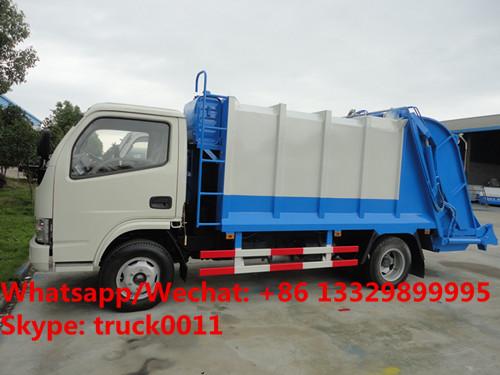

More pictures of CLW 5m3 compression garbage truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Customized dongfeng 4*2 LHD 5m3 compacted garbage truck for sale
High quality and competitive price dongfeng 4*2 LHD 4tons rear loader garbage truck for sale
