HOT SALE! customized dongfeng 4*2 RHD 10,000Liters water sprinkling truck for Timor-Leste, dongfeng water tank truck
HOT SALE! customized dongfeng 4*2 RHD 10,000Liters water sprinkling truck for Timor-Leste, dongfeng water tank truck
HOT SALE! customized dongfeng 4*2 RHD 10,000Liters water sprinkling truck for Timor-Leste
dongfeng 145 10cbm water truck, adopts dongfeng 145 original chassis, 4*2 driving type, flathead one row and a sleeper driver cab, 3950mm wheelbase, Cummins B170hp(6 cylinders) inter-cooling diesel engine, dongfeng 6 speed transmission, 3.6ton front bridge/9ton rear bridge,, 9.00-20 nylon tyre, with power steering, etc.

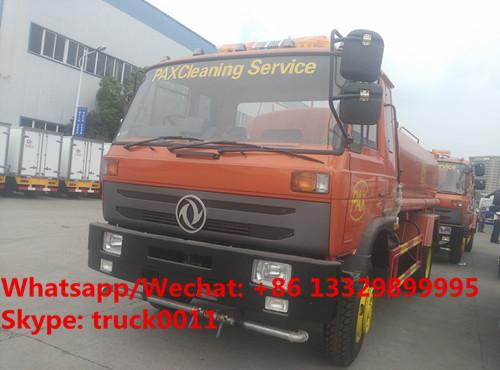

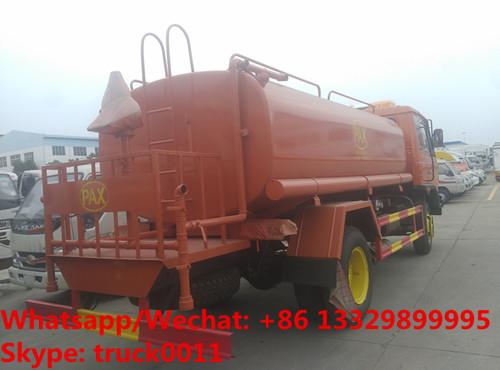

More pictures of Dongfeng 4*2 RHD 10,000Liters cistern truck as below
high quality and competitive price Dongfeng RHD 10,000Liters water tank truck
HOT SALE! Dongfeng RHD 10cbm water sprinkling truck
Whatsapp/Wechat/Mob.: 0086 13329899995.
Website: www/trucksinchina.com
B, Main technical data of dongfeng RHD 10,000Liters water tank truck manufactured by Chengli Special Automobile Co., Ltd. as below
| 1 | Chassis model |
EQ1110GLJ |
| 2 | Engine model | B170 33 |
| 3 | Engine power | 125kw |
| 5 | fuel consumption(L/100km) | 23L |
| 6 | Max speed | 90kw/h |
| 7 | Mining turning diameter | 18m |
| 8 | Max Climb gradient | 25﹪ |
| 9 | Wheelbase | 3950(mm) |
| 10 | Total mass | 11495Kg |
| 11 | Curb mass | 6800Kg |
| 12 | Rated mass | 4500Kg(real load is 10,000kg) |
| 13 | Tank volume | 10m3 |
| 14 | Water pump model | 60-90(CLW brand) |
| 15 | Water pump flow | 60m3/h |
| 16 | Water pump delivery head | 90m |
| 17 | Tank volume | 10m3 |
| 18 | Max watering width(front sprinkling) | ≥25m(360 degree adjustable, double front spraying nozzles) |
| 19 | Max watering width(rear sprinkling) | ≥20m |
| 20 | Max watering width(side sprinkling) | ≥20m |
| 21 | Water cannon water range | ≥35m |
| 22 | Water pump type | Self-sucking |
| 23 | Self-sucking height | ≥7m |
| Overall dimension(L*W*H):7500×2470×3050(mm) | ||
CLW5111GSST3 water truck, refits on the second type truck chassis EQ1110GLJ. Water truck is made up of water tank and pump drainaging system.
1, tank, adopts high quality 4mm thickness hot rolled plate, and the double head ends with 5mm hot rolled plates. There is two units of anti-wave plates inside the tank. In order to last the using life, the water tank is with Phosphating coating treatment, and also painted with anticorrosive varnish.
2, Pump drainaging system, chooses Japan technical CLW brand 60-90 model water pump. And the PTO choose to install dongfeng 145 special PTO; the valves choose the high quality CLW brand aluminum alloy ball valves; the pipeline adopts high quality perfect galvanized pipes, etc.
The quality and functions of water trucks
Front spraying: fitted with 360° rotatable straight nozzles controlled by driver cab. The flush width can reach ＞15m.
Rear sprinkling, fitted with 2 rear spraying devices, mainly used to clean the road, make the road clear. When spraying as fan-shaped, the spraying width can reach ＞25m.
High spraying: working platform equipped with water cannon, the spraying range can reach 28m, the water cannon can adjust to heavy rain, moderate rain, drizzle or mist, etc. mainly used for landscaping greening, also sued as fire truck in urgency.
Side sprinkling: install 2 side spraying nozzles behind the truck, mainly used to spray, water, dedusting of the greening, etc.
Self-sucking: install with 2 suction sleeves, one absorber,
