BEST PRICE Customized forland 4*2 RHD road sweeping and cleaning truck for sale, street sweeping vehicle, sweeper truck
BEST PRICE Customized forland 4*2 RHD road sweeping and cleaning truck for sale, Factory sale good price forland street sweeper(1.5m3 water tank +4m3 dust tank)
The road sweeper truck adopts middle 4pcs cleaning brushs,and rear installate suction mouth,so the truck cleaning effect is good ,and the truck water tanker and garbage box made by SS340 stainless steel ; Garbage box and the water tank is an integral structure, water tank in the dustbin garbage box bottom plate bottom pretilt angle up to 12°, easy to dump clean. Garbage box is arranged on the top of the guide groove and a larger area of the filtering net, can fully improve the efficiency of dust removal, so that garbage piles evenly, increase effective capacity, reduced due to a blocked filter and the air resistance.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of sweeper truck in China. With many years' development, Chengli Special Automobile Co., Ltd. could offer dongfeng brand small road sweeper truck, ISUZU road sweeper, JAC brand street sweeper, JMC road cleaning truck, FAW brand road sweeping vehicle, Forland road sweeper truck, etc. More information, please feel free to contact with Ms. Anita.
main technical parameters of Forland 4*2 RHD road sweeping vehicle manufactured by Chengli Special Automobile Co., Ltd. as below
| 1 main parameters | ||||
| Product name | Forland RHD 4*2 road sweeper truck | Remark | ||
| Chassis model | BJ1073VEJEA-A | |||
| Wheelbase | 3360mm | |||
| Front/rear suspension | 1130/1365(mm) | |||
| Engine model | Truck chassis engine | 4DW91-63NG2 | ||
| Auxiliary engine | JX493-G3 | |||
| Output power | Truck chassis engine power | 98hp | ||
| Auxiliary engine power | 57 KW | |||
| Max Gradient | 30% | |||
| Emission standard | Euro Ⅲ | |||
| Outside-automobile noisy in the accelerating | ≤84dB(A), meeting the noisy of Second stage requirements | |||
| Max speed | 95 km/h | |||
| Approach angle | 21 | |||
| Departure angle | 16 | |||
| Weight | Curb weight | 5340 kg | ||
| Max total weight | 7360kg | |||
| Dimension | Overall dimension(L×W×H) | 5895×1915×2280mm | ||
| Mini ground clearance | 240mm | |||
| Sucking and sweeping working | Sweeping efficiency | ≥95% | ||
| Max sucking granularity | 120mm | |||
| Sucking-sweeping width | 2.8-3.0 m | |||
| Max sweeping ability | 60000 m2/h | |||
| Extension dimension of dish brush | ≥400 mm | |||
| Sucking disk driving speed | 3-20km/h | |||
| Tanker | Water tank volume | 1.0-1.5m³ | ||
| Material | Stainless steel | |||
| Wastes van | Wastes van loading capacity | 3.5-4.0m³ | ||
| Open angle of the discharging door | ≥45° | |||
| Material | Stainless steel | |||
| Hydraulic system | Type | Open-type, electronic-control | ||
| Main units | Gear pump, hydraulic motor, hydraulic cylinders, solenoid valve, | |||
| System pressure | 16MPa | |||
| Hydraulic oil tank volume | 60L | |||
| Oil temperature | 60 ˚C | |||
| Electronic | Type | DC24V | ||
| voltage | 24V | |||
| Storage battery | 24V(2 sets of 12V in series) | |||
| Water sprinkling system | Main units | Electronic diaphragm pump, water filter, nozzles, | ||
| Sweeping disks device | Type |
4 sets of sweeping disks middle-installed driving by hydraulic motor; The right-front one can work separately, with the function of dodge and repeat working |
||
| Diameter | 850mm | |||
| Angle | ante version:4-6 °; extroversion: 4-7° | |||
| Sucking disk | Tyre | Single sucking, hydraulic-control, spring s | ||
| Sucking diameter | 200mm | |||
| Other device | Rear part | With LED arrow indication light | ||
More pictures of Forland 4*2 RHD street sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below

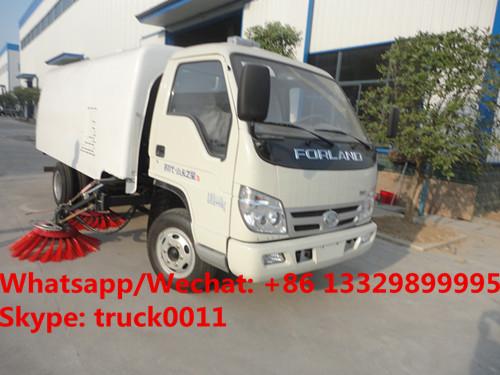

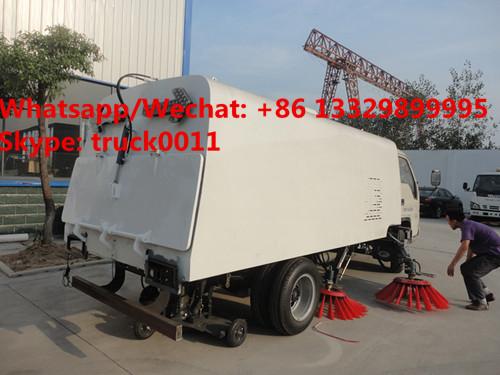

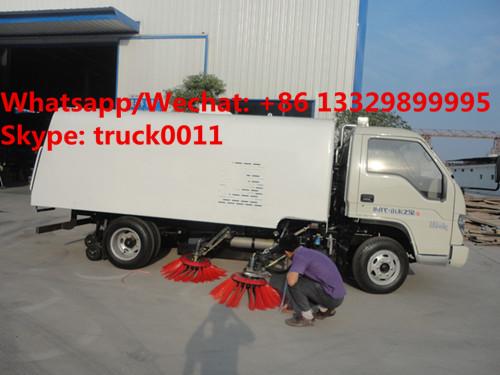

high quality and competitive price forland 4*2 RHD road sweeping truck for sale

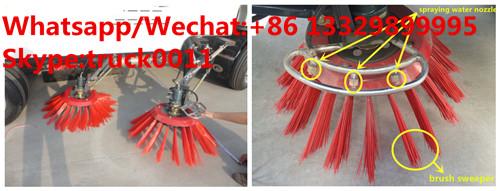

high quality road sweeping brushes for sale
More information, please feel free to contact with Ms. Anita.
