Dongfeng Tianjin garbage compactor truck 6 wheels compressed garbage truck 8 tons capacity garbage trucks for sale
Dongfeng Tianjin garbage compactor truck 6 wheels compressed garbage truck 8 tons capacity garbage trucks for sale
The compressed garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck,compactor garbage truck,etc.
The compress garbage truck usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.
As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 20cbm.
Operation way of compacted garbage truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1, PLC control system;
2, loading and discharging way: rear loading wastes bins mechanism;
3, compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; 4, one working circle time for loading and discharging ≤30s;
5, max compressing force≥150KN; max passing force≥180KN.
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com
Email: truck0011@163.com
QQ: 504873236

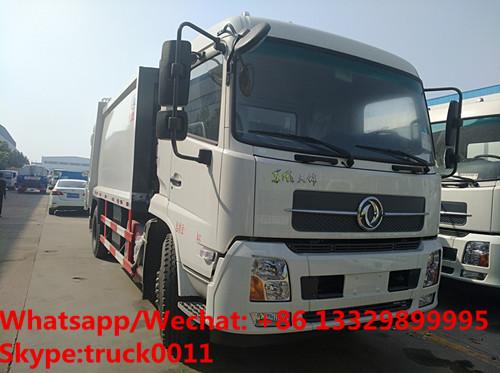

More pictures of CLW brand dongfeng 10-14m3 refuse garbage truck manufactured by Chengli Special Automobile Co., Ltd. as below
high quality and competitive price dongfeng 10-14m3 refuse garbage truck for sale
Factory sale best price Dongfeng 10tons compression garbage truck
Main technical parameters of dongfeng tianjin 12m3-14m3 garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| 1 | Product name | Dongfeng 4*2 RHD 12m3/14m3 compacted garbage truck for sale |
| 2 | Overall dimension(L*W*H) | 8700*2500*3300mm |
| 3 | Total mass | 16000kgs |
| 4 | Curb mass | 9470kgs |
| 5 | Rated mass | 6335kgs |
| 6 7 |
Truck chassis | DFL |
| 8 | Engine model | B190 33 |
| 9 | Engine power/displacement | 140KW/5900cc |
| 10 | Oil consumption | 18L/100km |
| 11 | Max speed | 90kw/h |
| 12 | mini turning diameter | 18m |
| 13 | Max gradability | 25﹪ |
| 14 | wheelbase | 4500/4700(mm) |
| 15 | Volume | 12/14m3 |
| 16 | Tire specification | 10.00R20 tires |
| 17 | Gearbox | 8 speed gearbox |
| 18 | Air conditioner | Yes |
| 19 | Fuel type | Diesel |
| 20 | Wastes hopper lifting angle | ≥45° |
| 21 | Loading and discharging way | Overturning hopper/wastes bins mechanism |
| 22 | Compacting way | Bi-directional compression, wastes compacting density≥0.8tons/m3 |
| 23 | One working circle time for loading(s) | ≤22 |
| 24 | One working circle time for discharging(s) | ≤30 |
| 25 | Overall dimension(L*W*H) | 8700*2500*3300mm |
| 26 | Max compressing force | ≥150KN |
| 27 | max pushing force | ≥180KN |
