high quality and good price Dongfeng 8tons telescopic boom mounted on cargo truck for sale, truck with telescopic crane
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
Dongfeng fang tianjin truck with crane, truck model: CLW5160JSQD4; chassis model: :DFL1160BX5 dongfeng fang Tianjin truck chassis manufactured by Chengli Group; wheelbase: 5000mm, Cummins 210hp China National Ⅲ diesel engine, big 8 speed gearbox, power steering, air cut brake, 5tons front axle/10tons rear axle, without air conditioner.
The cargo van dimension of the truck with crane: 6100*2400*600mm, adopts China standard carbon steel; installed with CLW brand 8tons 4 sections telescopic crane boom(model: SQ8SA3), working radius: 12.98m, lifting height: 14.6m, outrigger span: 5.4m, without rear outriggers.

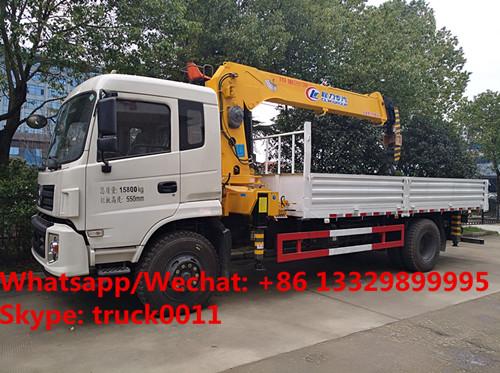

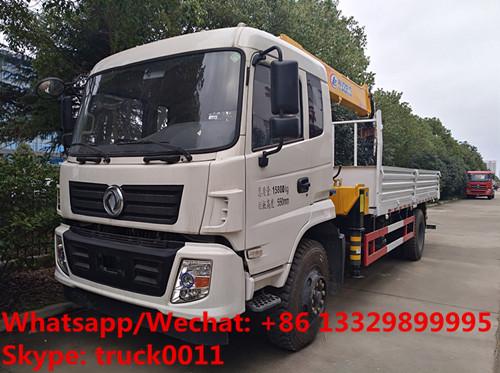

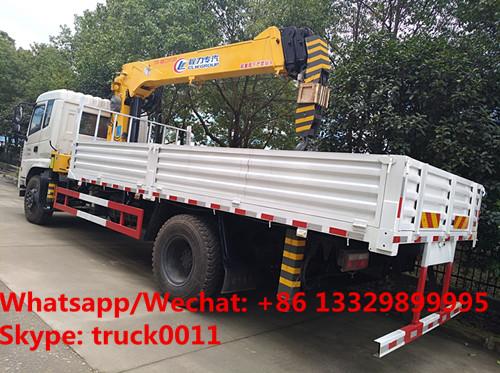

More pictures of dongfeng tianjin 8tons telescopic crane mounted on truck manufactured by Chengli Special Automobile Co.,Ltd. as below.
high quality and competitive price dongfeng 8tons telescopic boom mounted on truck for sale
HOT SALE! dongfeng 8tons cargo truck with crane
Main technical parameters of dongfeng 8tons telescopic boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Main parameters | ||
| Product name | Dongfeng 4*2 LHD 8tons telescopic truck crane | |
| Overall dimension | Overall dimensions | 9400×2500×3790 |
| Fact Lifting | 8,000kg | |
| Gross weight | 16,000kg | |
| Curb weight | 8305kg | |
| Payload capacity | 7500kg | |
| Axle load | 6000/10000 | |
| Axle nos. | 2 | |
| Driving type | 4*2 LHD, RHD is selective | |
| Electronic system | 24V | |
| Tyre specification | 10.00-20 | |
| Nos. of tyre | 6+1 | |
| Wheelbase | 5000mm | |
| Front/Rear track base | 1800/1860(mm) | |
| Front/Rear overhang | 1430/2570mm | |
| Approach/Departure angle | 20/13° | |
| Cargo body | Cargo Box dimensions | 6100*2400*600mm |
| Material | High quality carbon steel | |
| Rear door | Open, choose to install rear door tipping | |
| Color | Upon request-yellow | |
| Engine | Exhaust/Power | 5900ml/210hp |
| Rated power | 155KW | |
| Engine model | B210 33 | |
| Emission standard | Euro 3 | |
| Engine type | 6 cylinders in line, inter-cooling diesel engine | |
| Manufacturer | Dongfeng Cummins | |
Basic configuration |
Gearbox | Big 8 speed gearbox |
| Air cut brake | Yes | |
| Air conditioner | No, choose to install | |
| Power steering | Yes | |
| Front/rear axle | 5tons/10tons | |
| Max speed | 80km/h | |
| Telescopic boom | Boom name | CLW Brand 8tons 4 sections telescopic boom(model: SQ8SA3) |
| Max lifting mass | 8,000kg | |
| Installation room | 1050mm | |
| Boom type | Pentagon type 4 sections | |
| Rotation degree | 360 °full rotation | |
| Max Outriggers span | 5.4m | |
| Working radius | 14.6m | |
| Lifting height | 12.98m | |
| Outriggers | Choose to install double front outriggers | |
| Working ability | Working radius | Lifting mass |
| 2.5m | 8,000kgs | |
| 3m | 7,267kg | |
| 4m | 5200kg | |
| 5m | 4000kg | |
| 6m | 3200kgs | |
| 7m | 2600kgs | |
| 8m | 2100kgs | |
| 8.5m | 1853kgs | |
| 9m | 1622kgs | |
| 9.5m | 1400kgs | |
| 10m | 1350kgs | |
| 10.5m | 1280kgs | |
| 11m | 1100kgs | |
| 11.4m | 1000kgs |
|
Chengli Special Autmobile is the leading manufacturer and supplier of truck with crane in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply cargo truck with crane, dump truck mounted crane, crane truck, etc. More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
