high quality China JAC 4*2 LHD diesel 5m3 garbage compactor truck for sale, refuse garbage compacted truck for sale
2020s high quality China JAC brand 4*2 LHD diesel 5m3 garbage compactor truck for sale,
The compression bucket volume of JAC compacted garbage truck is 5cbm, with changeover mechanism, adopting electromechanical integration technology solution, with the help of automatic control system and manual control system of electromechanical integration, through some special devices, such as carriage, precompressor and push shovel, realizing garbage disposed, crushed or crushed, strong draw, forced the garbage into the garbage bucket, and compacted and shirked.
Control way of the garbage compactor truck manufactured by Chengli Special AUtomobile Co., Ltd. as below:
PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
The main advantages: collecting wastes easily, high effect, automatic repeat compacting garbage and peristaltic compression. High compression ratio, large loading, automatic working, powerful, environmental protection, the garbage buckets are common.
If you're interested in our wastes collecting vehicle, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

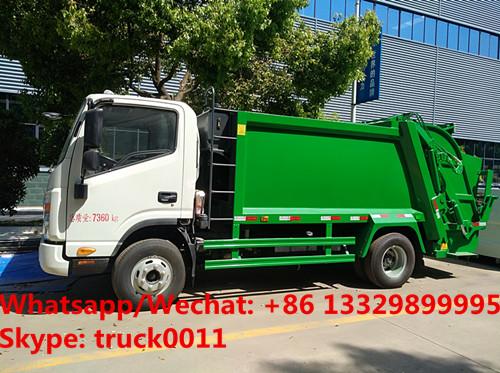

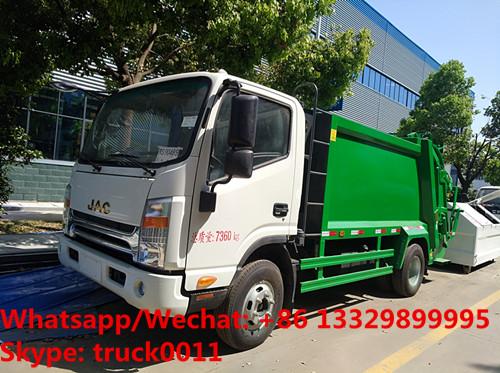

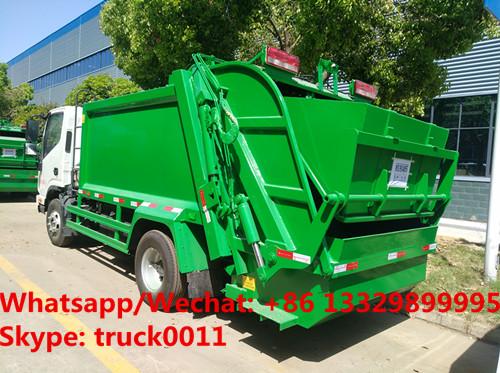

More pictures of JAC brand 4*2 LHD 5m3 garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
High quality and competitive price JAC brand 5m3 refuse garbage truck for sale
customized JAC brand 4*2 LHD 5m3 garbage compactor truck with rear loading container for sale
Main technical parameters of JAC brand 5m3 garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below
| 1 | Product name |
JAC 4*2 LHD 5m3 garbage compactor truck for sale (CLW5070ZYSH5) |
| 2 | Truck chassis model |
EQ1060 |
| 3 | Overall dimension(L*W*H) |
6535,6335×2050×2550 |
| 4 | Total mass(kgs) | 7360 |
| 5 | Curb mass(kgs) | 5190 |
| 6 | Rated mass(kgs) | 2040 |
| 7 | Volume | 5m3 |
| 8 | Real loading capacity | About 4tons |
| 9 | Max speed | 90kw/h |
| 10 | Wheelbase | 3308 |
| 11 | Axle nos. | 2 |
| 12 | Driver cab | JAC 4*2 single row driver cab with 2 seats with power steering and without air conditioner. Air conditioner is selective |
| 13 | Approach/departure angle(°) | 19/20 |
| 14 | Front/rear suspension (mm) | 1032/2138 |
| 15 | Front/rear tread(mm) | 1506/1466 |
| 16 | Tire specification | 7.00R16*6 |
| 17 | Spring | 27/20 |
| 18 | Engine model | HFC4DF1-2D2 Jianghuai chaochai diesel engine |
| 19 | Rated power | 86KW/117hp |
| 20 | Displacement(ml) | 2544ml |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 5 |
| 23 | Gearbox | 5 speed gearbox, manual |
| 24 | rear axle | 4tons |
| 25 | Color | Different color upon request |
| 26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 27 | Wastes van material | High quality China standard light duty steel |
| 28 | Operation way | PLC control way |
| 29 | Loading and discharging way | Rear overturning mechanism |
| 30 | Compacted way | Bi-directional compression |
| 31 | Wastes compacting density | ≥0.8tons/m3 |
| 32 | One working circle time for loading and discharging | ≤30s |
| 33 | Max compressing force | ≥150KN |
| 34 | Max passing force | ≥180KN |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of garbage trucks, such as garbage compactor truck, refuse garbage truck, side loader garbage truck, swing arm garbage truck, rear loader garbage truck, hook lifter garbage truck, etc. More information, please feel free to contact with Ms. Anita Deng.
Skype: truck0011
Whatsapp/Wechat/Mob.: +86 13329899995
QQ: 504873236
