Factory sale good price Dongfeng 4*2 LHD 3.5tons telescopic boom mounted on truck, cargo truck with crane
Factory sale good price Dongfeng 4*2 LHD 3.5tons telescopic boom mounted on truck, 2018s cheaper price CLW brand 3.5tons truck with crane
Hot sale! Dongfeng 4*2 RHD/LHD3.5tons truck with crane, adopts dongfeng 4*2 RHD/LHD truck body, 3800mm wheelbase, chaochai CY4102BZQ 120hp diesel engine, 5 speed gearbox, 2.4tons front axle/4.2tons rear axle, 7.50R16 tires, air cut brake, power steering and exhaust braking, etc.
And dongfeng truck with telescopic boom adopts CLW brand 4tons telescopic crane boom, the working radius is 7.65m, the lifting height is 9.5m, and the span of the outriggers is 4.2m.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Main technical parameters of Dongfeng 3.5tons truck with crane as below
| Product name | Dongfeng duolika 3.5ton truck with crane | |
| Chassis type | EQ1110T9ADJ3AC | |
| Parameters | Overall dimension length/width/height (mm) | 7050×2420×3150,3230(mm) |
| Cargo body dimension (L*W*H)(mm) | 4300,4200×2050×550(mm) | |
| GVW(kg) | 11495(Kg) | |
| Kerb Mass(kg) | 5330,5300,5440,5470(Kg) | |
| Rated mass(kg) | 5970,6000,5860,5830(Kg) | |
| Approach angle/ Departure angle(mm) | 22/12(°) | |
| Front suspension/rear suspension(mm) | 1180/2070(mm) | |
| Fuel Type | diesel | |
| Fuel Consumption/100 km | ||
| Max Speed | 90 | |
| Engine | Type | CY4102-E3C; B140 33 |
| Displacement/Power(kw) | 3856ml/91KW/120hp; 3900ml/103KW/140hp | |
| Manufacturer | Chaochai engine; Dongfeng Cummins Engine Co.,Ltd | |
| Type | 4-in-line inter-cooling; | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 3800 | |
| Tread(front/rear) | 1831,1750 | |
| Front axle | 2.4Ton | |
| Rear axle | 4.2 Ton | |
| Transmission | 5 forward gear,1 reverse gear, mechanical transmission | |
| Braking system | Air braking | |
| Cab | Single row driver cab | |
| Number of spring axle(front/rear) | 11/9+7 | |
| Tire Type | 8.25-16 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 4300,4200×2050×550(mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install 3.5ton telescopic boom and 3.2ton knuckle boom | |

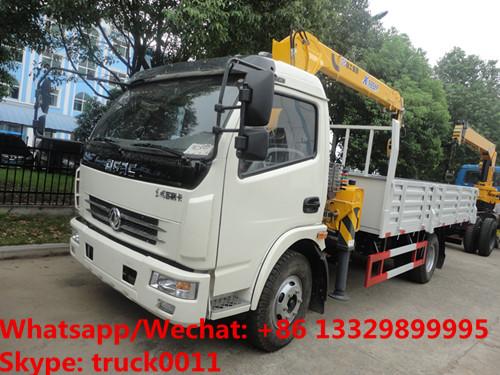

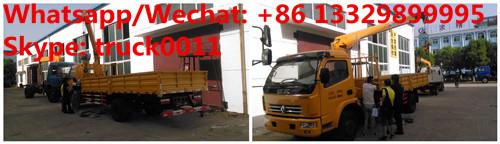

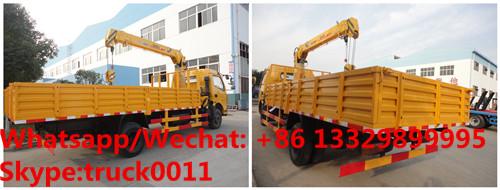

More pictures of Dongfeng 4*2 LHD diesel truck with crane as below
High quality and competitive price Dongfeng truck with crane for sale
Factory sale best price Dongfeng 3.5tons telescopic boom mounted on truck
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc.More information, please contact with Ms. Anita.
Website: www.truckdf.com
Skype: truck0011
Whatsapp/Wechat/Mob.: +86 13329899995
