customized Dongfeng 4*2 RHD 10,000Liters vacuum tank truck for sale, Factory sale cheaper price sewage suction truck
customized Dongfeng 4*2 RHD 10,000Liters vacuum tank truck for sale, Factory sale cheaper price sewage suction truck
main technical parameters of dongfeng RHD 10cbm vacuum tank truck manufactured by Chengli Special Automobile Co., Ltd. as below
| Product name | Dongfeng Tianjin 10m3 vacuum truck |
| Driving type | 4*2 RHD, LHD is selective |
| Driver cab | Dongfeng Tianjin 4*2 RHD one row and a half luxurious driver cab with original air conditioner |
| Gearbox | Dongfeng 6 speed transmission |
| Wheelbase(mm) | 4700mm |
| Gross Vehicle Weight(Kg) | 16000 |
| Curb Weight(Kg) | 8805 |
| Max speed(km/h) | 85 |
| Engine model | B170 33/B190 33 |
| Engine displacement (ml) | 5900ml |
| Engine Rated power | 125KW/140KW |
| Fuel type | Diesel |
| Emission standard | Euro 3 |
| Vacuum Tank volume | 8-10m3 |
| Tank Material | Carbon Steel |
| Tank Thickness(mm) | 5 |
| Tank Shape | Cylindrica |
The main parameters of vacuum pump for sludge tank trucks manufactured by Chengli Special Automobile Co., Ltd.
| Vacuum pump model | XD-44(double pump) |
| Vacuum pump blade | Silicium steel centrifugal casting blade |
| Blace thickness | ≥30mm |
| Suitable rotational speed | 500-600 revolutions/min |
| Max vacuum degree | 93-96kilopascal |
| Tanker volume | 10cbm |
| Vertical absorbing height | ≥7m |
|
Horizontal absorbing height
|
30m |
| Full absorbing time | ≤5min |
| Alarm type |
Swing rod electronic alarm
|
| Tanker lifting time | ≤20s |
|
Remark: this truck just use the double anti-overflow pump, avoiding overflowing better and last the lift time of the pump.
|
|

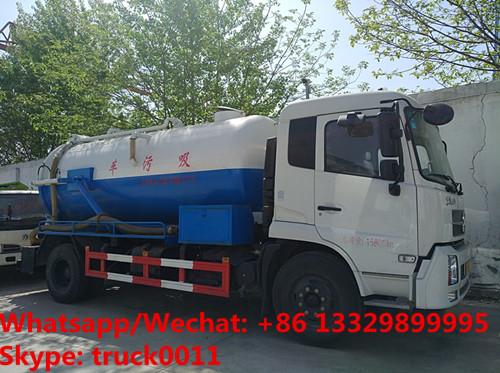

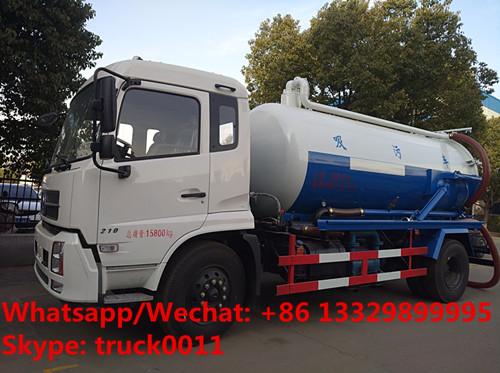

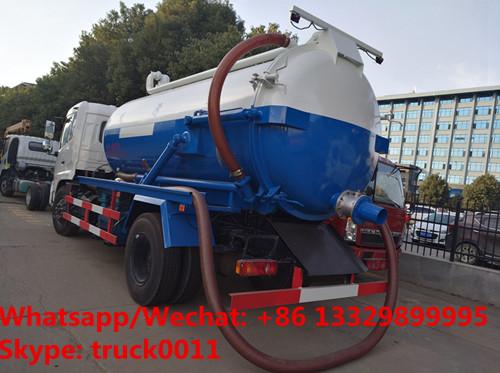

More picutres of dongfeng 10m3 vacuum tank truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Dongfeng 10m3 vacuum tank truck for sale
Factory sale good price dongfeng 4*2 LHD 10,000Liters sewage suction truck
a. the sewage suction truck belongs to the medium tonnage special purpose vehicle for wide using.
b. all the tanker materials uses 5mm thickness high quality Wugang sheets. And the capped end adopts 6mm thickness steel sheet one-formed spinning.
The tanker is just a cylinder; the capped end is a half ball shape, the protecting part of the end is about 350mm, and which can avoid tanker and the end not flat for sucking.
c.the tanker volume: 10cbm, adopting Wuagng high quality carbon steel sheets, equipping with big power special vacuum sewage suction pump. And the special parts are made up of vacuum pump, PTO, shaft, water separator, oil separator, multi-way valve, tanker, discharging valve, sewer view window, vacuum pressure gauge, pipelines, hydraulic system, etc. The rear door is operated by the hydraulic switch with self-discharging function. The outlet is shut by pneumatic controlling. The truck also equips with one 5m length hose, with hand cleaning small water tanker.
d. the main advantages and the product description: the sewage suction truck is just suitable for sucking, transport and discharging all kinds liquid or half liquid, such as sewer, septic pool, swill, slops, feces and 8mm stone).
