Dongfeng 190hp road sweeping and washing vehicle customized for Sialkot International Airport, street sweeper vehicle
new Dongfeng 153 190hp diesel road sweeping and washing vehicle customized for Sialkot International Airport in Pakistan, Street sweeping truck for sale,
The yard sweeper is also called sweeping truck , street sweeper truck, road sweeper truck,sweeper, sweeper truck, sweeper, road sweeper, etc.
As a China professional yard sweeper manufacturer, the street sweeper for sale have several types. They are roller brush sweeper, electric sweeper, vacuum road sweeping truck, manual road sweeper, sweeper truck with high pressure cleaning function.
The road sweeper truck is consisted of truck chassis, water tank, dust tank, auxiliary engine, fan, roller brushes,etc.This sweeper truck is with wide sweeping width, high efficient, manpower saved.
The tank material of sweeper truck is SUS304 stainless steel. long service time. The motor are Italy imported , the clutch and fan are all maintenance free .
This model of road sweeping truck is specially designed for airport runway since 2007s. As far as we know, the requirement of the airfield runway is so strict, smaller questions may cause airport accident. This Dongfeng 153 airport road sweeper truck can sweep all the metallic chips, etc. China airports, such as Wuhan Tianhe airport and Huangpu airport adopt dongfeng 153 airport sweeper trucks. They are very satisfied with this dongfeng 153 street sweepers. And also more and more clients around the world come to our CLW GROUP to purchase our high quality and competitive price road sweeper trucks.
And the dust tank and water tank of dongfeng road sweeping and washing truck adopts high quality stainless steel material, the volume of the water tank is 9m3; and the volume of the dust tank is 7m3.
If you're interested in our road sweeper truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com

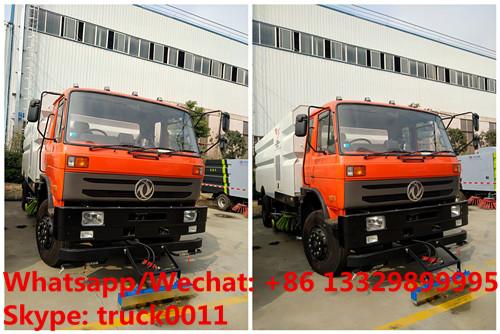

More pictures of customized dongfeng RHD road sweeping and washing truck for International airport as below
high quality and competitive price dongfeng RHD road sweeping and washing truck for sale

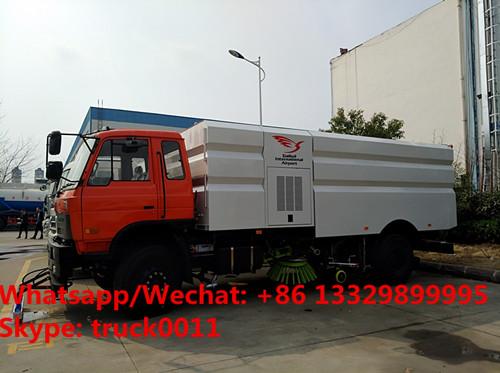

customized Dongfeng RHD street sweeping and washing truck

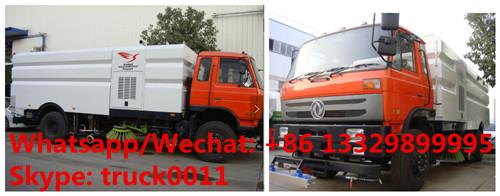

Customized road sweeping and washing truck for airport

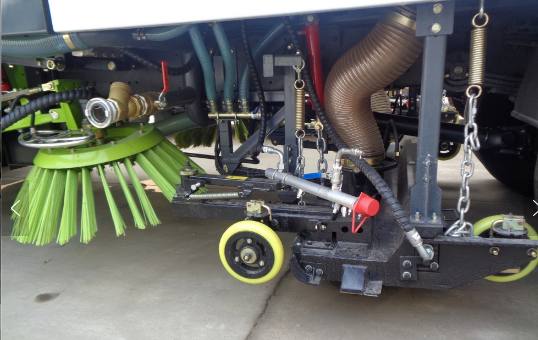

high quality and competitive price CLWbrand sweeping and spraying devices for road sweeping and washing truck
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
main technical parameters of dongfeng 4*2 RHD road sweeeping and washing truck customized for sialkot International Airport
| Vehicle model | Dongfeng 153 road washing and sweeping vehicle for sale | remark | |||
|---|---|---|---|---|---|
| Truck chassis model | EQ1141 | ||||
| Wheelbase | 4500mm/4700mm | ||||
| Front/rear suspension | 1430/2150 mm | ||||
| Engine model | Chassis engine | B190 33 | |||
| Secondarry engine | B170 | ||||
| Rated power | Chassis engine | 140KW | |||
| Secondary engine | 125 kW | ||||
| Max gradient | 30% | ||||
| mini turning diameter | ≤16m | ||||
| Displacement(ml) | Euro 3/4/5 | ||||
| Max speed | 90 km/h | ||||
| Approach/departure angle | 20° | ||||
| Appraoch/departure angle | 13° | ||||
| Braking distance | ≤10m | ||||
| Mass | Curb mass | 11350 kg | |||
| Total mass | 16000kg | ||||
| Dismension | Overall dimension(L*W*H) | 8280,7980×2490×3100mm | |||
| Mini ground clearance | 230mm | ||||
| High pressure cleaning | Washing speed | 3~20Km/h | |||
| Washing widht | 3.5m | ||||
| Pressure of washing water | 10MPa | ||||
| Flow of water pump | 154L/min | ||||
| Sucking & sweeping | Sweeping effiency | ≥95% | |||
| Max sucking granularity | 110mm | ||||
| Sucking & sweeping width | 3.5m | ||||
| Max sweeping ability | 70000 m³/h | ||||
| Overhang of the disc brush | ≥400mm | ||||
| driving speed of washing& sweeping | 3-20km/h | ||||
| Water tank | Volume | 9m³ | |||
| Dust tank | Volume | 7 m³ | |||
| Open angle of the discharging door | ≥45° | ||||
| Hydraulic system | Type | Open-type, electric control | |||
| Main units |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
||||
| Pressure | 16MPa | ||||
| Hydraulic oil tank volume | 60L | ||||
| Oil temperature | 60 ˚C | ||||
| Electric system | Model | DC24V,PLC Programming control system | |||
| Volts | 24V | ||||
| Storage batteries | 24V | ||||
| High pressure water system | Type |
plunger pump |
|||
| Model | German PF36 | ||||
| Pressure | 10MPa | ||||
| Rotational speed | 1150r/min | ||||
| Water vavle type | Hydraulic controlled high pressure ball valve | ||||
| Water valve pressure | 7MPa | ||||
| sprayers type | High pressure washing type | ||||
| Water filter | filter | ||||
| Water spraying system | Main units | electric diaphragm pump,water filter, sprayer, etc. | |||
| Sweeping disk system | Type | Middle-installed 2 sweeping disks, hydraulic motor driving, adjustable ratational speed, independently control, automatic collision avoidance function | |||
| Diameter | 850mm | ||||
| Speed | high:110 middle:80 low:50 | ||||
| Sucking disck | Type | Double sucking open, hydraulic control, spring suspension | |||
| Sucking opening diameter | 180mm | ||||
| side spraying rod | V model spraying rod with the function of automatic collision avoidance | ||||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper trucks in China. With many years’ development, we Chengli Special Automobile Co., Ltd. could offer ISUZU road sweeper truck, forland street sweeper truck, dongfeng brand road cleaning vehicle, JMC brand road sweeping vehicle, JAC brand street sweeper, FAW brand street sweeping vehicle, etc. More information, please feel free to contact with Ms. Anita
