customized YIQI FAW brand 4*2 RHD diesel road sweeping truck for sale, Factory wholesale price street sweeper
FAW brand 4*2 RHD diesel road sweeping truck for sale, Factory good price wholesale price street sweeper
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper trucks in China. With many years’ development, we Chengli Special Automobile Co., Ltd. could offer ISUZU road sweeper truck, forland street sweeper truck, dongfeng brand road cleaning vehicle, JMC brand road sweeping vehicle, JAC brand street sweeper, FAW brand street sweeping vehicle, etc. More information, please feel free to contact with Ms. Anita.
The road sweeper trucks manufactured by Chengli Special Automobile Co., Ltd. are with 4 sets of sweeping brushes, Cummins auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, etc. The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc.customized FAW bigger RHD road sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below

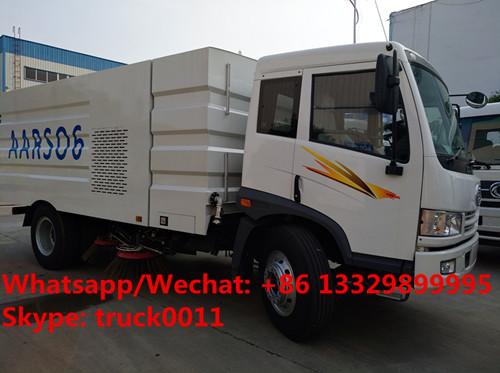

More pictures of FAW brand 4*2 RHD road sweeping vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
High quality and competitive price FAW brand road sweeper truck for sale
Customized CLW brand street sweeping vehicle for sale
HOT SALE! FAW brand z4*2 LHD street sweeper truck
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
QQ: 504873236
Main techncial parameters of FAW RHD street sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| 1 main parameters | ||||
| Product name | FAW brand 4*2 RHD road sweeper truck for sale | Remark | ||
| Chassis model | CA | |||
| Wheelbase | 5000mm | |||
| Front/rear suspension | 1400/2000 (mm) | |||
| Engine model | Truck chassis engine | BF6M2012-22E4 BF6M2012-20E4 BF6M2012-18E4 |
||
| Auxiliary engine | B140 | |||
| Output power | Truck chassis engine power | 165 150 139 |
||
| Auxiliary engine power | 103KW/140hp | |||
| Max Gradient | 30% | |||
| Emission standard | Euro 3/4/5 | |||
| Outside-automobile noisy in the accelerating | ≤84dB(A), meeting the noisy of Second stage requirements | |||
| Max speed | 101km/h | |||
| Approach angle | 22 | |||
| Departure angle | 9 | |||
| Weight | Curb weight | 11280 kg | ||
| Max total weight | 16000kg | |||
| Dimension | Overall dimension(L×W×H) | 8400×2470×3000 | ||
| Mini ground clearance | 540mm | |||
| Sucking and sweeping working | Sweeping efficiency | ≥95% | ||
| Max sucking granularity | 120mm | |||
| Sucking-sweeping width | 3.5 m | |||
| Max sweeping ability | 60000 m2/h | |||
| Extension dimension of dish brush | ≥400 mm | |||
| Sucking disk driving speed | 3-20km/h | |||
| Tanker | Water tank volume | 5-6m³ | ||
| Material | Stainless steel | |||
| Wastes van | Wastes van loading capacity | 8-9m³ | ||
| Open angle of the discharging door | ≥45° | |||
| Material | Stainless steel | |||
| Hydraulic system | Type | Open-type, electronic-control | ||
| Main units | Gear pump, hydraulic motor, hydraulic cylinders, solenoid valve, | |||
| System pressure | 16MPa | |||
| Hydraulic oil tank volume | 60L | |||
| Oil temperature | 60 ˚C | |||
| Electronic | Type | DC24V | ||
| voltage | 24V | |||
| Storage battery | 24V(2 sets of 12V in series) | |||
| Water sprinkling system | Main units | Electronic diaphragm pump, water filter, nozzles, | ||
| Sweeping disks device | Type | 4 sets of sweeping disks middle-installed driving by hydraulic motor; The right-front one can work separately, with the function of dodge and repeat working |
||
| Diameter | 850mm | |||
| Angle | ante version:4-6 °; extroversion: 4-7° | |||
| Sucking disk | Tyre | Single sucking, hydraulic-control, spring s | ||
| Sucking diameter | 200mm | |||
| Other device | Rear part | With LED arrow indication light | ||
| Item | Name | Nos. | Remark |
| 1 | fire fighting hose | 1 | For adding water |
| 2 | fire fighting wrench | 1 | For disassembling fire hydrant |
| 3 | Manual rocker for hydraulic pump | 1 | For manual starting the hydraulic pump |
| 4 | Spare tyre(with the truck) | 1 |
| Item | Name | Nos. | |
| 1 | Brushing | 80 | |
| 2 | weather-strip of fan | 1 | |
| 3 | weather-strip of rear door | 1 |
| Items | Name | Model | Country |
| 1 | Hydraulic motor | BMR125 | Item |
| 2 | Hydraulic valve | SWH-G02-C4-D2H | Taiwan |
