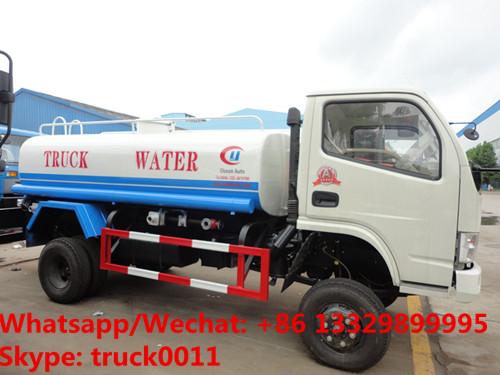

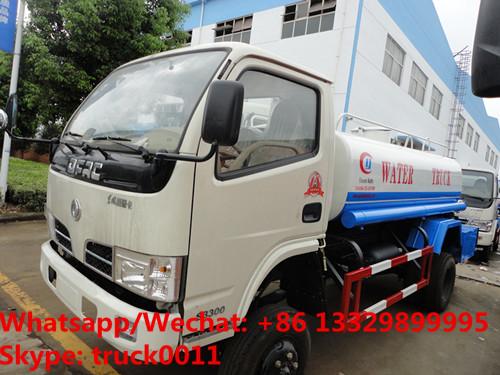

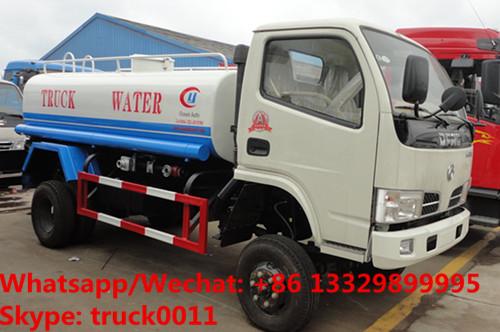

HOT SALE! best selling CLW Brand 4*2 RHD 5cbm water tank truck, Factory sale best price 5,000Liters cistern tank truck
Water truck is also called spray truck, multifunction watering truck, landscaping watering truck, water tanker, water wagon etc., widely used in road rinsing, landscaping etc., It possess multi features such as watering, dust suppression, spraying pesticide, cleaning rail, drain, carrying water, emergency fire fighting, etc.
Main technical parmameters of CLW Brand 4*2 RHD 5cbm water tank truck manufactured by Chengli Special Automobile Co., Ltd. as below
| CLW brand 4*2 RHD 5000Liters water tank truck for sale | |||
| Item | Name | Model | Manufacturer |
| 1 | Chassis | EQ1060 | Dongfeng Automobiles |
| 2 | Engine | CY4102 | Chaochai |
| 3 | Emission standard | Euro Ⅲ | |
| 4 | Engine Power (kw) | 70KW/95hp diesel | |
| 5 | Engine displacement(ml) | 3856 | |
| 6 | Transmission | 5 speed transmission | |
| 7 | Braking | Air brake | |
| 8 | Wheelbase (mm)/axle nos. | 3300/2 | |
| 9 | Axle load(kgs) | 2620/3875 | |
| 10 | Overall dimension(mm) | 5995*2000*2380 | |
| 11 | Tyre specification | 7.00-16*6 | |
| 12 | Steel spring | 8/9+5 | |
| 13 | Approach/departure angle | 17/13 | |
| 14 | Front/rear suspension(mm) | 1032/1658 | |
| 15 | Front/rear tread(mm) | 1506/1466 | |
| 16 | Max speed(km/h) | 90 | |
| 17 | Driver cab | Dongfeng RHD flathead single row driver cab with 2-3 seats | |
| 18 | Water pump | CLW water pump | |
| 19 | PTO | Water truck special water PTO | |
| 20 | Front flushing. Rear sprinkling, side spraying | Yes | |
| 21 | Water cannon | Yes | |
| 22 | With rear working platform, vertical suction distance>7m, water sprinkling width>14m, water range>28m, with fire hose coupling, etc. | ||
| 23 | Tanker material | Q235B(carbon steel) | |
| 24 | Thickness (mm) | 4 | |
| 25 | Tank volume(Liters) | 5,000Liters | |
| 26 | Total mass(kg) | 6495 | |
| 27 | Rated mass (kg) | 3250 | |
| 28 | Curb mass(kg) | 3050 | |
| 29 | Painting | Metallic coating | |
The quality and functions of water trucks
Front spraying: fitted with 360° rotatable straight nozzles controlled by driver cab. The flush width can reach ＞15m.
Rear sprinkling, fitted with 2 rear spraying devices, mainly used to clean the road, make the road clear. When spraying as fan-shaped, the spraying width can reach ＞25m.
High spraying: working platform equipped with water cannon, the spraying range can reach 28m, the water cannon can adjust to heavy rain, moderate rain, drizzle or mist, etc. mainly used for landscaping greening, also sued as fire truck in urgency.
Side sprinkling: install 2 side spraying nozzles behind the truck, mainly used to spray, water, dedusting of the greening, etc.
Self-sucking: install with 2 suction sleeves, one absorber,
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of water tank truck, water tank, water sprinkling truck and portable water truck, etc. in China since 2004s. With many years' experience in manufacturing, Chengli Special Automobile Co., Ltd. could supply 4*2 water truck, 4*4 water tank, 6*4 water truck, 8*4 water tank, 6*6 water tank, etc. And the water trucks brands includes dongfeng water truck, ISUZU water truck, FAW water tank, Foton water truck, Forland mini water truck, Yuejin water truck, HOWO water truck, North Benz water truck, etc. More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/Wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
