new FAW brand 4*2 RHD yuchai 130hp diesel road sweeping and washing vehicles for sale, street washing sweeper truck
new customized FAW brand 4*2 RHD yuchai 130hp diesel road sweeping and washing vehicles for sale, hot sale street washing sweeper

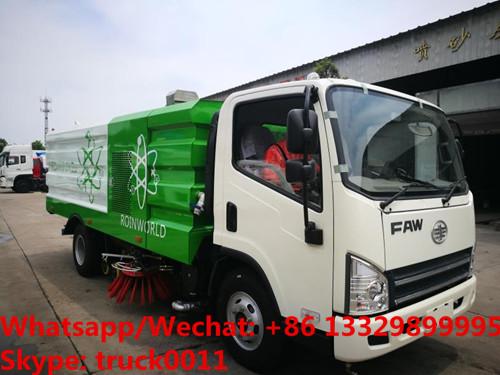

FAW brand 4*2 RHD yuchai 130hp diesel road sweeping and washing vehicles are finished, which customized for ROINWORLD Company from Bangladesh. More pictures of finished FAW brand 4*2 RHD 130hp diesel road sweeping and washing trucks as below
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper trucks in China. With many years’ development, we Chengli Special Automobile Co., Ltd. could offer ISUZU road sweeper truck, forland street sweeper truck, dongfeng brand road cleaning vehicle, JMC brand road sweeping vehicle, JAC brand street sweeper, FAW brand street sweeping vehicle, etc. More information, please feel free to contact with Ms. Anita.

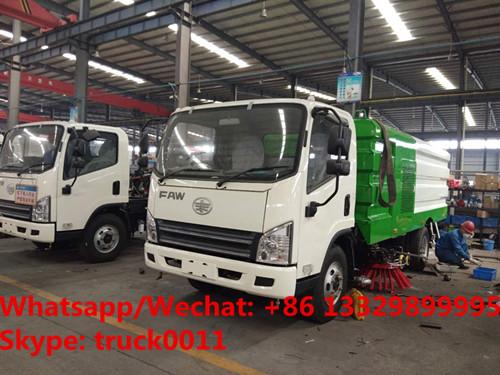

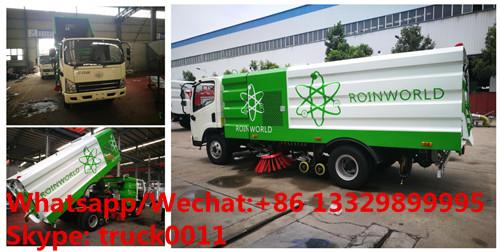

More pictures of FAW 130hp RHD road washing and sweeping truck manufactured by Chengli Special Automobile Co., Ltd. as below.
High quality and competitive price FAW RHD road sweeping truck for sale
Customized FAW brand 4*2 RHD street sweeping and washing vehicle for sale
Factory sale good price FAW brand road washing sweeper truck for sale
More information, please contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
QQ: 504873236
main technical parameters of FAW brand RHD road sweeping vehicle as below
| Item | Main parameters | ||
| Truck name | FAW brand 4*2 RHD road sweeping and washing truck for sale | ||
| Truck chassis | CA1083P40K2L1EYA84 | ||
| Emission standard | Euro 3 | ||
| Engine | Main engine | Truck engine model and manufacturer | YC4D130-33 Yuchai diesel engine |
| Power (kw) | 96 | ||
| Horsepower (ps) | 130 | ||
| Displacement (ml) | 4214 | ||
| Auxiliary engine | Auxiliary engine Model | JX493 Jiangxi wushiling diesel engine |
|
| Rated power (kw) | 102 | ||
| Horsepower (ps) | 140 | ||
| Displacement(ml) | 3200 | ||
| Fuel type | Diesel | ||
| Basic parameters | Overall dimension(L*W*H)(mm) | 7000*2180*2500 | |
| Wheelbase (mm) | 3860 | ||
| Tires specification | 8.25R16 | ||
| Tires nos. | 7(6+1) | ||
| tread | Front (mm) | 1634 | |
| Rear (mm) | 1590 | ||
| seated person | 3 | ||
| Front/rear suspension(mm) | 1150/1800 | ||
| Approach angle | 22 | ||
| Departure angle | 20 | ||
| Mini Ground clearance (mm) | 200 | ||
| Rated mass(kg) | 4210 | ||
| Curb mass(kg) | 7045 | ||
| Max total mass(kg) | 11450 | ||
Special devices |
Wastes van volume( m3 ) | 4(stainless steel) | ||
| Water tank volume( m3 ) | 4(stainless steel) | |||
| sweeping width(mm) | 2800-3200 | |||
| sweeping speed(km/h) | 3-15 | |||
| Cleaning speed(km/h) | 15-20 | |||
| max sweeping ability(m2/h) | 48000 | |||
| Sucking capacity | density(g/cm3) | 2.0 | ||
| Mass (kg) | 1.5 | |||
| Sucking granularity (mm) | ≥100 | |||
| Garbage tank dump corner | ≥45° | |||
| Cleaning efficiency | ≥96% | |||
| Dust system | Water-spraying | Low-pressure spraying | ||
| Main components | Germany imported high pressure pump, water filter, pipelines, stainless steel spray racks, high pressure nozzles, etc. | |||
| High pressure water pump | Germany imported | |||
| Installation position | Cleaning and dedusting | Front Left-right sweeping disks | ||
| Sucking and dedusting | Suction cup inside the suction port |
|||
| Control type | Electronic control, one-button operat |
|||
