Customized forland 4*2 LHD mini 34.5KW diesel street sweeping vehicle for sale,road cleaning sweeping vehicle for sale
Customized forland 4*2 LHD mini 34.5KW diesel street sweeping vehicle for sale, High quality and best price Forland 3.2m3 road sweeper for sale,
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper trucks in China. With many years’ development, we Chengli Special Automobile Co., Ltd. could offer ISUZU road sweeper truck, forland street sweeper truck, dongfeng brand road cleaning vehicle, JMC brand road sweeping vehicle, JAC brand street sweeper, FAW brand street sweeping vehicle, etc. More information, please feel free to contact with Ms. Anita. The hot sale is 0086 13886878855.
The road sweeper truck is installed with middle 4pcs cleaning brushes, and rear part with suction mouth, so the truck cleaning effect is good and the truck water tanker and garbage box made by SS340 stainless steel. Garbage box and the water tank is an integral structure, water tank in the dustbin garbage box bottom plate bottom pretilt angle up to 12°, easy to dump clean.Garbage box is arranged on the top of the guide groove and a larger area of the filtering net, can fully improve the efficiency of dust removal, so that garbage piles evenly, increase effective capacity, reduced due to a blocked filter and the air resistance.
If you're interested in our forland mini diesel road sweeper truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com
The main upper parts of forland 4*2 LHD mini diesel road sweeping vehicle as below
4sets * road sweeping brushes; LN auxiliary engine; DALI motor; Schneider control switches; Taiwan solenoid valve groups; Maintenance-free self-detaching clutch; Maintenance-free fan; stainless steel water tank + stainless steel dust tank; Tail LED arrow light； Manual pump emergency system；Brush arm rotation mechanism with high-tech wear-resistant engineering spacer; butter-free; Precision cold bending seamless hydraulic hose.
More pictures of forland 4*2 LHD road sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.

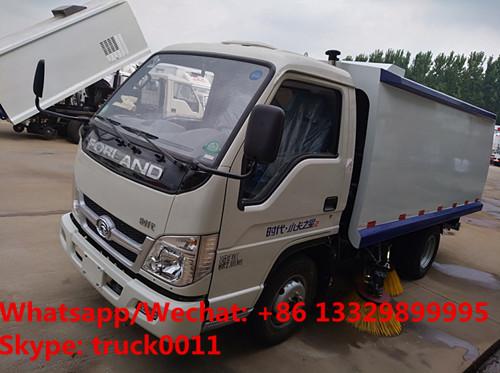

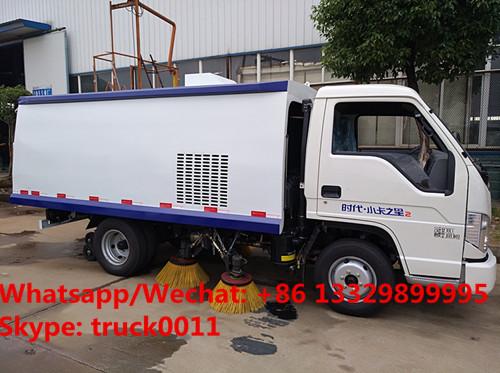

high quality and competitive price forland 4*2 LHD diesel mini road sweeper truck for sale

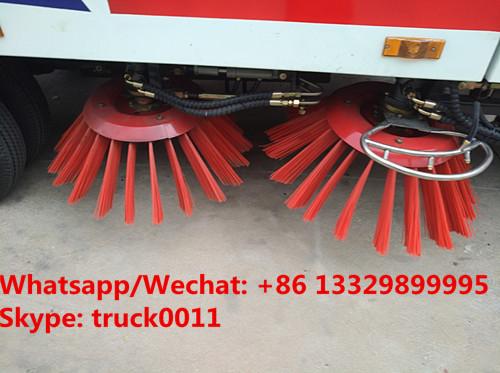

high quality road sweeping brushes for CLW Brand street sweeper truck
main technical parameters of forland 4*2 LHD diesel mini street sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
|
Main technical parameters of forland 4*2 mini road sweeper truck as below |
||||
|---|---|---|---|---|
|
Truck model |
road sweeper truck |
Remark |
||
|
Chassis model |
BJ |
|
||
|
wheelbase |
2600 |
|
||
|
Front/rear suspension |
1115/1845 |
|
||
|
Engine model |
Chassis engine |
N485QA |
|
|
|
Auxiliary engine |
LN385 |
|
||
|
Engine rated power |
Chassis engine |
34.5KW |
|
|
|
Auxiliary engine |
24 kW |
|
||
|
Max grade |
|
|
||
|
Emission standard |
Euro Ⅱ |
|
||
|
Max speed |
90 km/h |
|
||
|
Approach angle |
18° |
|
||
|
Departure angle |
18° |
|
||
|
Mass |
Curb mass |
3880kg |
|
|
|
Total mass |
4294 kg |
|
||
|
Dimension |
Overall dimension(L*W*H) |
5560,5210×1760×2280 |
|
|
|
Mini ground clearance |
200 mm |
|
||
|
Sucking and sweeping |
Sweeping effectiveness |
≥95% |
|
|
|
Maximum inhalation particle size |
100 mm |
|
||
|
Sucking and sweeping width |
1.8-2.1 m |
|
||
|
Max sweeping ability |
40000 m2/h |
|
||
|
|
Driving speed when sucking-washing |
3-20 km/h |
|
|
|
Water tank |
Rated volume |
0.7 m³ |
|
|
|
Dust tank |
Rated Volume |
2.5 m³ |
|
|
|
Tipping angle of the dust tank |
≥32° (the slopd the dust tank: 7°) |
|
||
|
Discharging door opening angle |
≥85° |
|
||
|
Hydraulic system |
Type |
Open-type, electric controlling |
|
|
|
Main units |
Gear pump, hydraulic motor, hydraulic cylinder, electromagnetic valve |
|
||
|
System pressure |
16 MPa |
|
||
|
Hydraulic oil tank volume |
54 L |
|
||
|
Oil temperature |
60 ˚C |
|
||
|
Electrical system |
Type |
DC12 V |
|
|
|
Voltage |
12 V |
|
||
|
Storage batteries |
12V |
|
||
|
Spraying system |
Type |
Electric diaphragm pump, water filter, nozzle, etc. |
|
|
|
Sweeping disk |
Type |
Middle-installed four sweeping disks, hydraulic motor drive, Automatic avoidance function |
|
|
|
Voltage |
500 mm |
|
||
|
Storage batteries |
Forward leaning:4-6°; Extravert:4-7° |
|
||
|
Sucking disk |
Type |
single suction, hydraulic control, spring suspension |
|
|
|
Sucker diameter |
150 mm |
|
||
| List | Name | No. | Remark |
| 1 | Fire hose | 1 | Used for filling water |
| 2 | Fire wrench | 1 | Used for removing fire wrench |
| 3 | manual hydraulic pump joystick | 1 | Used for staring manual hydraulic pump |
| 4 | Water filter wrench | 1 | Used for removing water filter |
| 5 | Spare tire | 1 |
| List | Name | No. | |
| 1 | Brush | Integral brushing disk | |
| 2 | Fan seal | 1 | |
| 3 | Rear door seal | 1 |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper truck in China. With many years’ development, we can offer ISUZU road sweeper truck, dongfeng street sweeper truck, forland road sweeping vehicle, YUEJIN road sweeper, JMC road sweeper truck, etc. More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat: +86 13329899995
Skype: truck0011
Email:truck0011@163.com
