best price forland 4*2 RHD 92hp diesel mini road sweeper truck for sale, cheapest price forland street sweeping vehicle
new design best price customized forland 4*2 RHD 92hp mini road sweeper truck for sale,wholesale factory direct sale cheapest price forland street sweeping vehicle
The CLW brand road sweeping truck is with the advantages of fast sweeping speed, smaller dust, lower consumption, etc. High quality and competitive price street sweeper trucks are widely used for mechanized cleaning and sweeping for city streets, roads, airports, ports, bridges, squares, Residential areas, etc.
the arrangement of the sweeping cleaning devices and sucking nozzles choose the structure Layout Form of “Medium Four Brush-Rear Suction”. Centrifugal automatic clutch connects the auxiliary engine and fan, assuring the starting of auxiliary engine without load. The sweeping devices of the sweeping truck are with the protection function of blocking automatically avoidance and automatically recovery function. When the sweeping disks blocks, it will be automatic retraced, which effectively solves the problem of easily damaged cleaning device. Full-floating suckers are with the advantages of wider sweeping width and higher sweeping efficiency. The full-floating suckers are easy for adjustment and maintenance of the sweeping devices and suckers at the same time. The internal bladder of the wastes van adopts double-layers structure, the internal layer is with full stainless steel. The stainless steel spraying de-dusting system mounted on the sweeping disks effectively reduces the second pollution of the dust. The front part of the van equips with manual pump automatic emergency system; rear part of the truck van with LED arrow light warning device. The operation of open and close the wastes van and tipping wastes is at the driver cab, which is safely, easily, and reliably.
If you're interested in our road sweeper truck, please kindly send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com

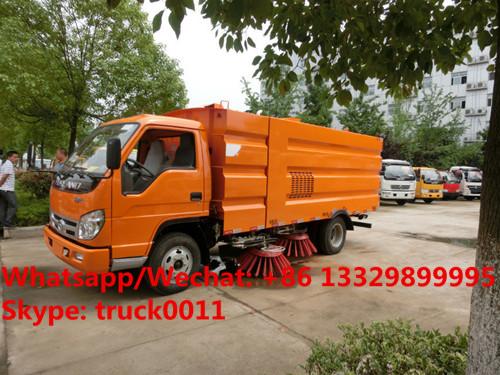

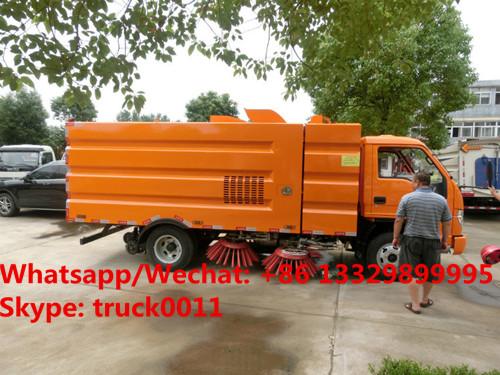

More pictures of forland road sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
The main upper parts of forland 4*2 RHD mini diesel road sweeping vehicle as below
4sets * road sweeping brushes; LN auxiliary engine; DALI motor; Schneider control switches; Taiwan solenoid valve groups; Maintenance-free self-detaching clutch; Maintenance-free fan; stainless steel water tank + stainless steel dust tank; Tail LED arrow light； Manual pump emergency system；Brush arm rotation mechanism with high-tech wear-resistant engineering spacer; butter-free; Precision cold bending seamless hydraulic hose.
|
Main technical parameters of forland 4*2 RHD 92hp mini road sweeper truck as below |
||||
|---|---|---|---|---|
|
Truck model |
road sweeper truck |
Remark |
||
|
Chassis model |
BJ |
|
||
|
wheelbase |
2800 |
|
||
|
Front/rear suspension |
990/1500 |
|
||
|
Engine model |
Chassis engine |
BJ493ZQ |
|
|
|
Auxiliary engine |
LN385 |
|
||
|
Engine rated power |
Chassis engine |
68KW/92Hp |
|
|
|
Auxiliary engine |
24 kW |
|
||
|
Max grade |
|
|
||
|
Emission standard |
Euro Ⅱ |
|
||
|
Max speed |
90 km/h |
|
||
|
Approach angle |
22° |
|
||
|
Departure angle |
15° |
|
||
|
Mass |
Curb mass |
3880kg |
|
|
|
Total mass |
4294 kg |
|
||
|
Dimension |
Overall dimension(L*W*H) |
5560×1760×2280 |
|
|
|
Mini ground clearance |
200 mm |
|
||
|
Sucking and sweeping |
Sweeping effectiveness |
≥95% |
|
|
|
Maximum inhalation particle size |
100 mm |
|
||
|
Sucking and sweeping width |
1.8-2.1 m |
|
||
|
Max sweeping ability |
40000 m2/h |
|
||
|
|
Driving speed when sucking-washing |
3-20 km/h |
|
|
|
Water tank |
Rated volume |
0.7 m³ |
|
|
|
Dust tank |
Rated Volume |
2.5 m³ |
|
|
|
Tipping angle of the dust tank |
≥32° (the slopd the dust tank: 7°) |
|
||
|
Discharging door opening angle |
≥85° |
|
||
|
Hydraulic system |
Type |
Open-type, electric controlling |
|
|
|
Main units |
Gear pump, hydraulic motor, hydraulic cylinder, electromagnetic valve |
|
||
|
System pressure |
16 MPa |
|
||
|
Hydraulic oil tank volume |
54 L |
|
||
|
Oil temperature |
60 ˚C |
|
||
|
Electrical system |
Type |
DC12 V |
|
|
|
Voltage |
12 V |
|
||
|
Storage batteries |
12V |
|
||
|
Spraying system |
Type |
Electric diaphragm pump, water filter, nozzle, etc. |
|
|
|
Sweeping disk |
Type |
Middle-installed four sweeping disks, hydraulic motor drive, Automatic avoidance function |
|
|
|
Voltage |
500 mm |
|
||
|
Storage batteries |
Forward leaning:4-6°; Extravert:4-7° |
|
||
|
Sucking disk |
Type |
single suction, hydraulic control, spring suspension |
|
|
|
Sucker diameter |
150 mm |
|
||
| List | Name | No. | Remark |
| 1 | Fire hose | 1 | Used for filling water |
| 2 | Fire wrench | 1 | Used for removing fire wrench |
| 3 | manual hydraulic pump joystick | 1 | Used for staring manual hydraulic pump |
| 4 | Water filter wrench | 1 | Used for removing water filter |
| 5 | Spare tire | 1 |
| List | Name | No. | |
| 1 | Brush | Integral brushing disk | |
| 2 | Fan seal | 1 | |
| 3 | Rear door seal | 1 |
