Year-End Promotion! China made dongfeng 190hp diesel 3.5m3 water tank+7.2m3 dust tank street sweeeping vehicle for sale,
Year-End Promotion! China made dongfeng 190hp diesel 3.5m3 water tank+7.2m3 dust tank street sweeeping vehicle for sale, cheapest price road sweeper for sale
Road sweeper trucks manufactured are with 4 sets of sweeping brushes, Cummins auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, seamless cold-rolled steel hydraulic oil tubes for precision applications, etc.
The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc
‘
And road sweeper trucks series are the new production line of Chengli Special Automobile Co., Ltd. Now the road sweeper trucks series are with high quality and competitive price. And our CLW brand road sweeper trucks are sold all over the world.
If you're interested in our CLW Brand road sweeper truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
The main devices of CLW Brand street sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
4sets * road sweeping brushes; JMC/CUMMINS auxiliary engine; DALI motor; Schneider control switches; Taiwan solenoid valve groups; Maintenance-free self-detaching clutch; Maintenance-free fan; stainless steel water tank + stainless steel dust tank; Tail LED arrow light； Manual pump emergency system；Brush arm rotation mechanism with high-tech wear-resistant engineering spacer; butter-free; Precision cold bending seamless hydraulic hose.
main technical parameters of Customized dongfeng 4*2 190hp diesel road sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| 1 main parameters | ||||
| Product name | CLW5140TSL3 road sweeper truck | Remark | ||
| Chassis model | EQ1141 | |||
| Wheelbase | 4500mm | |||
| Front/rear suspension | 1250/1900 (mm) | |||
| Engine model | Truck chassis engine | B190 33 | ||
| Auxiliary engine | B140 | |||
| Output power | Truck chassis engine power | 140KW/190hp | ||
| Auxiliary engine power | 103KW/140hp | |||
| Max Gradient | 30% | |||
| Emission standard | Euro Ⅲ | |||
| Outside-automobile noisy in the accelerating | ≤84dB(A), meeting the noisy of Second stage requirements | |||
| Max speed | 85 km/h | |||
| Approach angle | 25 | |||
| Departure angle | 30 | |||
| Weight | Curb weight | 6800 kg | ||
| Max total weight | 14490kg | |||
| Dimension | Overall dimension(L×W×H) | 7650X2480X3200 | ||
| Mini ground clearance | 240mm | |||
| Sucking and sweeping working | Sweeping efficiency | ≥95% | ||
| Max sucking granularity | 120mm | |||
| Sucking-sweeping width | 2.8-3.0 m | |||
| Max sweeping ability | 60000 m2/h | |||
| Extension dimension of dish brush | ≥400 mm | |||
| Sucking disk driving speed | 3-20km/h | |||
| Tanker | Water tank volume | 3.5m³ | ||
| Material | Stainless steel | |||
| Wastes van | Wastes van loading capacity | 7.2m³ | ||
| Open angle of the discharging door | ≥45° | |||
| Material | Stainless steel | |||
| Hydraulic system | Type | Open-type, electronic-control | ||
| Main units | Gear pump, hydraulic motor, hydraulic cylinders, solenoid valve, | |||
| System pressure | 16MPa | |||
| Hydraulic oil tank volume | 60L | |||
| Oil temperature | 60 ˚C | |||
| Electronic | Type | DC24V | ||
| voltage | 24V | |||
| Storage battery | 24V(2 sets of 12V in series) | |||
| Water sprinkling system | Main units | Electronic diaphragm pump, water filter, nozzles, | ||
| Sweeping disks device | Type |
4 sets of sweeping disks middle-installed driving by hydraulic motor; The right-front one can work separately, with the function of dodge and repeat working |
||
| Diameter | 850mm | |||
| Angle | ante version:4-6 °; extroversion: 4-7° | |||
| Sucking disk | Tyre | Single sucking, hydraulic-control, spring s | ||
| Sucking diameter | 200mm | |||
| Other device | Rear part | With LED arrow indication light | ||

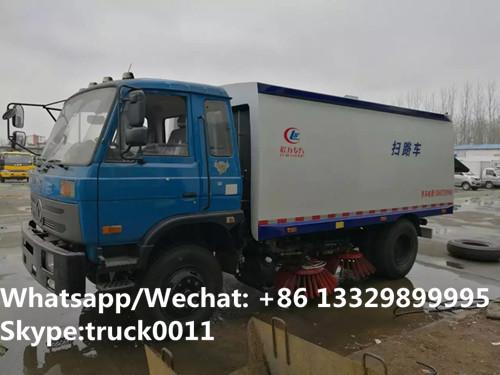

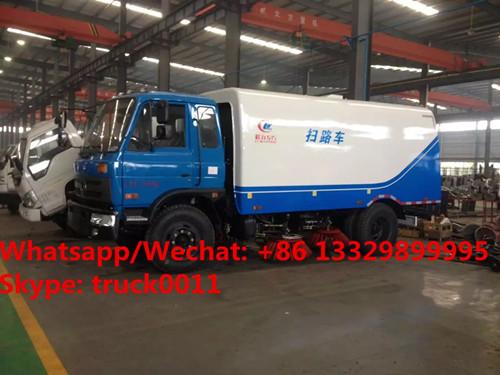

More pictures of dongfeng brand 190hp diesel street sweeper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
High quality and competitive price Dongfeng 190hp diesel road sweeper truck for sale
HOT SALE! BEST PRICE street sweeping vehicle
More information, please contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
Email: truck0011@163.com; specialtruck01@gmail.com
QQ: 504873236
