Dongfeng new mini 95hp diesel Euro 3 road cleaning vehicle for sale, High quality and competitive good street sweeper
Dongfeng mini 95hp diesel Euro 3 road cleaning vehicle for sale, High quality and competitive price street sweeper for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper trucks in China. With many years’ development, we Chengli Special Automobile Co., Ltd. could offer ISUZU road sweeper truck, forland street sweeper truck, dongfeng brand road cleaning vehicle, JMC brand road sweeping vehicle, JAC brand street sweeper, FAW brand street sweeping vehicle, etc.
main technical advantages of CLW brand road sweeping truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1, the CLW brand sweeping washing truck, adopts layout of front with clean water tank and rear with sewer tank, Semi closed Auxiliary engine cabin, left and right double side door, etc.
2, the ground pressure of the side sweeping brushes system adopts Spring adjustable model; adjusting the ground pressure of the sweeping brushes according to the road condition to reduce the abrasion of the sweeping brushes; the sweeping brushes can be adjusted low-high speed.
3, the high pressure water pump and nozzles adopts German brand; water pump is with stainless steel pump head, and the pressure up to 160Bar, max flow is 154L/min. Good road cleaning effect.
4, the hydraulic valves adopts solenoid diectional valve arranged in good order, easy to maintain; the hydraulic motor adopts Italian brand. The whole truck is with reliable hydraulic system, flexible working, etc.
5, the road sweeping washing vehicle adopts the particular centrifugal blower, and the blowing up to 12000m3/h; the blades of the blower adopting special steel, which is not easy to abrase.
6, the special side sweeping brushes anti-collision mechanism can protect the side sweeping brushes and avoiding the flushing and washing device collide the road.
7, the high pressure road cleaning vehicle adopts the working way of sweeping first then flushing sweeping, then sucking; cleaning, flushing, sucking the wastes and sewer at one time . After working, the road is without dust and water.
8, high pressure water line is installed with ant freezing water coupling, avoiding the water line freezed in winter.
9, the Key units of the electronics, adopts high quality imported ones; Operation controlling is with PLC one-key operation, realizing 9 kinds of working modes. The truck can be operated at the driver cab, easy to operate.
10, the road sweeping cleaning vehicle adopts cylinders driving’ electronic automatically control the clutch to ensure the auxiliary engine starting-stopping no load, lasting the lifetime.
11, the truck is with the self-return flushing reel and high pressure and big flow flushing nozzle, flushing heavily certain greasy dirt and also flushing and cleaning the advertisement billboards, etc.
12, the truck is with voice alarm device, realizing the function of Fault self diagnosis. And the also with anti overflow –low water level alarm device, etc.
13, the high pressure road sweeping washing vehicle is with cameral for the working and backing.
If you're interested in our road sweeper truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

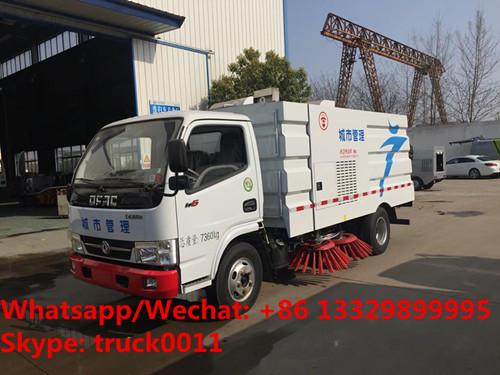

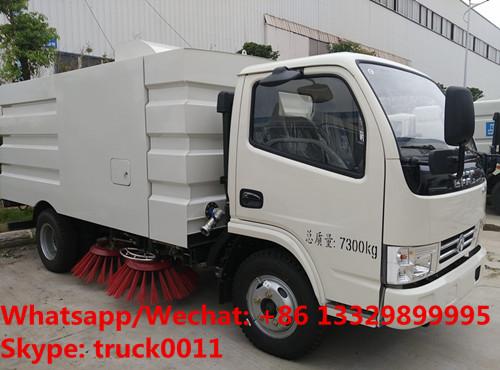

More pictures of dongfeng mini diesel road sweeper manufactured by Chengli Special Automobile Co., Ltd. as below.
high quality and competitive price street sweeping vehicle for sale
factory sale best price diesel road cleaning vehicle for sale
Dongfeng 3300mm sweeper truck for sale
| 1 main parameters | ||||
| Product name | CLW5061TSL3 road sweeper truck | Remark | ||
| Chassis model | EQ1060TJ20D3 | |||
| Wheelbase | 3300mm | |||
| Front/rear suspension | 1032/1638(mm) | |||
| Engine model | Truck chassis engine | CY4102-C3F | ||
| Auxiliary engine | JX493-G3 | |||
| Output power | Truck chassis engine power | 70KW | ||
| Auxiliary engine power | 57 KW | |||
| Max Gradient | 30% | |||
| Emission standard | Euro Ⅲ | |||
| Outside-automobile noisy in the accelerating | ≤84dB(A), meeting the noisy of Second stage requirements | |||
| Max speed | 95 km/h | |||
| Approach angle | 19° | |||
| Departure angle | 12° | |||
| Weight | Curb weight | 4800 kg | ||
| Max total weight | 7300kg | |||
| Dimension | Overall dimension(L×W×H) | 5950×1995×2380mm | ||
| Mini ground clearance | 240mm | |||
| Sucking and sweeping working | Sweeping efficiency | ≥95% | ||
| Max sucking granularity | 120mm | |||
| Sucking-sweeping width | 2.8-3.0 m | |||
| Max sweeping ability | 60000 m2/h | |||
| Extension dimension of dish brush | ≥400 mm | |||
| Sucking disk driving speed | 3-20km/h | |||
| Tanker | Water tank volume | 1.0-1.5m³ | ||
| Material | Stainless steel | |||
| Wastes van | Wastes van loading capacity | 3.5-4.0m³ | ||
| Open angle of the discharging door | ≥45° | |||
| Material | Stainless steel | |||
| Hydraulic system | Type | Open-type, electronic-control | ||
| Main units | Gear pump, hydraulic motor, hydraulic cylinders, solenoid valve, | |||
| System pressure | 16MPa | |||
| Hydraulic oil tank volume | 60L | |||
| Oil temperature | 60 ˚C | |||
| Electronic | Type | DC24V | ||
| voltage | 24V | |||
| Storage battery | 24V(2 sets of 12V in series) | |||
| Water sprinkling system | Main units | Electronic diaphragm pump, water filter, nozzles, | ||
| Sweeping disks device | Type |
4 sets of sweeping disks middle-installed driving by hydraulic motor; The right-front one can work separately, with the function of dodge and repeat working |
||
| Diameter | 850mm | |||
| Angle | ante version:4-6 °; extroversion: 4-7° | |||
| Sucking disk | Tyre | Single sucking, hydraulic-control, spring s | ||
| Sucking diameter | 200mm | |||
| Other device | Rear part | With LED arrow indication light | ||
2, spare parts
| Item | Name | Nos. | Remark |
| 1 | fire fighting hose | 1 | For adding water |
| 2 | fire fighting wrench | 1 | For disassembling fire hydrant |
| 3 | Manual rocker for hydraulic pump | 1 | For manual starting the hydraulic pump |
| 4 | Spare tyre(with the truck) | 1 |
3, spare parts
| Item | Name | Nos. | |
| 1 | Brushing bristle | 80 | |
| 2 | weather-strip of fan | 1 | |
| 3 | weather-strip of rear door | 1 |
4,imported device
| Items | Name | Model | Country |
| 1 | Hydraulic motor | BMR125 | Item |
| 2 | Hydraulic valve | SWH-G02-C4-D2H | Taiwan |
More information, please contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
Email: truck0011@163.com
QQ: 504873236
