Customized wholesale best price dongfeng 4*2 LHD 2tons telescopic boom mounted on cargo truck for sale, truck with crane
Customized wholesale best price dongfeng brand 4*2 LHD 2tons telescopic boom mounted on cargo truck for sale, HOT SALE! 2tons truck with crane
Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc.
A crane mounted on a truck carrier provides mobility for this type of crane. This crane has two parts: the carrier, offer referred to as the lower, and the lifting component which includes the boom, referred to as the upper. These are mateed tog through a turntable, allowing the ipper to swing from side to side. These modern hydraulic truck cranes are usuallt single-engine nachines, with the same engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turnable from the pump mounted on the lower. In older model designed of hydraulic truck cranes, there were two engines. One in the lower pulled the cranedown the road and ran a hydraulic pump for the outrrigers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turnable of aging newer design cranes.
Dongfeng furuika small truck with crane, adopts LHD 4*2 driving type, LHD 4×4 driving type, RHD 4*2 driving type, RHD 4*4 driving type chassis, etc. And chosen high quality and competitive price 2ton telescopic crane boom.
dongfeng brand 4*2 LHD dump truck with 2tons telescopic boom, adopts dongfeng original truck chassis, 3300mm wheelbase, chaochai 95hp diesel Euro 3 diesel engine, 5 speed gearbox, 7.00-16 nylon tires, 2tons front axle/4tons rear axle, etc.
The telescopic boom choose China made high quality 2tons telescopic boom (2 sections), the dump box body dimension(L*W*H): 3500*1980*400(mm), middle installed double hydraulic cylinders lifting, rear door opened type.
Approximate Overall dimension(L*W*H): 5995x1980x2950(mm).
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.

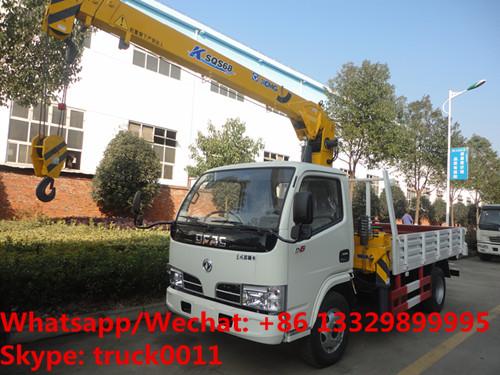

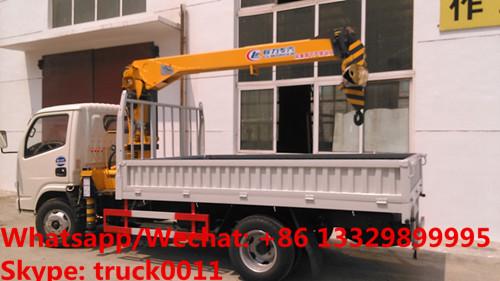

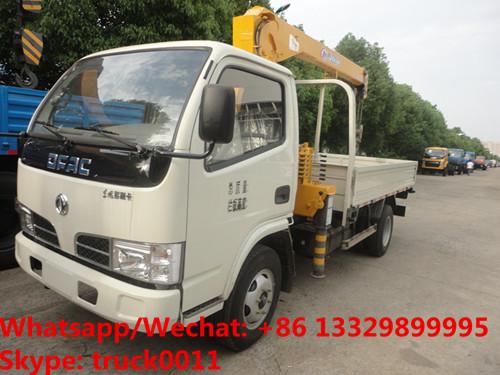

More pictures of Dongfeng 2tons telescopic boom mounted on truck manufacutured by CHengli Special Automobile Co., Ltd. as below.
high quality and competitive price dongfeng 2tons truck with crane for sale
Factory sale dongfeng 2tons cargo truck with crane
specification of dongfeng 2tons truck with crane as below
| Dongfeng 2tons small telescopic cargo truck with crane Main Technical Parameter | ||||
| Product Model | Truck with crane(telescopic) | Gross Vehicle Weight (kg) | 6495 | |
| Curb Weight (kg) | 3865 | Overall Dimension(mm) | 5995x1980x2950 | |
| Lifting Capacity(kg) | 2000 | Cargo body dimension(mm) | 3500*1980*400 | |
| Axle No. | 2 | Wheelbase (mm) | 3300 | |
| Chassis Technical Parameter | ||||
| Chassis Model | EQ1060 | Chassis Name | Truck Chassis | |
| Chassis Brand | Dongfeng | Manufacturer | Dongfeng Automobile Co., Ltd | |
| Overall Dimension (mm) | 5820×1940×2080 | Tyre No. | 6 with 1 spare tyre | |
| App./ Dep. Angle(º) | 19/15 | Tyre Spec. | 7.00-16 | |
| Leaf Spring No. | 8/9+5 | Front Track (mm) | 1506 | |
| Fuel Type | Diesel | Rear Track (mm) | 1466 | |
| Drive Type | 4x2 | Brake System | Air brake | |
| Steering Type | Circulate ball | Gear Box | 5 speed forward and 1 reverse | |
| Engine Technical Parameter | ||||
| Engine Model | CY4100 | Emission Standard | Euro III | |
| Displacement ( mL ) | 3856 | Power (hp/kw) | 95hp/70kw | |
| Cylinder No. | 4 cylinders in line | Engine Type | Water cooling, four stroke, inter-cooling charged, | |
| Equipment: 1. Rotational alert lamp on the top of the cabin. 2. Four hydraulic triggers which can be operated independently or simultaneously. 3. Insulated bucket for worker to operation. 4. Telescopic lifting beam, higher lifting height. 5. Imported electro-hydraulic ratio control valve. |
||||
main technical parameters of CLW Brand 2tons telescopic boom mounted on truck as below
| Crane boom technical parameters | ||||
| Crane boom model | 2tons telescopic boom with 2 sections | |||
| Lifting mass | 2,000kgs | |||
| Working height | 6.8m working height | |||
| Working radius | 5.1m | |||
| crane boom mass | 650kgs | |||
| Crane boom function | Full hydraulic, 360°swing. | |||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
