HOT SALE! ISUZU Brand 4*2 LHD 2tons small cargo truck with telescopic crane boom, ISUZU cargo truck with straight boom
HOT SALE! ISUZU Brand 4*2 LHD 2tons small cargo truck with telescopic crane boom, ISUZU cargo truck with straight boom for sale
| ISUZU 2tons small cargo truck with telescopic crane Main Technical Parameter | |||||
| Product Model | ISUZU 4*2 LHD 600P truck with crane (telescopic) | Gross Vehicle Weight (kg) | 4495 | ||
| Curb Weight (kg) | 2900 | Overall Dimension(mm) | 5995×1900×2820 | ||
| Rated mass (kgs) | 1465 | Driver cab | 3 person seated includes the driver | ||
| Lifting Capacity(kg) | 2000 | cargo body dimension(mm) | 3600,3400×1800×400 | ||
| Axle No. | 2 | Wheelbase (mm) | 3360 | ||
| Chassis Technical Parameter | |||||
| Chassis Model | QL1050A1HAY | Chassis Name | Truck Chassis | ||
| Chassis Brand | ISUZU | Manufacturer | ISUZU Automobile Co., Ltd | ||
| Overall Dimension (mm) | 5900×1880×2150 | Tyre No. | 6 | ||
| App./ Dep. Angle(º) | 24/16 | Tyre Spec. | 6.50-16 10PR,6.50R16 10PR | ||
| Leaf Spring No. | 8/6+5 | Front Track (mm) | 1504 | ||
| Fuel Type | Diesel | Rear Track (mm) | 1425 | ||
| Drive Type | 4x2 | Brake System | oil brake | ||
| Power steering | Yes | Transmission | ISUZU MSB 5 speed, manual | ||
| Front/rear axle | 2.5tons/4.8tons | Driver cab | Isuzu 600P single row luxurious driver cab with original air conditioner and USB interface radio | ||
| Engine Technical Parameter | |||||
| Engine Model | 4KH1-TCG40 | Emission Standard | Euro Ⅳ | ||
| Displacement ( mL ) | 2999 | Power (hp/kw) | 120hp/88kw | ||
| Dump box body parameters | |||||
| cargo box body dimension(L*W*H)(mm) | 3600,3400×1800×400 | Open type | Rear door opened | ||
| Side thickness | 1.5mm thickness | Bottom thickness | 1.5mm thickness | ||
| Lifting way | Middle installed double cylinders lifting | ||||
| Crane boom technical parameters | |||||
| Crane boom model | China made high quality 2tons telescopic boom with 2/3 sections | ||||
| Lifting mass | 2000kgs 2 sections/3 sections | ||||
| Working height | 7.2m/9.8m working height | ||||
| Working radius | 5.54m/8m | ||||
| crane boom mass | 870kgs/900kgs | ||||
| Installation space | 700mm | ||||
| Crane boom function | Full hydraulic, 360°swing. | ||||
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.
Isuzu brand 4*2 LHD 2tons truck with folded crane boom, adopts Isuzu brand 4*2 LHD 600P truck chassis, 3360mm wheelbase, isuzu 120hp diesel Euro 4 engine, ISUZU MSB 5 speed and manual transmission, 2.5tons/4.8tons front/rear axle, Isuzu 600P single row luxurious driver cab with original air conditioner and USB interface radio, 6.50-16 10PR,6.50R16 10PR, etc.
And this ISUZU brand truck with crane choose high quality and competitive price China made CLW Brand 2tons 2/3 sections telescopic crane boom.
If you're interested in our CLW brand mobile truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wecj
CLW truck mounted crane is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes of CLW brand truck mounted crane manufactured by Chengli Special Automobile Co., Ltd. as below.
· Optional: from 2 ton to 200 ton lifting capacity crane truck
· Optional: straight arm and floding arm truck crane with or without remote control
· Optional: different famous crane brand: HIAB, Shimei, Zoomlion, Sany, Chengli balong, etc.
· Optional: different famous chassis brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, T-king, Dayun, Yuejin, JMC, JAC, etc.
· Factory direct sale, low price and good quality.

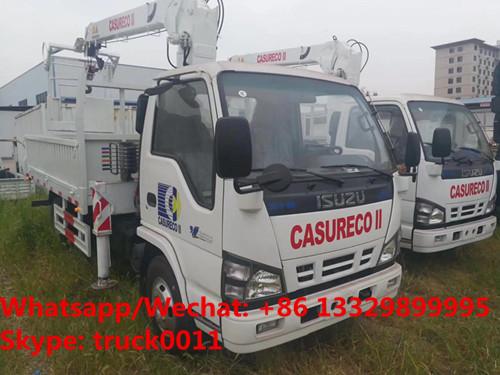

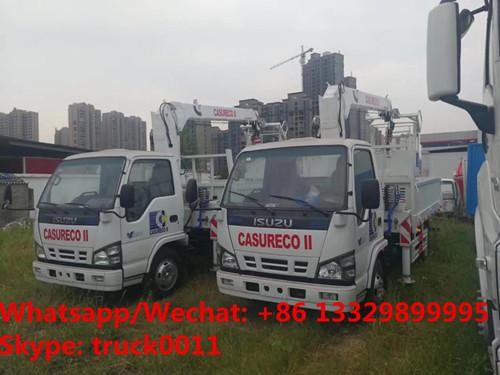

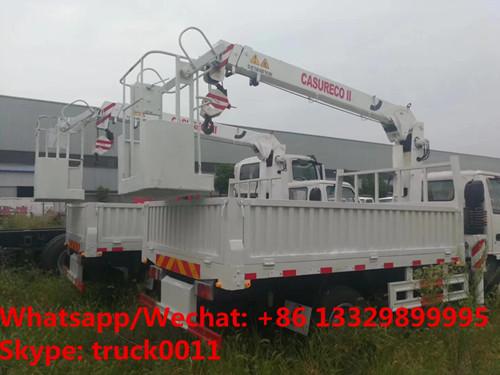

More pictures of ISUZU brand 2tons telescopis boom mounted on cargo truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Customized ISUZU brand truck with crane for sale
HOT SALE! High quality and competitive price ISUZU brand 2tons truck mounted crane
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
