Factory sale high quality and competitive price Dongfeng brand 190hp diesel 6.3tons telescopic truck with crane
Factory sale high quality and competitive price Dongfeng brand 190hp diesel 6.3tons telescopic truck with crane, mobile cargo truck mounted on crane for sale
The truck-mounted craneis also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The truck-mounted crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're interested in our CLW Brand truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.
Website: www.trucksinchina.com

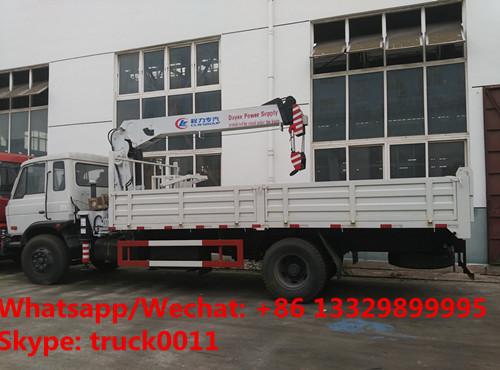

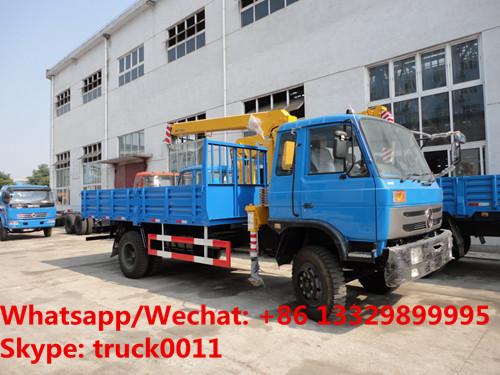

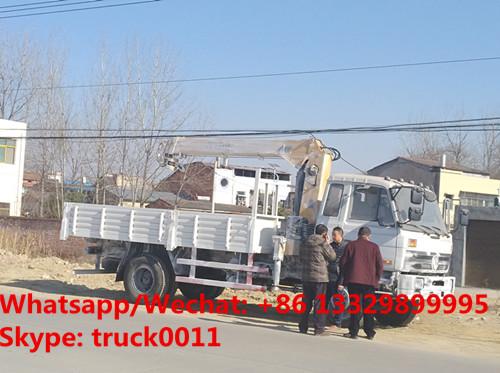

More pictures of dongfeng 4*2 LHD 6.3tons telesopic boom mounted on cargo truck manufactured by Chengli Special Automobile Co., Ltd. as below
Factory sale dongfeng brand 6.3tons truck with crane
High quality and competitive price dongfeng brand 4*2 LHD 6.3tons telescopic boom mounted on truck for sale
main technical parameters of Dongfeng 4*2 LHD 6.3tons telescopic truck crane as below.
| Main parameters | ||
| Product name | Dongfeng 4*2 LHD 6.3tons telescopic truck crane | |
| Overall dimension | Overall dimensions | 9000×2490×3600,3720 |
| Fact Lifting | 10000kg | |
| Gross weight | 15800kg | |
| Curb weight | 8755kg | |
| Payload capacity | 6850kg | |
| Axle load | 5900/9900kg | |
| Axle nos. | 2 | |
| Driving type | 4*2 LHD, RHD is selective | |
| Electronic system | 24V | |
| Tyre specification | 9.00-20 | |
| Nos. of tyre | 6+1 | |
| Wheelbase | 4500mm | |
| Front/Rear track base | 1940/1860(mm) | |
| Front/Rear overhang | 1250/2650mm | |
| Approach/Departure angle | 32/18° | |
| Cargo body | Cargo Box dimensions | 4800×2294×550(mm) |
| Material | High quality carbon steel | |
| Side Thickness | 3mm | |
| Bottom sheet | 4mm | |
| Rear door | open ° | |
| Color | Upon request | |
| Engine | Exhaust/Power | 5900ml/190hp |
| Max speed | 80km/h | |
| Engine model | B190 33 | |
| Emission standard | Euro 3 | |
| Engine type | 6 cylinders in line, inter-cooling diesel engine | |
| Manufacturer | Dongfeng Cummins | |
| Articulated boom | Boom name |
XCMG 6.3ton telescopic boom(SQ6.3Sk2Q)
|
| Max lifting moment of force | 15.7T.m | |
| Max lifting mass | 6300kg | |
| Curb mass | 2120kg | |
| Boom type | Hexagon shape, hydraulic system, extending in order | |
| Rotation degree | 360 °full rotation | |
| Max Outriggers span | 5m | |
| Oil tank volume | 90L | |
| Flow | <40L/min | |
| Outriggers | Double front outriggers | |
| Working ability | Working radius | Lifting mass |
| 2.5m | 6300kg | |
| 3.82m | 2900kg | |
| 6.17m | 1600kg | |
| 8.5m | 1200kg | |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
