Dongfeng duolika LHD 4T telescopic crane boom mounted on truck for sale, HOT SALE! dongfeng 120hp 4T truck with crane
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
CLW truck mounted crane is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes of CLW brand truck mounted crane manufactured by Chengli Special Automobile Co., Ltd. as below.
· Optional: from 2 ton to 200 ton lifting capacity crane truck
· Optional: straight arm and floding arm truck crane with or without remote control
· Optional: different famous crane brand: HIAB, Shimei, Zoomlion, Sany, Chengli balong, etc.
· Optional: different famous chassis brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, T-king, Dayun, Yuejin, JMC, JAC, etc.
· Factory direct sale, low price and good quality.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

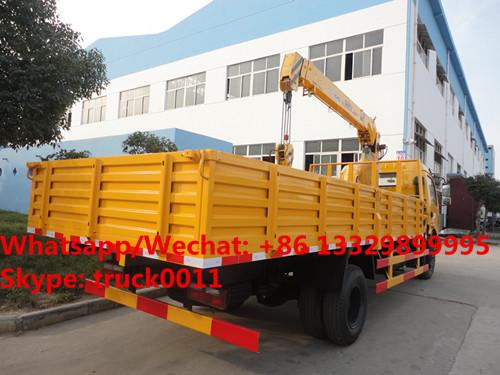

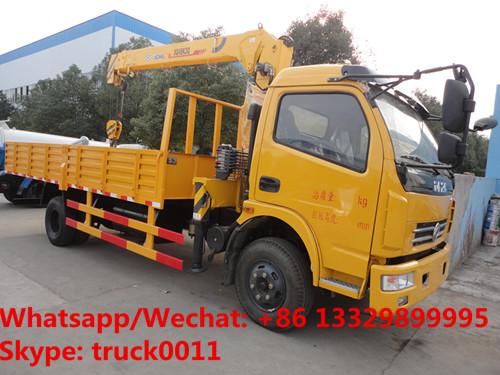

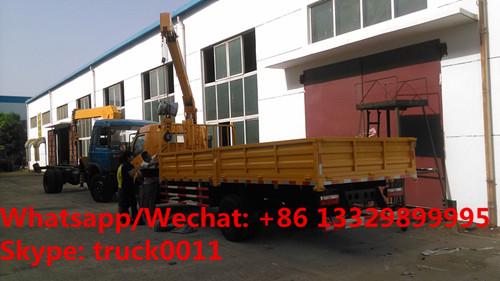

More pictures of Dongfeng brand 4T telescopic crane boom mounted on cargo truck manufactured by Chengli Special Automobile Co., Ltd. as below.
high quality and competitive price Dongfeng brand 4T telescopic boom mounted on truck for sale
customized dongfeng 140hp 4tons telescopic crane mounted on truck for sale
main technical parameters of dongfeng brand 4T telescopic crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | Dongfeng duolika LHD/RHD 4T telescopic crane boom mounted on truck for sale | |
| Chassis type | EQ1090TJ12D5 | |
| Parameters | Overall dimension length/width/height (mm) | 7995×2440×3250 |
| Cargo body dimension (L*W*H)(mm) | 5100,5200×2150×550 | |
| GVW(kg) | 9495(Kg) | |
| Kerb Mass(kg) | 5100 (Kg) | |
| Rated mass(kg) | 4200(Kg) | |
| Approach angle/ Departure angle(mm) | 22/11 (°) | |
| Front suspension/rear suspension(mm) | 1180/2415 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | B140 33 |
| Displacement/Power(kw) | 3900ml/103KW/140hp | |
| Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
| Type | 4-in-line inter-cooling; intercooling | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 4400 | |
| Tread(front/rear) | 1770,1845 /1602,1640 (mm) | |
| Transmission | 5 forward gear,1 reverse gear, mechanical transmission | |
| Braking system | Air braking | |
| Cab | Dongfeng duolika single row driver cab | |
| Number of spring axle(front/rear) | 11/13+8 | |
| Tire Type | 7.50R16,8.25R16 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5100,5200×2150×550 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 4T 3/4 sections telescopic crane boom | |
| Lifting height | 9.9m/13m | |
| Working radius | 7.9m/11m | |
| The color of the whole truck is upon request. | ||
