Factory direct sale best price dongfeng 120hp 3.2tons folded crane boom mounted on truck, 3.2T folded truck with crane
Factory direct sale best price dongfeng 120hp diesel 3.2tons folded crane boom mounted on truck, HOT SALE! 3.2T folded truck with crane
The truck-mounted craneis also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The truck-mounted crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Today, we will introduce hot sale dongfeng duolika 120hp diesel 3.2tons folded crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.

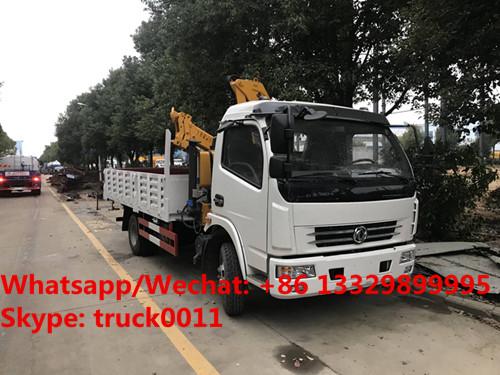

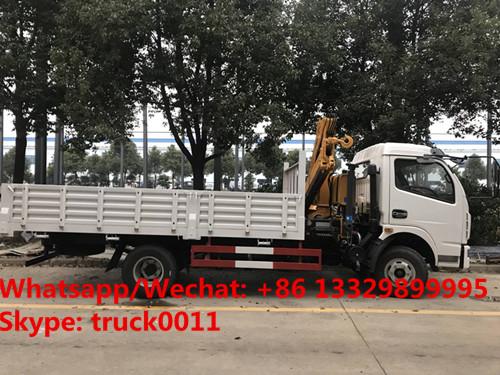

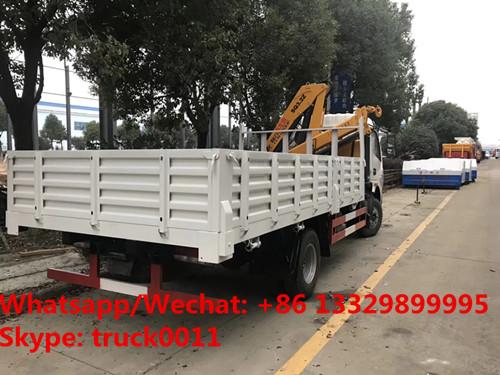

More picutres of CLW brand 3.2tons fodled truck with crane as below.
high quality and competitive price dongfeng brand 3.2tons folded crane mounted on truck for sale
factory sale best price dongfeng 120hp diesel 3.2tons folded boom mounted on cargo truck
main technical parameters of dongfeng brand 3.2tons folded crane boom mounted on truck as below.
| Product name | Dongfeng duolika LHD/RHD 3.2 tons folded crane boom mounted on truck for sale (CLW5110JSQ3) | |
| Chassis type | EQ1110T9ADJ3AC | |
| Parameters | Overall dimension length/width/height (mm) | 7050×2420×3230 |
| Cargo body dimension (L*W*H)(mm) | 4300,4200×2050×550 | |
| GVW(kg) | 11495(Kg) | |
| Kerb Mass(kg) | 5330 (Kg) | |
| Rated mass(kg) | 5970(Kg) | |
| Approach angle/ Departure angle(mm) | 22/12 (°) | |
| Front suspension/rear suspension(mm) | 1180/2070 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | CY4102BZQ |
| Displacement/Power(kw) | 3856ml/88KW/120hp | |
| Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
| Type | 4-in-line inter-cooling; intercooling | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 3800 | |
| Tread(front/rear) | 1831,1750/1640,1586 (mm) | |
| Transmission | 5 forward gear,1 reverse gear, mechanical transmission | |
| Braking system | Air braking | |
| Cab | Dongfeng duolika single row driver cab | |
| Number of spring axle(front/rear) | 11/9+7,8/10+7 | |
| Tire Type | 7.50R16, | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 4300,4200×2050×550 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 3mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 3.2T 2/3 sections folded crane boom | |
| The color of the whole truck is upon request. | ||
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
QQ: 504873236
