HOT SALE! dongfeng 4*2 LHD 8tons telescopic boom mounted on truck, dongfeng 8tons telescopic truck with crane for sale
HOT SALE! dongfeng 4*2 LHD 8tons telescopic boom mounted on truck, dongfeng 8tons telescopic truck with crane for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
The truck-mounted craneis also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The truck-mounted crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're interested in our CLW Brand truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

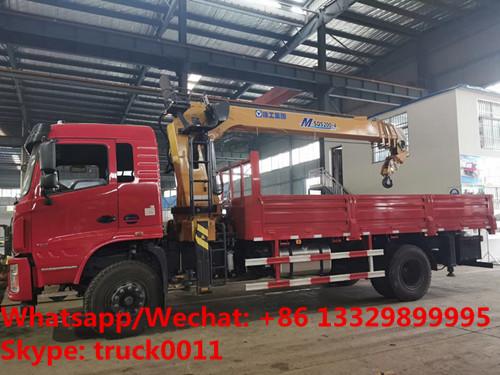

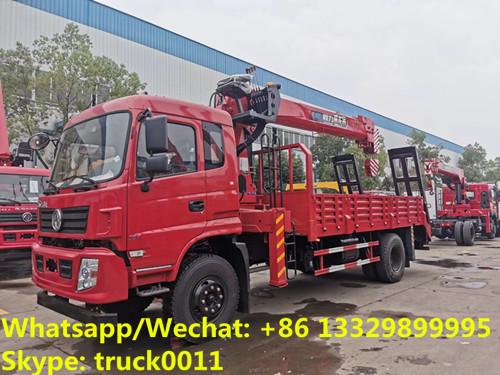

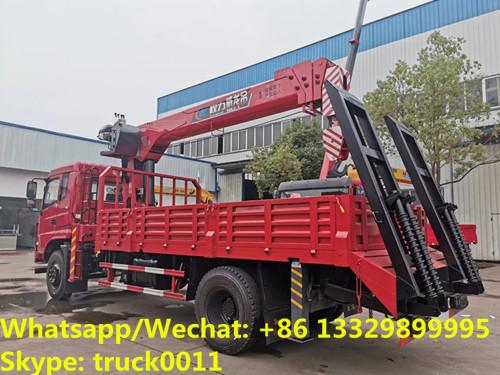

more pictures of dongfeng brand 8tons telescopic boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
high quality and competitive price dongfeng 8tons telescopic boom mounted on truck for sale
HOT SALE! dongfeng 8tons telescopic truck with crane
Main technical parameters of dongfeng brand 8tons telescopic boom mounted on truck as below.
| Product name | Dongfeng 4*2 4*2 8tons telescopic boom mounted on truck for sale | |
| Chassis type | EQ1180GD5DJ | |
| Parameters | Overall dimension length/width/height (mm) | 9000×2550×3800,3700 |
| Cargo body dimension (L*W*H)(mm) | 5800,4650×2500,2450×550 | |
| GVW(kg) | 18000 (Kg) | |
| Kerb Mass(kg) | 11000 (Kg) | |
| Rated mass(kg) | 6870 (Kg) | |
| Approach angle/ Departure angle(mm) | 23/12 (°) | |
| Front suspension/rear suspension(mm) | 1450/2450 | |
| Fuel Type | diesel | |
| Max Speed | 110 | |
| Engine | Type | ISB190 50 |
| Displacement/Power(kw) | 5900ml/140KW/190hp | |
| Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
| Type | 6 cylinders -in-line inter-cooling diesel Euro 5 engine | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 5100 | |
| Tread(front/rear) | 1810/1800 (mm) | |
| Transmission | Fastgear 8 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | Dongfeng one and a half driver cab | |
| Number of spring axle(front/rear) | 8/9+7 | |
| Tire Type | 10.00R20 rail tires* 6+1 | |
| Air-condition | Choose to install | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5800,4650×2500,2450×550 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 8T 4/5 sections telescopic crane boom | |
| Crane boom lifting height | 15.5m/18.5m | |
| Crane boom working radius | 13.5m/16.5m | |
| Rotation | Full hydraulic, full rotation | |
| The color of the whole truck is upon request. | ||
