Factory sale good price dongfeng brand 156hp diesel Euro 5 4tons folded crane boom mounted on truck, folded truck crane
Factory sale good price dongfeng brand 156hp diesel Euro 5 4tons folded crane boom mounted on truck,
Chengli Special Autmobile is the leading manufacturer and supplier of truck with crane in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply cargo truck with crane, dump truck mounted crane, crane truck, etc. More information, please feel free to contact with Ms. Anita. As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
Customized truck-mounted craneis also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The truck-mounted crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're interested in our CLW Brand truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

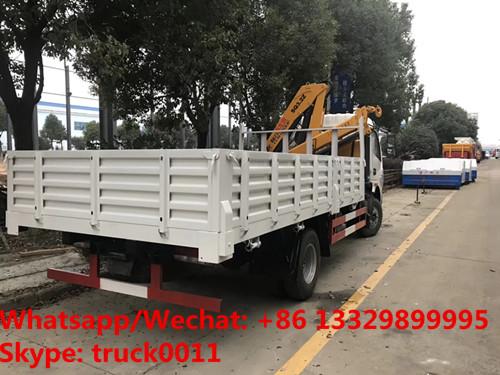

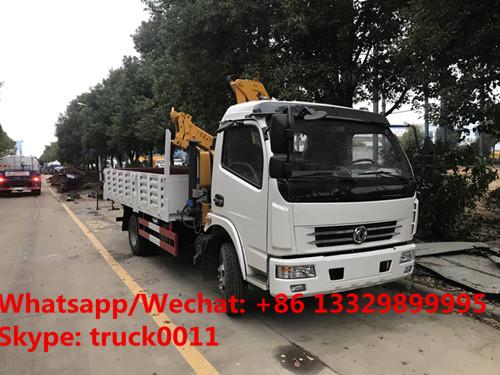

More pictures of dongfeng brand 4*2 LHD 156hp Euro 5 4tons folded crane boom mounted on truck as below
main technical parameters of dongfeng brand 156hp diesel 4tons folded crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | Dongfeng 4*2 LHD 156hp Euro 5 4tons folded boom mounted on truck for sale | |
| Chassis type | EQ1090SJ8BDE | |
| Parameters | Overall dimension length/width/height (mm) | 7995×2320×3250 |
| Cargo body dimension (L*W*H)(mm) | 5200×2150×550 | |
| GVW(kg) | 9400 (Kg) | |
| Kerb Mass(kg) | 5500 (Kg) | |
| Rated mass(kg) | 3705 (Kg) | |
| Approach angle/ Departure angle(mm) | 21.5/12 (°) | |
| Front suspension/rear suspension(mm) | 1180/2415 | |
| Fuel Type | diesel | |
| Max Speed | 103 | |
| Engine | Type | CY4SK251 |
| Displacement/Power(kw) | 3856ml/115KW/156hp | |
| Manufacturer | Dongfeng chaochai diesel engine | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 4400 | |
| Tread(front/rear) | 1745/1640,1800 (mm) | |
| Transmission | 6 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | Dongfeng single row driver cab | |
| Number of spring axle(front/rear) | 8/10+7 | |
| Tire Type | 8.25R16 14PR rail tires* 6+1 | |
| Air-condition | Choose to install | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5200×2150×550 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 4tons folded crane boom | |
| Rotation | Full hydraulic, full rotation | |
| The color of the whole truck is upon request. | ||
