HOT SALE! Dongfeng brand 4*2 LHD 5tons telescopic crane boom mounted on truck, 5T cargo truck with crane for sale
HOT SALE! Dongfeng brand 4*2 LHD 5tons telescopic crane boom mounted on truck, factory sale best price 5tons cargo truck with crane for sale
The truck-mounted crane is also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The truck-mounted crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
Chengli Special Autmobile is the leading manufacturer and supplier of truck with crane in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply cargo truck with crane, dump truck mounted crane, crane truck, etc. More information, please feel free to contact with Ms. Anita.
As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're itnerested in our dongfeng 5tons telescopic boom mounted on cargo truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Whatsapp/Wechat/Mob.: 0086 13329899995.

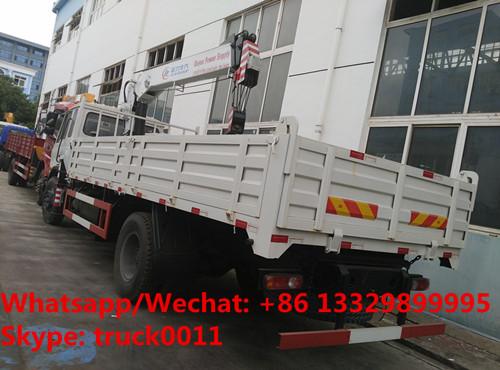

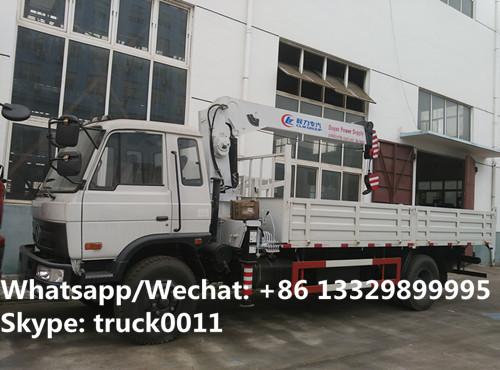

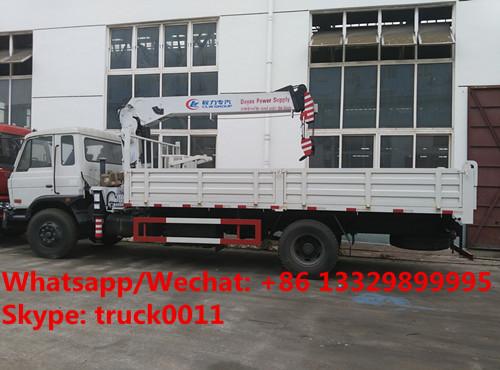

More pictures of dongfeng 145 5tons telescopic boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
main technical parameters of dongfeng 145 5tons telescopic crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | Dongfeng 145 LHD/RHD 5tons telescopic crane boom mounted on truck for sale (CLW5110JSQT3) | |
| Chassis type | EQ1110GLJ3 | |
| Parameters | Overall dimension length/width/height (mm) | 8000×2495×3350 |
| Cargo body dimension (L*W*H)(mm) | 4700×2294×600 | |
| GVW(kg) | 11495KGS | |
| Kerb Mass(kg) | 6900 | |
| Rated mass(kg) | 4400 | |
| Approach angle/ Departure angle(mm) | 31/22 (°) | |
| Front suspension/rear suspension(mm) | 1250/2050 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | B170 33 |
| Displacement/Power(kw) | 5900ml/125KW/170hp | |
| Manufacturer | Dongfeng Cummins | |
| Type | 6 cylinders in-line inter-cooling; intercooling | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 4500 | |
| Tread(front/rear) | 1900/1800 | |
| Transmission | 6 forward gear,1 reverse gear, mechanical transmission | |
| Braking system | Air braking | |
| Cab | Dongfeng one row and a half driver cab | |
| Number of spring axle(front/rear) | 8/11+8 | |
| Tire Type | 9.00-20,9.00R20 14PR | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 4700×2294×600 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2m thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 5tons telescopic crane boom | |
| The color of the whole truck is upon request. | ||
