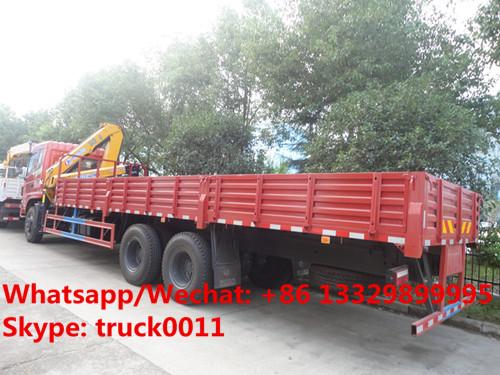

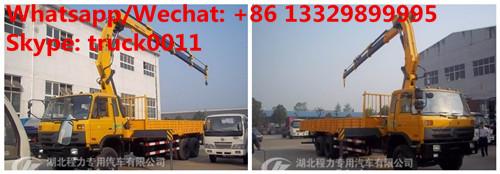

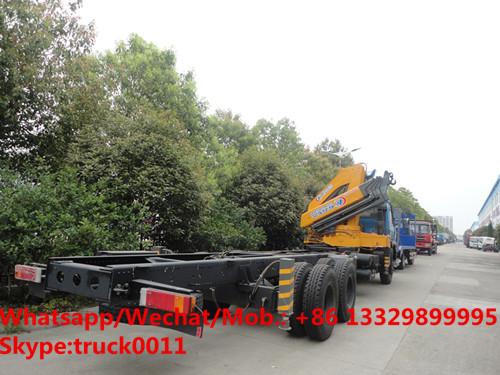

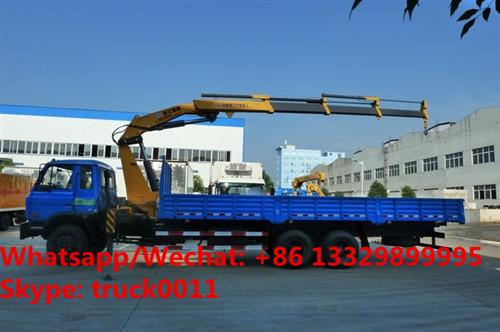

customized dongfeng 6*4 LHD/RHD 210hp diesel 10tons knuckle crane boom mounted on truck for sale, HOT SALE! 10tons truck
customized dongfeng 6*4 LHD/RHD 210hp diesel 10tons knuckle crane boom mounted on truck for sale, HOT SALE! 10tons truck with crane
Chengli Special Automobile Co., Ltd. is the leading manufacturer of truck with crane, truck mounted crane, dump truck with crane, cargo truck with crane, telescopic crane mounted on truck, etc. With many years’ experience in manufacturing, Chengli Special Automobile Co., Ltd. could manufacture and supply 4*2 small truck with crane, 4*4 truck with crane, 6*2 dump truck with crane, 6*4 cargo truck with crane, 8*4 crane monted on truck, etc. And the CLW brand cranes are from 2.5ton to 20 ton, and much bigger for different trucks. Chengli Special Automobile Co., Ltd. coulkd design and produce the trucks according to customers’ requirements. More information, please feel free to contact with us.
If you'e interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of dongfeng 10tons knuckle crane boom mounted on truck as below
| Product name | Dongfeng 153 6*4 LHD/RHD 10tons knuckle crane boom mounted on truck for sale | |
| Chassis type | ZZ1047 | |
| Parameters | Overall dimension length/width/height (mm) | 11945×2500×3850,3750 |
| Cargo body dimension (L*W*H)(mm) | 8500,8200×2294×550,800 | |
| GVW(kg) | 25000 (Kg) | |
| Kerb Mass(kg) | 12805 (Kg) | |
| Rated mass(kg) | 12000 (Kg) | |
| Approach angle/ Departure angle(mm) | 32/12 (°) | |
| Front suspension/rear suspension(mm) | 1245/3500, | |
| Fuel Type | diesel | |
| Max Speed | 85 | |
| Engine | Type | B210 33 |
| Displacement/Power(kw) | 5900hp/210hp | |
| Manufacturer | CUMMINS | |
| Chassis | Drive Type | 6*4 |
| Wheelbase(mm) | 5900+1300 | |
| Tread(front/rear) | 1940/1860/1860 (mm) | |
| Transmission | 8 forward gear,1 reverse gear, mechanical transmission | |
| Braking system | Air braking | |
| Cab | Dongfeng 153 6*4 one row and a half driver cab with original air conditioner | |
| Number of spring axle(front/rear) | 8/10+8 | |
| Tire Type | 10.00-20 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8500,8200×2294×550,800 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 10T telescopic crane boom | |
| The color of the whole truck is upon request. | ||
