best seller SINO TRUK HOWO 4*2 LHD 95hp Euro 5 2T telescopic boom mounted on truck for sale,customized truck with crane
best seller SINO TRUK HOWO 4*2 LHD 95hp Euro 5 2T telescopic crane boom mounted on truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer of truck with crane, truck mounted crane, dump truck with crane, cargo truck with crane, telescopic crane mounted on truck, etc. With many years’ experience in manufacturing, Chengli Special Automobile Co., Ltd. could manufacture and supply 4*2 small truck with crane, 4*4 truck with crane, 6*2 dump truck with crane, 6*4 cargo truck with crane, 8*4 crane monted on truck, etc. And the CLW brand cranes are from 2.5ton to 20 ton, and much bigger for different trucks. Chengli Special Automobile Co., Ltd. coulkd design and produce the trucks according to customers’ requirements. More information, please feel free to contact with us.
Customized truck-mounted craneis also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The truck-mounted crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

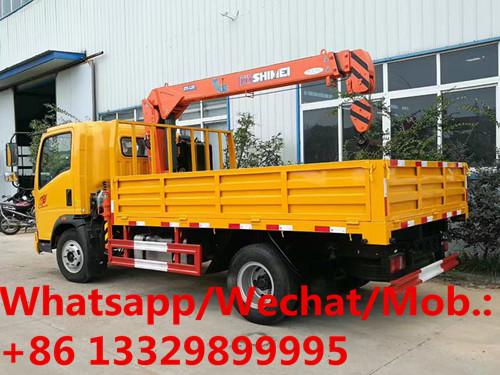

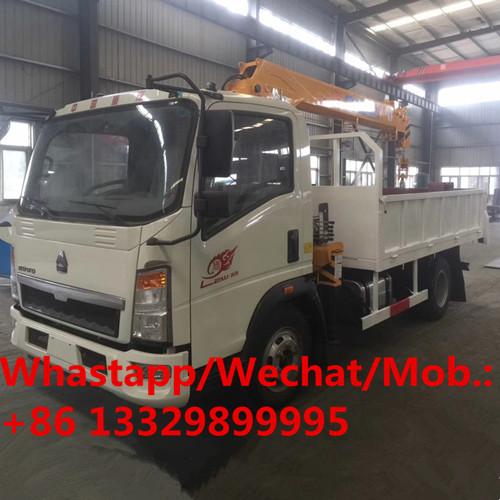

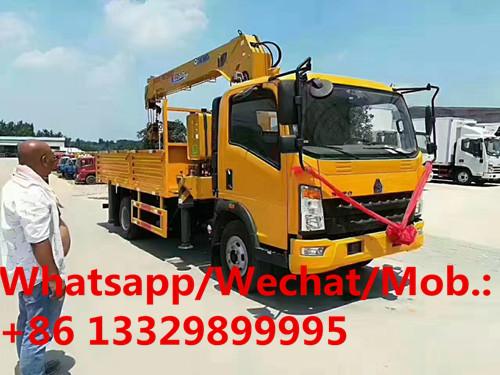

More pictures of SINO TRUK HOWO 2tons telescopic crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! SINO TRUK HOWO 2tons telescopic truck with crane for sale
high quality and competitive price SINO TRUK HOWO 2tons telescopic truck mounted on crane for sale
the specification of SINO TRUK HOWO 4*2 2T telescopic crane boom mounted on truck as below
| Product name | SINO TRUK HOWO 4*2 LHD 2ton truck with crane(telescopic boom) | |
| Truck chassis | ZZ1048D17EB1 | |
| Parameters | Overall dimension length/width/height (mm) | 5995×2520,2350,2250×3200,2900,2700,3470 (mm) |
| Cargo body dimension (L*W*H)(mm) | 3450,3260×2400,2300,2150×600,550,400 (mm) | |
| GVW(kg) | 4495 (Kg) | |
| curb Mass(kg) | 3805 (Kg) | |
| Rated mass(kg) | 495 (Kg) | |
| Approach angle/ Departure angle(mm) | 20/16 (°) | |
| Front suspension/rear suspension(mm) | 1175/1520 (mm) | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | YN38CRE1 |
| Displacement/Power(kw) | 3760ml/70KW/95hp; | |
| Manufacturer | Yunnei engine; | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 3300 | |
| Tread(front/rear) | 1825/1615 | |
| Transmission | Xiao 8 speed transmission, manual | |
| Braking system | Air braking | |
| Cab | 2080mm single row driver cab | |
| Number of spring axle(front/rear) | 3/5+3 | |
| Tire Type | 825R16 | |
| Air-condition | Choose to fix | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 3450,3260×2400,2300,2150×600,550,400 (mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 2ton telescopic boom | |
| Max lifting mass | 2000kgs | |
| Sections | 2/3 | |
| Working radius | 5m/7m | |
| Lifting height | 7m/9m | |
| Rotation degree | ±360°full rotation, full hydraulic | |
