customized cheapest weichai 300hp 20tons telescopic boom mounted on truck for sale, HOT SALE! cargo truck with crane
customized cheapest price weichai 300hp diesel 20tons telescopic boom mounted on truck for sale, HOT SALE! cargo truck with crane
Chengli Special Automobile Co., Ltd. is the leading manufacturer of truck with crane, truck mounted crane, dump truck with crane, cargo truck with crane, telescopic crane mounted on truck, etc. With many years’ experience in manufacturing, Chengli Special Automobile Co., Ltd. could manufacture and supply 4*2 small truck with crane, 4*4 truck with crane, 6*2 dump truck with crane, 6*4 cargo truck with crane, 8*4 crane monted on truck, etc. And the CLW brand cranes are from 2.5ton to 20 ton, and much bigger for different trucks. Chengli Special Automobile Co., Ltd. coulkd design and produce the trucks according to customers’ requirements. More information, please feel free to contact with us.
Customized truck-mounted craneis also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The truck-mounted crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're interested in our truck with crane, please feel free to send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.

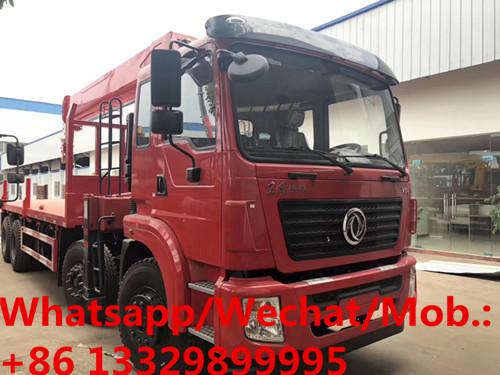

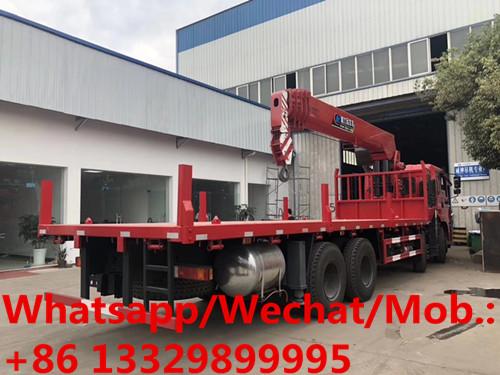

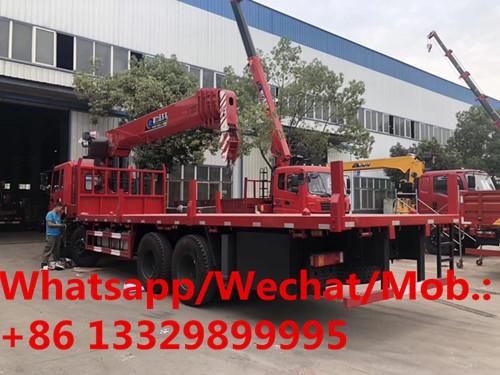

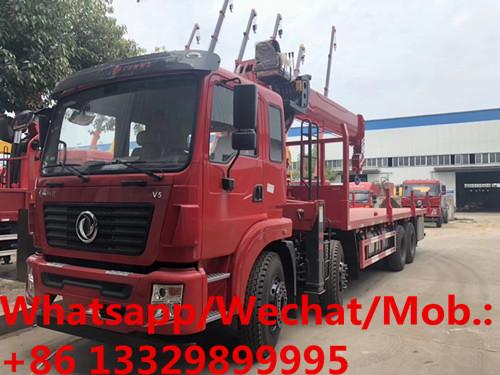

More pictures of dongfeng jincheng 8*4 LHD 20tons telescopic crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
the specification of dongfeng jincheng 20tons truck with crane as below
| Product name | Dongfeng jincheng 20tons telescopic boom mounted on truck for sale | |
| Chassis type | EQ1310GSZ5DJ2 | |
| Parameters | Overall dimension length/width/height (mm) | 11200,12000×2500×3980,3850 |
| Cargo body dimension (L*W*H)(mm) | 8200/8500*2400*550 | |
| GVW(kg) | 31000 (Kg) | |
| Kerb Mass(kg) | 19355 (Kg) | |
| Rated mass(kg) | 11450 (Kg) | |
| Approach angle/ Departure angle(mm) | 30/15 (°) | |
| Front suspension/rear suspension(mm) | 1515/2735 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | WP7.300E51 |
| Displacement/Power(kw) | 7470ml/220KW/300hp | |
| Manufacturer | Weichai | |
| Chassis | Drive Type | 8*4 |
| Wheelbase(mm) | 2150+4250+1350 | |
| Front tread | 2010/2010(mm) | |
| Rear tread | 1860/1860 | |
| Transmission | 10 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | Dongfeng jincheng luxurious driver cab | |
| Number of spring axle(front/rear) | 9/9/13 | |
| Tire Type | 11.00R20 16PR | |
| Air-condition | Choose to install | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8500/8200*2400*550 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 20tons 6sections telescopic crane boom | |
| Lifting height | 22.5m | |
| Working radius | 20.5m | |
| Rotation | Full hydraulic, full rotation | |
| The color of the whole truck is upon request. | ||
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Email: truck0011@163.com;
QQ: 504873236
