high quality and best price SHACMAN delong 8*4 LHD 340hp 30T knuckle crane boom mounted on truck for sale, truck crane
high quality and best price SHACMAN brand 8*4 LHD 340hp 30T knuckle crane boom mounted on truck for sale, HOT SALE! 30Tons folded truck with crane
Truck crane ,also called crane truck ,truck with crane ,truck mounted crane ,truck with telescopic boom crane ,truck with folding arm crane ,truck with knucle crane ,truck with hydraulic crane ,mobile crane truck ,truck with crane arm ,small truck with crane 3 ton ,truck mounted crane 3.2 ton ,mobile crane truck 6,3 ton ,truck with crane 7 ton ,truck with crane 8 ton ,10 ton crane truck for sale ,china 12 ton crane on sale, etc.
CLW truck mounted crane is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
If you're interested in our truck with crane, please feel free to contact with Ms. Anita Deng by Email: truck0011@163.com or by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com.
SHACMAN brand 8*4 LHD 30tons knuckle crane boom mounted on cargo truck, adopts SHACMAN 8*4 LHD diesel truck chassis, Delong M3000 one row and a half driver cab, 2100+4575+1400mm wheelbase, WP10.336E53 weichai 336hp diesel Euro Ⅴ engine, fastgear 12 speed manual gearbox, MAN 7.5tons front axle/MAN 16tons dual grade rear axles, 12.00R20 rail tires, etc.
Clients choose to install CLW Brand high quality 30tons knuckle crane boom. The cargo body dimension (L*W*H): 8300,8400×2450×600,800(mm).

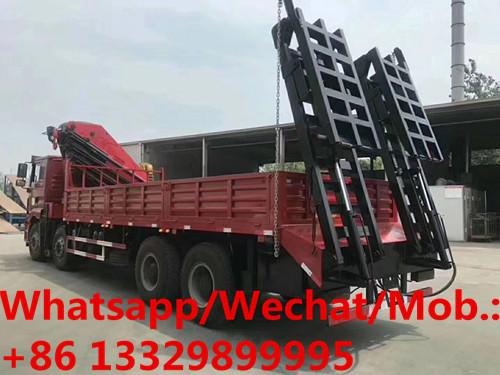

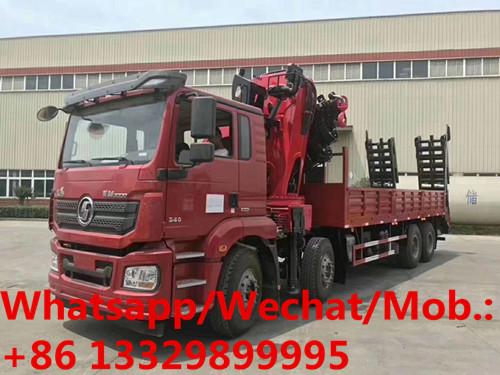

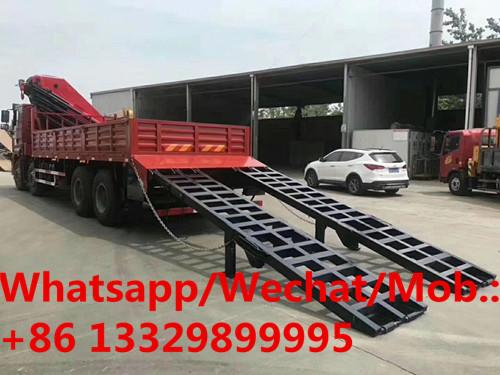

More pictures of Shamcan Brand 30tons knuckle crane boom mounted on truck as below.
The specification of SHACMAN brand 8*4 LHD 30tons knuckle crane boom mounted on truck as below
| Product name | SHACMAN brand 8*4 LHD 30tons knuckle crane boom mounted on truck for sale | |
| Chassis type | SX1310MB6 | |
| Parameters | Overall dimension length/width/height (mm) | 12000×2550×3980 |
| Cargo body dimension (L*W*H)(mm) | 8300,8400×2450×600,800 | |
| GVW(kg) | 31000 (Kg) | |
| Kerb Mass(kg) | 20800 (Kg) | |
| Rated mass(kg) | 10070,10005 (Kg) | |
| Approach angle/ Departure angle(mm) | 16/10 (°) | |
| Front suspension/rear suspension(mm) | 1525/2400 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | WP10.336E53 |
| Displacement/Power(kw) | 9726ml/247KW/336hp | |
| Manufacturer | WEICHAI | |
| Chassis | Drive Type | 8*4 |
| Wheelbase(mm) | 2100+4575+1400 | |
| Tread(front/rear) | 2036/2036, 1860/1860 (mm) | |
| Transmission | Fastgear 12 speed manual gearbox | |
| Braking system | Air braking | |
| Cab | SHACMAN Delong M3000 luxurious driver cab | |
| Number of spring axle(front/rear) | 10/10/12 | |
| Tire Type | 12.00R20 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8300,8400×2450×600,800 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 30T 6 sections knuckle crane boom | |
| Lifting height | 19.5m | |
| Working radius | 16.2m | |
| The color of the whole truck is upon request. | ||
