Dongfeng brand 6*4 12tons-14tons telescopic crane boom mounted on truck for sale, cargo truck with crane for sale
Dongfeng brand 6*4 12tons-14tons telescopic crane boom mounted on truck for sale, cargo truck with crane for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer of truck with crane, truck mounted crane, dump truck with crane, cargo truck with crane, telescopic crane mounted on truck, etc. With many years’ experience in manufacturing, Chengli Special Automobile Co., Ltd. could manufacture and supply 4*2 small truck with crane, 4*4 truck with crane, 6*2 dump truck with crane, 6*4 cargo truck with crane, 8*4 crane monted on truck, etc. And the CLW brand cranes are from 2.5ton to 20 ton, and much bigger for different trucks. Chengli Special Automobile Co., Ltd. coulkd design and produce the trucks according to customers’ requirements. More information, please feel free to contact with us.
Customized truck-mounted craneis also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The truck-mounted crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
Website: www.trucksinchina.com
Whatsapp/Mob./Wechat: 0086 13329899995.
Email: truck0011@163.com

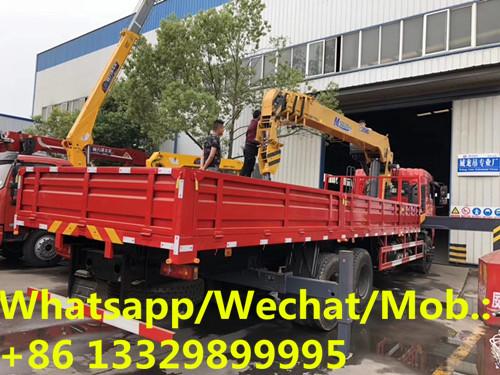

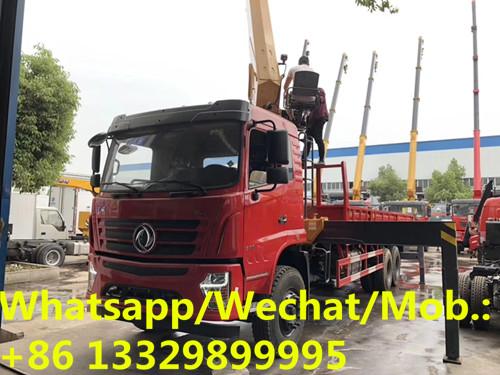

More pictures of dongfeng brand 6*4 LHD 12tons-14tons telescopic crane boom mounted on truck as below.
Customized dongfeng brand 6*4 LHD 240hp diesel 12t-14tons telescopic crane boom mounted on truck adopts dongfeng zhuandi truck chassis, 5900+1300mm wheelbase, fastggear 8/9 speed gearbox, 5tons front axle/10tons double strengthen rear axle, 1100R20 rail tires, D913 one row and a half luxurious driver cab with power steering, air cut braking, etc.
The overall dimension(L*W*H) of dongfeng truck with crane is 11950×2500×3850,3650 (mm); while the cargo body box dimension(L*W*H) is,8300,8500×2290×550,600 (mm). Clients choose to install CLW Brand 12tons-14tons telescopic/knuckle crane boom.
The specification of dongfeng 12tons-14tons telescopic crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | Dongfeng brand 6*4 LHD 12-14tons telescopic crane boom mounted on truck for sale | |
| Chassis type | QL5160XXYARFRY | |
| Parameters | Overall dimension length/width/height (mm) | 11950×2500×3850,3650 |
| Cargo body dimension (L*W*H)(mm) | 8300,8500×2290×550,600 | |
| GVW(kg) | 25000 (Kg) | |
| Kerb Mass(kg) | 16000 (Kg) | |
| Rated mass(kg) | 8805,8870 (Kg) | |
| Approach angle/ Departure angle(mm) | 29/17 (°) | |
| Front suspension/rear suspension(mm) | 1250/3500 | |
| Fuel Type | diesel | |
| Max Speed | 85 | |
| Engine | Type | YC6A240-50 |
| Displacement/Power(kw) | 7520ml/177KW/240hp | |
| Manufacturer | Dongfeng | |
| Chassis | Drive Type | 6*4 |
| Wheelbase(mm) | 5900+1300 | |
| Tread(front/rear) | 1965; 1860/1860 (mm) | |
| Transmission | Fastgear 8/9 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | Dongfeng D913 one row and a half driver cab | |
| Number of spring axle(front/rear) | 9/10 | |
| Tire Type | 11.00R20 | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8300,8500×2290×550,600 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 12TONS-14TONS telescopic/knuckle crane boom | |
| The color of the whole truck is upon request. | ||
