FAW brand 4*2 LHD 180hp 6.3tons knuckle crane boom mounted on truck for sale, FAW folded truck with crane for sale
HOT SALE! JIEFANG FAW brand 4*2 LHD 180hp 6.3tons knuckle crane boom mounted on truck for sale, FAW folded truck with crane for sale
Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale,etc.
A crane mounted on a truck carrier provides the mobility for this type of crane. This crane gas twp parts: the carrierm which offer to be offered as the lower; while the lifting component which includes the boom refered as the upper. These are mated tog through a turnable, allowing the upper to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane boom. THe upper is usually powered via hydraulics run through the turnable from the pump mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down to the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turnable of aging newer design cranes.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
FAW brand 4*2 LHD 6.3tons knuckle crane boom adopts FAW J6L one row and a half driver cab, 5000mm wheelbase, CA4DK1-18E51 180hp diesel Euro 5 engine, 8 speed gearbox, etc.
The cargo body box dimension(L*W*H)of FAW brand 6.3tons knuckle crane boom mounted on truck is 5465×2300×600(mm), client choose high quality CLW brand 6.3tons or XCMG brand 6.3tons telescopic/knuckle crane boom mounted on FAW brand truck.

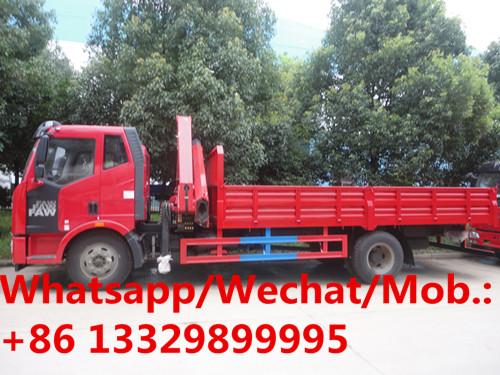

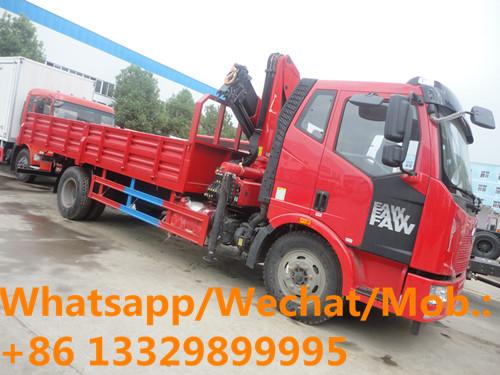

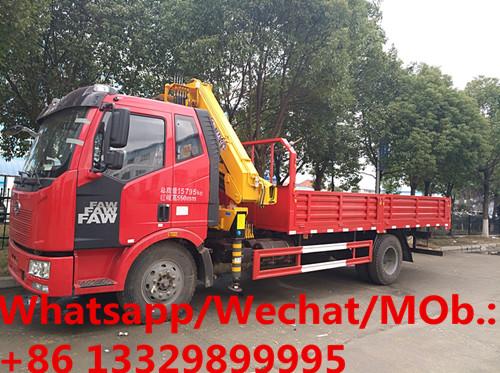

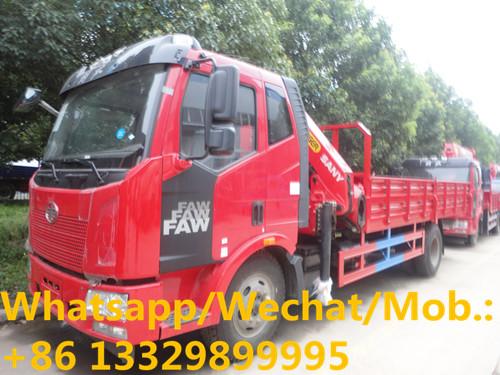

More pictures of FAW brand 6.3tons knuckle crane boom moounted on truck as below
Main technical parameters of FAW 6.3tons knuckle crane boom mounted on truck as below.
| Product name | FAW brand 4*2 LHD 6.3tons boom mounted on truck for sale | |
| Chassis type | CA1160 | |
| Parameters | Overall dimension length/width/height (mm) | 9000×2495×3550 |
| Cargo body dimension (L*W*H)(mm) | 5465×2300×600(mm) | |
| GVW(kg) | 15600 (Kg) | |
| Kerb Mass(kg) | 9660 (Kg) | |
| Rated mass(kg) | 5745 (Kg) | |
| Approach angle/ Departure angle(mm) | 17/10 (°) | |
| Front suspension/rear suspension(mm) | 1400/2600 | |
| Fuel Type | diesel | |
| Max Speed | 102 | |
| Engine | Type | CA4DK1-18E51 |
| Displacement/Power(kw) | 4764ml/139KW/190hp | |
| Manufacturer | DACHAI | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 5000 | |
| Tread(front/rear) | 1800/1800 (mm) | |
| Transmission | Fastgear 8 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | FAW brand one row and a half driver cab | |
| Number of spring axle(front/rear) | 7/10+3 | |
| Tire Type | 900R20 rail tires | |
| Air-condition | Original air conditioner | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5465×2300×600(mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 6.3tons 3/4 sections knuckle crane boom | |
| Crane boom lifting height | 11m/13m | |
| Crane boom working radius | 8m/9.92m | |
| Rotation | Full hydraulic, full rotation | |
| The color of the whole truck is upon request. | ||
