DONGFENG TINAJIN 4*2 LHD 180hp diesel Euro 5 8tons telescopic cargo truck with crane for sale， truck with crane
DONGFENG TINAJIN 4*2 LHD 180hp diesel Euro 5 8tons telescopic cargo truck with crane for sale, HOT SALE! dongfeng truck mounted on crane
The truck-mounted craneis also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The truck-mounted crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc.
As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Today, we will introduce hot sale dongfeng tianjin 8tons telescopic truck with crane as below

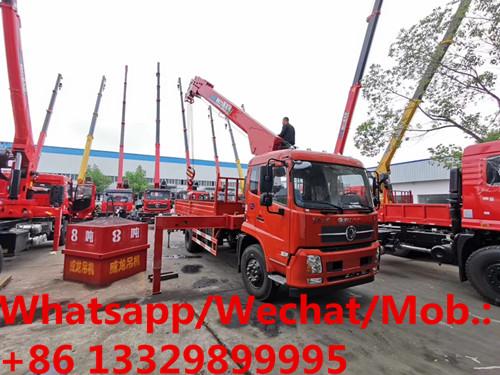

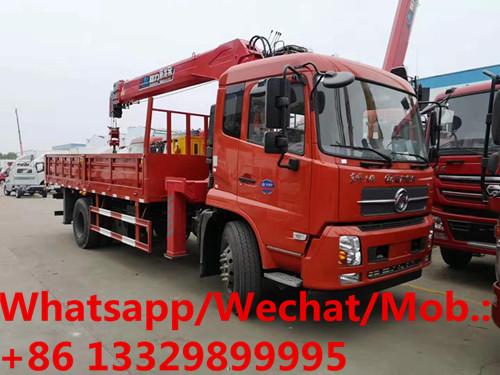

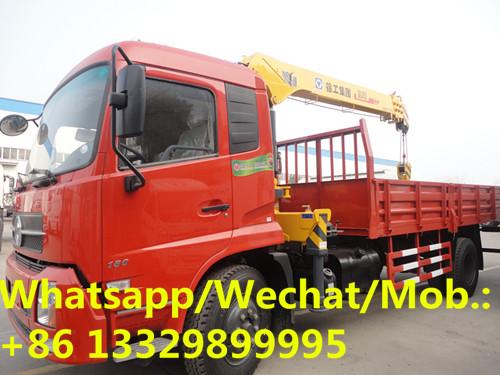

HOT SALE! dongfeng tianjin 8tons telescopic crane boom mounted on truck for sale
High quality and competitive price dongfeng tianjin 180hp diesel 8tons telescopic truck with crane for sale
Customized dongfeng Tianjin 4*2 LHD 8tons telescopic crane adopts dongfeng Tianjin one row and a half driver cab, 5000mm wheelbase, 8 speed gearbox, 4.5tons front axle/9tons rear axle, 10.00R20 rail tires, etc.
The overall dimension of dongfeng Tianjin 4*2 LHD 8tons telescopic crane boom mounted on truck is 9000×2550×3650(mm), while the cargo box body dimension(L*W*H) is 5700×2400,2450×600(mm). Client chooses to install CLW brand/XCMG brand 8tons telescopic/knuckle crane boom.
| Product name | Dongfeng Tianjin 4*2 8tons telescopic boom mounted on truck for sale | |
| Chassis type | DFH1180BX1DV | |
| Parameters | Overall dimension length/width/height (mm) | 9000×2550×3650, |
| Cargo body dimension (L*W*H)(mm) | 5700×2400,2450×600 | |
| GVW(kg) | 18000 (Kg) | |
| Kerb Mass(kg) | 10300 (Kg) | |
| Rated mass(kg) | 7505 (Kg) | |
| Approach angle/ Departure angle(mm) | 20/11 (°) | |
| Front suspension/rear suspension(mm) | 1430/2570 | |
| Fuel Type | diesel | |
| Max Speed | 100 | |
| Engine | Type | ISB180 50 |
| Displacement/Power(kw) | 5900ml/132KW/180hp | |
| Manufacturer | Dongfeng Cummins Engine Co.,Ltd | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 5000 | |
| Tread(front/rear) | 1815/1820 (mm) | |
| Transmission | 8 speed gearbox, manual | |
| Braking system | Air braking | |
| Cab | Dongfeng one and a half driver cab | |
| Number of spring axle(front/rear) | 10/11+10 | |
| Tire Type | 10.00R20 rail tires* 6+1 | |
| Air-condition | Choose to install | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5700×2400,2450×600 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 8T 4/5 sections telescopic crane boom | |
| Crane boom lifting height | 15.5m/18.5m | |
| Crane boom working radius | 13.5m/16.5m | |
| Rotation | Full hydraulic, full rotation | |
| The color of the whole truck is upon request. | ||
