HOT SALE! cheapest price dongfeng yuhu 140hp diesel Euro 5 5tons telescopic crane mounted on truck, truck with crane
HOT SALE! cheapest price dongfeng yuhu 140hp diesel Euro 5 5tons telescopic crane mounted on truck, customized best price dongfeng 5.1m length cargo truck with crane for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
The truck-mounted craneis also called crane truck, truck mounted crane, truck crane, truck with crane, etc. The truck-mounted crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Dongfeng yuhu series 5tons-6.3tons truck with crane, adopts dongfeng D912 driver cab, 4500mm wheelbase, yuchai 140hp diesel Euro 5 engine, fastgear 8 speed gearbox, 2.7tons front axle/8tons rear axle, 825R20 rail tires, etc.
And the overall dimension of Dongfeng yuhu truck with crane is 8150×2500×3850,3650,3450(mm); while the cargo body box dimension(L*W*H) is 5100×2200,2300×550(mm). Client chooses to install high quality CLW brand/XCMG brand 5tons-6.3tons knuckle/telescopic crane boom.

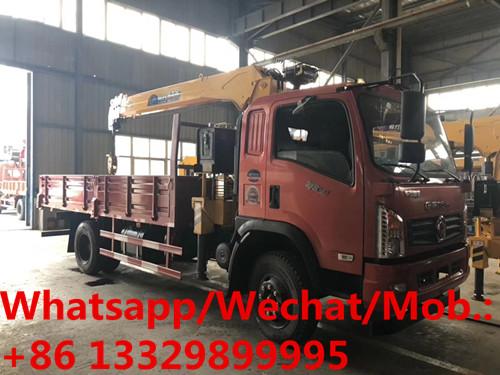

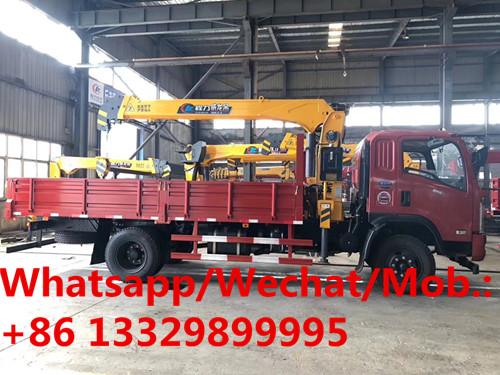

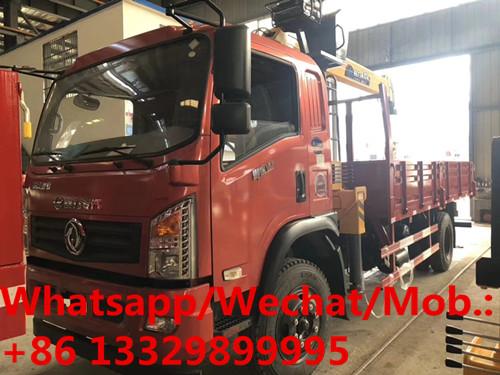

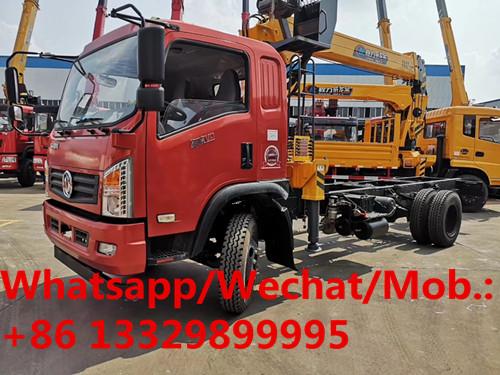

More pictures of Dongfeng yuhu 5tons telescopic crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
The specification of DONGFENG YUHU brand 5-6.3tons telescopic crane boom as below
| Product name | Dongfeng yuhu 5tons-6.3tons telescopic crane boom mounted on truck for sale | |
| Chassis type | DYQ1121D5AA | |
| Parameters | Overall dimension length/width/height (mm) | 8150×2500×3850,3650,3450 |
| Cargo body dimension (L*W*H)(mm) | 5100×2200,2300×550 | |
| GVW(kg) | 13580(Kg) | |
| Kerb Mass(kg) | 7900 (Kg) | |
| Rated mass(kg) | 5485 (Kg) | |
| Approach angle/ Departure angle(mm) | 25/22 (°) | |
| Front suspension/rear suspension(mm) | 24/17 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | YC4S140-50 |
| Displacement | 3767ml | |
| Rated power | 103KW/140Hp | |
| Manufacturer | Yuchai | |
| Chassis | Drive Type | 4*2 LHD |
| Wheelbase(mm) | 4500 | |
| Tread(front/rear) | 1760/1690 (mm) | |
| Transmission | 8 speed gearbox, manual | |
| Braking system | Air braking | |
| Number of spring axle(front/rear) | 9/11+8 | |
| Tire Type | 825R20 | |
| Air-condition | Choose to install | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5100×2200,2300×550(mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 5tons/6.3tons telescopic crane boom | |
| Rotation | Full hydraulic, full rotation | |
| The color of the whole truck is upon request. | ||
