high quality Dayun 4*2 LHD 170hp diesel 6.3tons telescopic truck with crane for sale, mobile crane mounted on truck
Chengli Special Autmobile is the leading manufacturer and supplier of truck with crane in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply cargo truck with crane, dump truck mounted crane, crane truck, etc. As a professional truck-mounted crane manufacturer in China, the truck-mounted crane for sale is from 2 ton to 32 ton. The drive type of our truck mounted crane are 4x2, 6x2, 6x4,8x4,etc. The crane we produce are telescopic boom truck mounted crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc.More information, please feel free to contact with Ms. Anita.
CLW truck mounted crane is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes of CLW brand truck mounted crane manufactured by Chengli Special Automobile Co., Ltd. as below.
· Optional: from 2 ton to 200 ton lifting capacity crane truck
· Optional: straight arm and floding arm truck crane with or without remote control
· Optional: different famous crane brand: HIAB, Shimei, Zoomlion, Sany, Chengli balong, etc.
· Optional: different famous chassis brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, T-king, Dayun, Yuejin, JMC, JAC, etc.
· Factory direct sale, low price and good quality.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

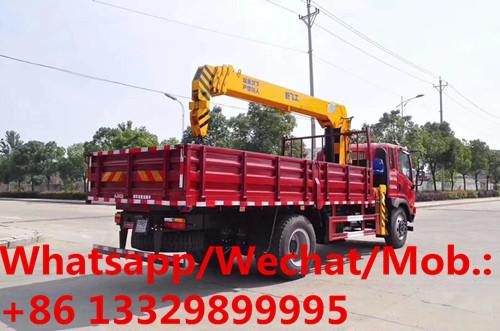

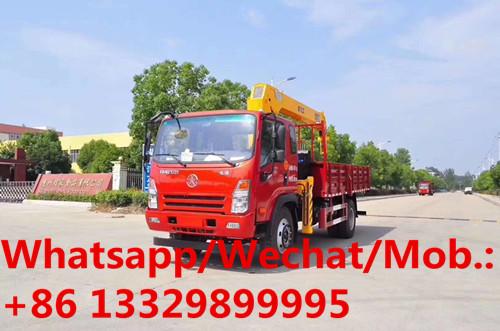

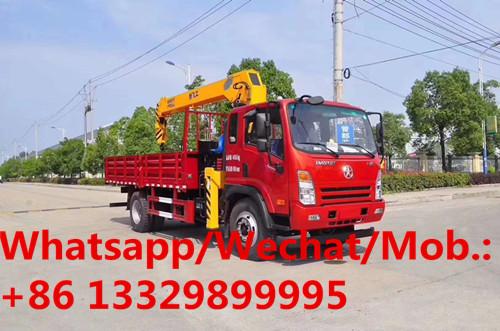

More pictures of Dayun brand 4*2 LHD 6.3tons truck with crane manufactured by Chengli Special Automobile Co., Ltd. as below.
high quality and competitive price Dayun brand 6.3tons telescopic crane boom mounted on truck for sale
DAYUN brand 4*2 LHD diesel 6.3tons truck with crane, adopts dayun 2080mm one row and a half driver cab, 4400mm wheelbase, 10 speed gearbox, 10tons rear axle, 9.00R20 14PR* 6+1, YNF40E1 YUNNEI 170hp diesel engine, etc.
The dimension of cargo body box is 5000×2300×500,550,600 (mm); while the overall dimension of dayun 6.3tons telescopic crane mounted on truck is 8100×2400,2500×3895 (mm). Clients choose to install CLW Brand high quality 6.3tons telescopic crane boom.
Main technical parameters of DAYUN brand 5tons telescopic crane boom mounted on truck as below
| Product name | DAYUN brand 5tons telescopic crane boom mounted on truck for sale | |
| Chassis type | DYQ1121D5AA | |
| Parameters | Overall dimension length/width/height (mm) | 8100×2400,2500×3895 |
| Cargo body dimension (L*W*H)(mm) | 5000×2300×500,550,600 | |
| GVW(kg) | 14055(Kg) | |
| Kerb Mass(kg) | 9200 (Kg) | |
| Rated mass(kg) | 4660 (Kg) | |
| Approach angle/ Departure angle(mm) | 25/22 (°) | |
| Front suspension/rear suspension(mm) | 1220/1225 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | YNF40E1 |
| Displacement | 3920ml | |
| Rated power | 125KW/170Hp | |
| Manufacturer | Yunnei | |
| Chassis | Drive Type | 4*2 LHD |
| Wheelbase(mm) | 4400 | |
| Tread(front/rear) | 1833/1800 (mm) | |
| Transmission | 10 speed gearbox, manual | |
| Braking system | Air braking | |
| Number of spring axle(front/rear) | 9/9+6 | |
| Tire Type | 9.00R20 | |
| Air-condition | Choose to install | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 8100×2400,2500×3895 (mm) |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 6.3tons telescopic crane boom | |
| Rotation | Full hydraulic, full rotation | |
| The color of the whole truck is upon request. | ||
