SINO TRUK WANGPAI 6.3tons-8tons telescopic crane boom mounted on truck for sale, cargo truck with telescopic crane boom
SINO TRUK WANGPAI 6.3tons-8tons telescopic crane boom mounted on truck for sale, cargo truck with telescopic crane boom for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
CLW truck mounted crane is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes of CLW brand truck mounted crane manufactured by Chengli Special Automobile Co., Ltd. as below.
· Optional: from 2 ton to 200 ton lifting capacity crane truck
· Optional: straight arm and floding arm truck crane with or without remote control
· Optional: different famous crane brand: HIAB, Shimei, Zoomlion, Sany, Chengli balong, etc.
· Optional: different famous chassis brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, T-king, Dayun, Yuejin, JMC, JAC, etc.
· Factory direct sale, low price and good quality.
if you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

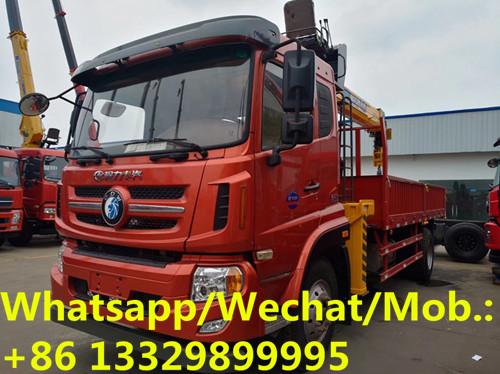

More pictures of SINO TRUK WANGPAI brand 6.3tons-8tons telescopic crane boom mounted on truck for sale
HOT SALE! SINO TRUK WANGPAI 8tons telescopic crane boom mounted on truck
high quality and competitive price 8T cargo truck with telescopic crane boom for sale
Customized SINO TRUK WANGPAI brand 4*2 LHD 6.3tons-8tons telescopic crane boom mounted on truck adopts SINO TRUK WANGPAI W5D 2260mm one row and a hlaf driver cab, yuchai 180hp diesel engine, 5300mm wheelbase, fastgear 8 speed manual gearbox, 10tons strength rear axle,10.00R20 rail tires, air conditioner, etc.
The dimension of cargo body box is 5600,5850,6100×2380×600 (mm), and the overall dimension of Dongfeng T5 4*2 LHD 8tosn telescopic truck mounted with crane is 9000×2500×3700,3800 (mm). Client choose to install CLW Brand high quality 6.3tons-8tons telescopic/knuckle crane boom.
The specification of Dongfeng T5 4*2 LHD 8T telescopic crane boom mounted on truck as below.
| Product name | ZHONGQI WANGPAI brand 4*2 8tons telescopic boom mounted on truck for sale | |
| Chassis type | CDW1180A2N5 | |
| Parameters | Overall dimension length/width/height (mm) | 9000×2500×3700,3800 |
| Cargo body dimension (L*W*H)(mm) | 5600,5850,6100×2380×600 | |
| GVW(kg) | 18000(Kg) | |
| Kerb Mass(kg) | 10000,11000 | |
| Rated mass(kg) | 7805,6805 | |
| Approach angle/ Departure angle(mm) | 24/18 (°) | |
| Front suspension/rear suspension(mm) | 1460/2240 | |
| Fuel Type | diesel | |
| Max Speed | 90 | |
| Engine | Type | YC6J180-52 |
| Displacement/Power(kw) | 6494ml/132KW/180hp | |
| Manufacturer | Yuchai | |
| Chassis | Drive Type | 4×2 |
| Wheelbase(mm) | 5300 | |
| Tread(front/rear) | 1940/1860 (mm) | |
| Transmission | Fastgear 8 speed manual gearbox | |
| Braking system | Air braking | |
| Number of spring axle(front/rear) | 11/11+9 | |
| Tire Type | 10.00R20 * 6+1 | |
| Air-condition | Choose to install | |
| Upper part(cargo van and crane boom) main parameters | ||
| Upper body | Cargo body dimension | 5600,5850,6100×2380×600 |
| Material | Carbon steel | |
| Side sheet thickness | 2mm thickness | |
| Bottom sheet thickness | 2mm thickness | |
| Painting | Upon request | |
| Crane boom main parameters | ||
| Crane boom | Choose to install CLW brand 6.3tons/8tons telescopic/knuckle crane boom | |
| Rotation | Full hydraulic, full rotation | |
| The color of the whole truck is upon request. | ||
