Customzied FAW RHD road cleaning sweeper truck for sale, HOT SALE! cheaper price street sweeping and washing vehicle
Customzied FAW brand RHD road cleaning sweeper truck for sale, HOT SALE! cheaper price street sweeping and washing vehicles
The standard devices of dongfeng street washing sweeper truck are as below.
2 middle-installed sweeping disks, CUMMINS 170hp auxiliary engine, Taiwan hydraulic valves, dali motor, German high pressure water pump(front-spraying/side spraying/middle-spraying/rear spraying(stainless steel sprayers)/side flushing-washing guns/dust tank self-cleaning device); universal high pressure roadside cleaning, Taiwan hydraulic valves units, weilong low-pressure pump(front-flushing), 4mm thickness stainless steel dust tank+ 4mm stainless steel water tank, stainless steel high pressure pipeline, German controller, rear part arrow light; oil, dust tank, and water tank are with anti-overflow or low alarm device; Reversing and washing state monitor; Anti-dumping garbage rollover protection and Overhaul safety protection;
20m high pressure flushing reel; Brush arm rotation mechanism uses German imported high-tech wear-resistant engineering spacer, butter-free; Integrated motion controller with one-button computer control.
The chosen part for the road sweeper truck is as below.
1, trash self-cleaning function is optional.
2, Reversing monitoring function is optional
3, front-flashing and rear sprinkling is optional
Main advantages of our China road sweeper truck:
- Mainly used for road sweeping and dust collection
- 7 cbm dust tank and 8 cbm water tank
- Dust collection disc is rear set
- 2 pcs sweeping brushes middle set, with front middle water spraying nozzles, rear with a flushing hose
- Spraying nozzles are mounted on sweeping disc, spraying water atomizatio, no dust pollution
- Equipped Cumins 170hp deputy engine driving fan machine for dust collection
- Other standard configuration
If you're interested in our road sweeper trucks, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

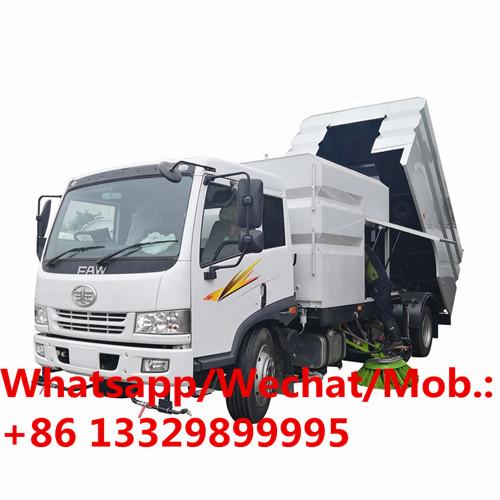

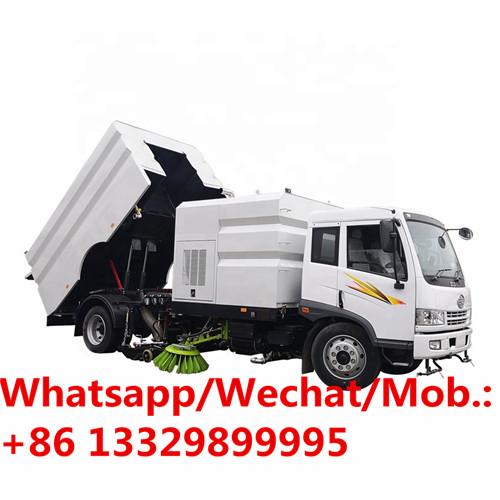

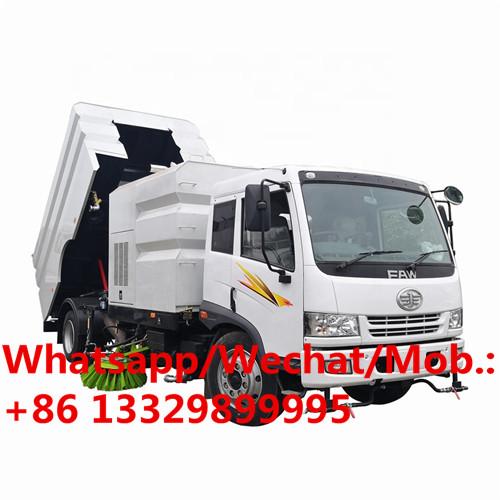

More pictures of FAW brand RHD road sweeper manufactured by Chengli Special Automobile Co., Ltd. as below.
high quality and best price FAW brand diesel road cleaning sweeper for sale
HOT SALE! FAW RHD road sweeping and washing truck for sale
Specifications of Road Cleaning Sweeper Truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | RHD road cleaning sweeper truck | Option |
| Model | CLW5160TXSCA3 | |
| Overall dimension | 9090*2500*3300(mm) | |
| Gross weight | 16000kg | |
| Curb weight | 11500kg | |
| Volume of tank | 7 cbm garbage tank, 8 cbm water truck | Customized |
| Material of tank | Stainless steel | |
| Control method | Control box in driving cab, auto sweepping and washing | |
| Max speed | 90km/h | |
| Equippped truck chassis | ||
| Brand | FAW flat cab |
Dongfeng,Sinotruk, Yuejin,HOWO, japan brand,etc |
| Wheel drive | 4x2,RHD(right hand drive) | LHD |
| Driving cab | Single row, 3 seats, with a sleeper, with A/C, radio | |
| Wheelbase | 5300mm | |
| Engine | FAW 165KW/220hp diesel engine | |
| Axle & wheel | 2 axle, 6 tyres | |
| Tire specification | 10.00R20 tires | |
| Sweeping system | ||
| No. of sweeping brush | 2 pcs | |
| Sweeping width | 3.0~3.2 meters | |
| Garbage suction disc | 1 unit, DN of suction hose is 120mm | |
| Water flushing nozzle | Front nozzles, middle nozzles, rear fog spray nozzles | |
| High pressure nozzle | 1 set, with 15m hose | |
| Dust collection system | ||
| Garbage tank | 7 cbm, stainless steel | |
| Water tank | 8 cbm, stainless steel | |
| Tank Auto-cleaning | With auto-cleaning water nozzle to clean the garbage tank | |
| Deputy engine | Cumins 125KW/170HP | |
| Fan machine | Free maintenance type | |
| Dust collection disc | Rear set | |
| Clutch | Stepless speed change | |
| Motor | HEQI motor | |
| Control switch | Siemens | |
| Emegency system | Manual pump emergency system | |
| Rear LED aorrow light | 2 units | |
| Rear gate | Hydrualic open and close | |
| Option | ||
| PLC control | Whole PLC one key computer control | |
| Dust tank cleaning device | Hydraulic water gun | |
| Side cleaning camera | Standard | |
| Reverse camera | Standard | |
