High quality JMC brand diesel 7cbm compacted garbage truck for sale, Hot sale! cheaper wastes collecting vehicle
HOT SALE! High quality JMC brand diesel 7cbm compacted garbage truck for sale, Hot sale! cheaper wastes collecting vehicle
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita.
Our CLW brand compactor garbage truck is constructed with 12# low alloy steeland 5mm, 4mm, 10mm steel.The body is fitted on the chassis by the truck beam.The body floor is fully sealed.All the sewage can go directly into the sewage tank,so as not to corrode the body and chassis .Moreover,it can also prevent the sewage leakage while the truck is driving on the road and avoid the secondary pollution.
If you're interested in our garbage compactor truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
JMC brand 4*2 LHD garbage compactor truck adopts JMC brand 4*2 LHD single row driver cab with front-reversible , 6 speed gearbox, manual, air cut brake, 7.50 rail tires, 3tons front axle/5.5tons rear axle, with air conditioner and power steering, etc.

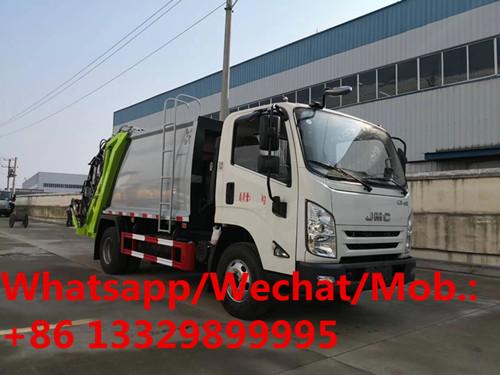

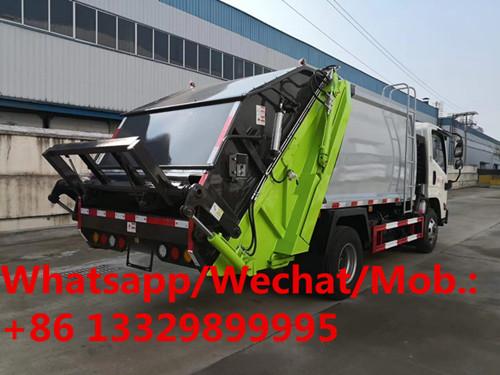

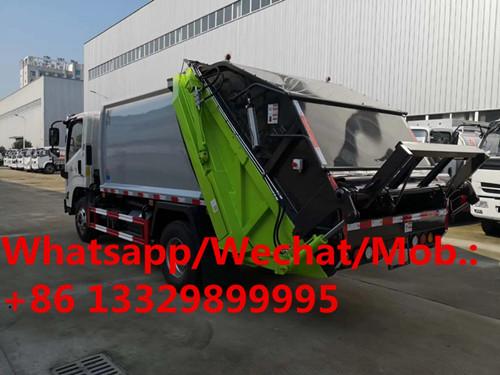

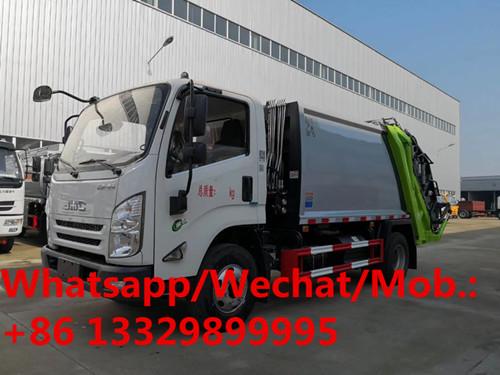

More pictures of JMC brand 7cbm garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Main technical parameters of JMC brand 7m3 garbage compactor truck as below.
| 1 | Product name |
JMC 4*2 LHD 7m3 garbage compactor truck |
| 2 | Truck chassis model |
JX1083TK25 |
| 3 | Overall dimension(L*W*H) |
7020,7250,7500×2250×2800 |
| 4 | Total mass(kgs) | 8210 |
| 5 | Curb mass(kgs) | 6400,6750 |
| 6 | Rated mass(kgs) | 1615,1265 |
| 7 | Volume | 7m3 |
| 8 | Real loading capacity | About 6tons |
| 9 | Max speed | 100kw/h |
| 10 | Wheelbase | 3815 |
| 11 | Axle nos. | 2 |
| 12 | Driver cab | JMC brand 4*2 LHD single row driver cab with front-reversible with power steering and air conditioner. |
| 13 | Approach/departure angle(°) | 20/12 |
| 14 | Front/rear suspension (mm) | 1155/2050 |
| 15 | Front/rear tread(mm) | 1680/1640 |
| 16 | Tire specification | 7.50R16LT 14PR |
| 17 | Spring | 8/7+7,9/9+8 |
| 18 | Engine model | JX4D30A5H |
| 19 | Rated power | 112KW/152hp |
| 20 | Displacement(ml) | 2892ml |
| 21 | Fuel type | Diesel |
| 22 | Emission standard | Euro 5 |
| 23 | Gearbox | 6 speed gearbox, manual |
| 24 | Front/rear axle | 3tons/5.5tons |
| 25 | Color | Different color upon request |
| 26 | Wastes van | Solid arc-shape box body of strength beam and steel plate welded |
| 27 | Wastes van material | High quality China standard light duty steel |
| 28 | Operation way | PLC control way |
| 29 | Loading and discharging way | Rear overturning mechanism |
| 30 | Compacted way | Bi-directional compression |
| 31 | Wastes compacting density | ≥0.8tons/m3 |
| 32 | One working circle time for loading and discharging | ≤30s |
| 33 | Max compressing force | ≥150KN |
| 34 | Max passing force | ≥180KN |
