high quality and best price FAW 4*2 LHD diesel 15cbm bulk oil tanker truck for sale, fuel tanker transported vehicle
The fuel tank truck is also called oil transportation truck, oil bowser truck, mobile refueling truck ,oil truck, refuel truck, oil delivery truck, fuel tanker truck, oil filling truck, etc.
The oil filling truck for sale is mainly used to transport oil, fuel, gasoline, diesel, etc. It can be equipped refueling machine and fuel pump to refuel for other automobile.
The shape of the tank is elliptical or rectangular and the material can be high quality carbon steel plate Q235 , stainless steel or aluminium alloy. Whole tank was divided into two compartments or more compartments with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move.
In order to prevent corrosion, the surface of the tank was printed anticorrosive paint and decorative paint. The middle side of the tank was equipped indicator which can indicate the filled oil volume when pump oil.
If you're interested in our fuel tanker truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
Competitive advantage fuel tanker truck series:
1 Applied carbon steel sheet Q235-A that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
Painting held more tolerance and coherence, can make sure the tank in good situation within 5 years.
6 According to customer’s needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as a single compartment or several compartments.
C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
D> At the end or side of tank, It can be installed 1-3 self-flow valve.

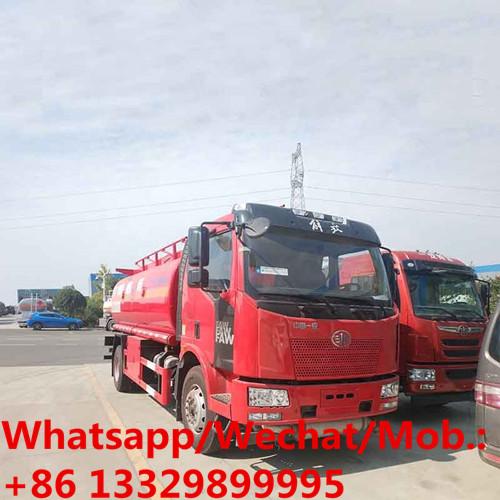

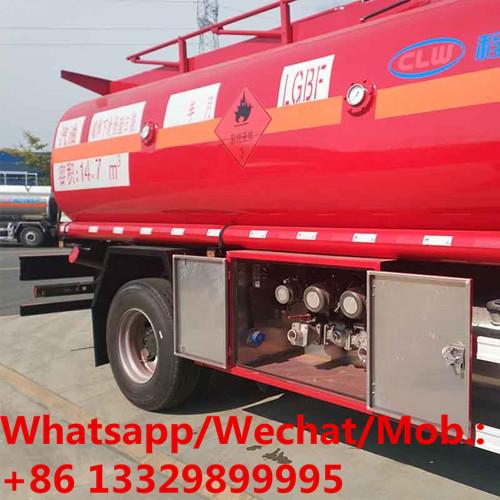

More pictures of FAW brand fuel tanker truck manufactured by Chengli Special Automobile Co., Ltd. as below.
main technical paramaters of FAW nramd carbon steel oil tanker truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| CLW5180GYYC5 FAW 4x2 Carbon Steel Fuel Tank Truck | |
| Model | CLW5180GYYC5 carbon steel fuel tank truck |
| Chassis brand & Year | FAW, condition new |
| Wheel Drive | 4x2, LHD |
| Volume | 14,700 liters |
| Overall Dimension | 8250×2500×3150(mm) |
| Gross Weight | 18000kg |
| Curb Weight | 8350kg |
| Rated Weight | 9650kg |
| Engine |
220HP Eruo5 diesel engine 6-cylinder, inline, Turbocharged, Intercooler, High pressure common-rail, Direction injection |
| Wheelbase | 4500mm |
| Tires: | 6+1, 10.00R20 radial tires |
| Cabin | FAW flat cabin, 3 seats, with a sleeper bed, with A/C |
| Transmission | Manual, FAST 8 front gears and 1 rear gear |
| Brake | Full air brake |
| Max Speed | 90km/h |
| Tank & Refuling System | |
| Tank Body | 12,000 liter carbon steel tank body, 4.5mm quality steel plate made |
| Compartment | One compartment, inside with anti-wave wall |
| Manhole | One manhole cover |
| Fuel Pump | One set fuel pump, with pump-in and pump-out function |
| Discharge valve | Aluminum valve DN65mm |
| Loading & unloading | 2 set 4m long hose DN65, with quick joints |
| PTO | Take power from gearbox, pneumatic control, and switch in driving cab |
| Fuel Dispenser | Computer control fuel refilling machine, it can set price or filling amount, to calculate how much price it is, with a small screen |
| Refilling nozzle | one refilling nozzle with 15m rubber hose reel |
| Safety Devices | |
| Safety valve | Foot mounted emergency cut-off valve |
| Manhole cover | with breathing valve, to balance inside tank pressure |
| Fire extinguisher | Two pcs |
| Exhaust pipe install | Front mounted under cab, prevent spark in back of tank |
| Spark arrestor | One pcs |
| Protective fence | Top and side fence |
