Customized SHACMAN brand diesel road sweeper and washing vehicle for sale, Cheaper street sweeping truck for sale
Customized SHACMAN brand diesel road sweeper and washing vehicle for sale, Cheaper street sweeping truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of road sweeper trucks in China. With many years’ development, we Chengli Special Automobile Co., Ltd. could offer ISUZU road sweeper truck, forland street sweeper truck, dongfeng brand road cleaning vehicle, JMC brand road sweeping vehicle, JAC brand street sweeper, FAW brand street sweeping vehicle, etc. More information, please feel free to contact with Ms. Anita.
he introduction function of road sweeper trucks manufactured by Chengli Special Automobile Co., Ltd. as below.
1, CLW brand road sweeper truck adopts the mixing way of sucking-sweeping to collect wastes, wet-dust removal, electro-hydraulic control, finished the sweeping work by the working way of hydraulic tipping and discharging.
2, CLW brand road sweeper truck, adopts auxiliary engine specially drives the fan and hydraulic system, assuring keeping working during driving and Continuity of the sweeping process.
3, CLW brand street sweeper adopts the structure layout of “middle installed 4* sweeping brushes+ spraying and dust-removal device+ Center partition+ rear installed nozzle”, which makes non-splashing of sand and gravel during cleaning. This kind of sweeping layout is easy to adjust and maintain the sweeping and sucking devices. Perfect vehicle passivity in transit operations.
4, The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, making sure automatic disconnection of the secondary engine from the fan when starting and stopping the engine without load, reducing the impact on the secondary engine, improving the reliability and service life of the auxiliary engine
5, Sweeping disk has the functions of automatic obstacle avoidance and automatic reset; obstacles automatically retract and automatically return to obstacles.
6, The rotating speed of the pan can be adjusted according to various cleaning conditions to ensure good cleaning effect under various pollution conditions.
7, CLW brand road sweeper adopts advanced, high-efficiency dedicated fans and fully floating nozzles that can be automatically leveled along the road providing good cleaning and long service life.
If you're interested in our road sweeper truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

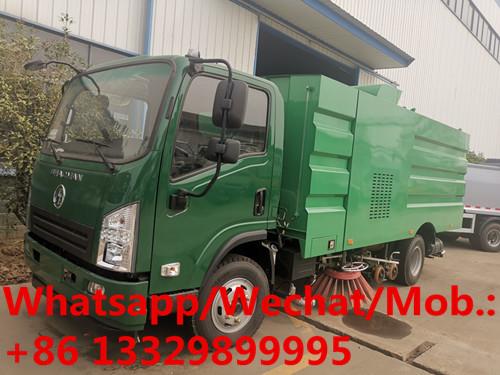

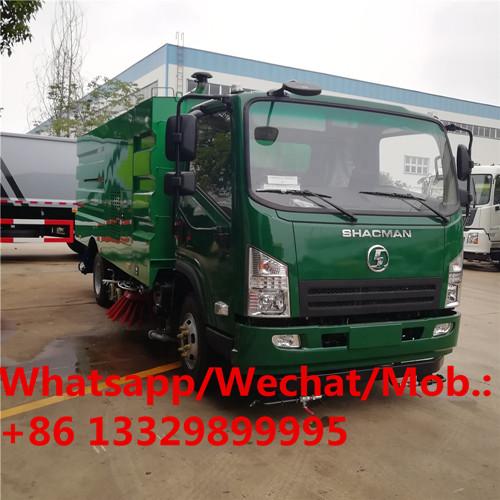

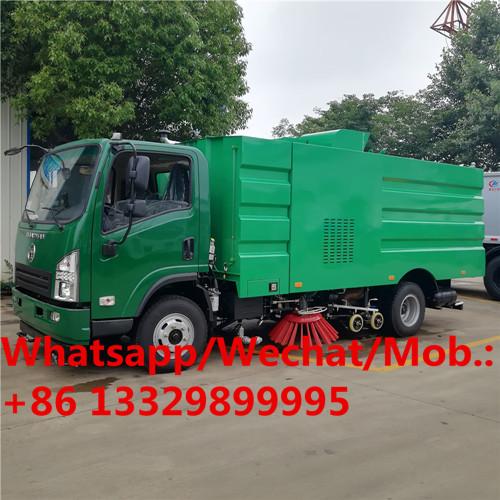

More pictures of SHACMAN brand diesel road sweeping and washing vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
main technical parameters of SHACMAN brand diesel street sweeper as below.
|
SHACMAN brand new road washing sweeper truck for sale The standard devices of SHACMAN brand street washing sweeper truck are as below. 2 middle-installed sweeping disks, middle-installed wider sucking nozzles, JMC 64KW super-charged auxiliary engine, Taiwan hydraulic valves, dali motor, German high pressure water pump, weilong low-pressure pump, 3mm thickness stainless steel dust tank+ 3mm stainless steel water tank, German controller, rear part arrow light; oil, dust tank, and water tank are with anti-overflow or low alarm device; Reversing and washing state monitor; Multiple voice instructions, Anti-dumping garbage rollover protection and Overhaul safety protection; 20m high pressure flushing reel; Brush arm rotation mechanism uses German imported high-tech wear-resistant engineering spacer, free butter; Precision cold bending seamless hydraulic hose; Motion controller one-button computer control. Main parameters of SHACMAN road washing and sweeping vehicle manufactured by Chengli Special Automobile Co., Ltd. |
||||
|---|---|---|---|---|
|
Truck model |
SHACMAN brand diesel 130hp road washing and sweeping vehicle for sale |
Remark |
||
|
Truck chassis model |
SX |
|
||
|
Wheelbase |
3800 mm |
|
||
|
Front/rear suspension |
1200/1800 |
|
||
|
Approach/departure angle |
16/23 |
|
||
|
Engine model |
Chassis engine |
YC4D130-33 |
|
|
|
Auxiliary engine model |
JE493ZG5 |
|
||
|
Engine rated power |
Chassis engine |
96KW |
|
|
|
Auxiliary engine |
64 kW |
|
||
|
Main engine Displacement(L) |
4.214 L |
|
||
|
Rated speed/(r/min) |
2800rpm |
|
||
|
Max.Torque |
420N.m/ 1400~1800rpm |
|
||
|
Emission standard |
Euro Ⅱ |
|
||
|
Max grade |
21% |
|
||
|
Gearbox |
FASTGEAR 6DS50T 6 speed |
|
||
|
Emission standard |
Euro Ⅱ |
|
||
|
Accelerate the noise outside the car |
≤84dB(A),Meet the noise two-stage requirements |
|
||
|
Max speed |
85 km/h |
|
||
|
Front axle |
1068/2.5T |
|
||
|
Rear axle |
1080/6T |
|
||
|
Clutch |
￠350diaphragm clutch￠350 |
|
||
|
Frame(mm) |
800*232(6) |
|
||
|
Suspension |
9/11+5 |
|
||
|
Fuel tank |
130L fuel tank Iron/130L |
|
||
|
Tires specification |
8.25R20/16PR (6+1) |
|
||
|
Brakes |
Running brake: Dual circuit compressed air brake |
|
||
|
Parking brake: Air discharging with spring control |
||||
|
Auxiliary brake: Engine exhaust brake |
||||
|
Cabin |
Fixed mechanical suspension, mechanical seat, air conditioning, electric doors and Windows, safety belt lock alarm, headlight adjustment, with SHACMAN mark; |
|
||
|
Others/其他 |
1. Exhaust auxiliary brake, exhaust brake. 2.100Ah maintenance-free battery, attached single-stage air filter. 3. Front and rear towing hook, Front bottom protection, spare tire;. |
|
||
|
Mass |
Curb mass |
7000 kg |
|
|
|
Max total mass |
8280 kg |
|
||
|
Dimension |
Overall dimension(L*W*H) |
6860*2200*2750 mm |
|
|
|
Mini ground clearance |
400 mm |
|
||
|
High pressure washing |
Speed |
3~20 Km/h |
|
|
|
Width |
3 m |
|
||
|
Water pressure |
12 MPa |
|
||
|
Water pump flow |
115 L/min |
|
||
|
Sucking and sweeping |
Sweeping effectiveness |
≥95% |
|
|
|
Maximum inhalation particle size |
110 mm |
|
||
|
Sucking and sweeping width |
3 m |
|
||
|
Max sweeping ability |
60000 m2/h |
|
||
|
Disc-shaped brush overhang size |
≥400 mm |
|
||
|
|
Driving speed when sucking-washing |
3-20 km/h |
|
|
|
Water Tank |
volume |
5 m³ |
|
|
|
Dust tank |
Volume |
5 m³ |
|
|
|
Discharge door opening angle |
≥45° |
|
||
|
Hydraulic system |
Type |
Open-type, electrical controlling |
|
|
|
Main units |
Gear pump, hydraulic motor, hydraulic cylinder, electromagnetic valve |
|
||
|
System pressure |
16 MPa |
|
||
|
Hydraulic oil tank volume |
60 L |
|
||
|
Oil temperature |
60 ˚C |
|
||
|
Electrical system |
Type |
DC12 V |
|
|
|
Voltage |
12 V |
|
||
|
Storage batteries |
12 V |
|
||
|
High pressure water system |
Type |
Piston pump |
|
|
|
Model |
German PT36 |
|
||
|
System pressure |
10 MPa |
|
||
|
Rotating speed |
1150 r/min |
|
||
|
Water valve type |
Hydraulic high pressure ball valve |
|
||
|
Water valve pressure |
7 MPa |
|
||
|
Sprayers type |
High pressure washing type |
|
||
|
Water-filter |
Filter type |
|
||
|
Sprinkling system |
Main units |
Electric diaphragm pump, water filter, nozzle, etc. |
|
|
|
Low-pressure water system |
Model |
Weilong 40/50 |
|
|
|
Flow |
40 m3/h |
|
||
|
Head |
50 |
|
||
|
Sweeping disk device |
Type |
Middle-installed two sweeping disks, hydraulic motor drive, adjustable rotated speed, separated controlled, Automatic avoidance function |
|
|
|
Sweeping disk diameter |
850 mm |
|
||
|
Sweeping disk speed |
high:110; medium:80; low:50 |
|
||
|
Sweeping disk angle |
Forward leaning:4-6°; Extravert:4-7° |
|
||
|
Sucking disk |
Type |
Double suction, hydraulic control, spring suspension |
|
|
|
Diameter |
180 mm |
|
||
|
Width |
1800 mm |
|
||
|
Side spraying staff |
V type spraying staff with the function of automatic avoidance function |
|
||
2, vehicle tools
| List | Name | No. | Remark |
| 1 | Fire hose | 2 | One for filling water, another for discharging sewage |
| 2 | Fire wrench | 1 | Used for removing hydrant |
| 3 | Water filter wrench | 1 | Used for removing water filter |
| 4 | High pressure spraying gun | 1 | Used for high pressure spraying gun |
| 5 | Spare tire | 1 | |
| 6 | manual hydraulic pump joystick | 1 | Used for start manual hydraulic pump |
3, spare parts
| List | Name | No. | |
| 1 | Brush | 1 | |
| 2 | Rear door seal | 1 | |
| 3 | Fan seal | 1 | |
| 4 | Duster seal | 2 |
5, the imported devices for the CLW brand road sweeping and washing vehicle manufactured by Chengli Special Automobile Co., Ltd.
| List | Name | Model | Manufacturer name |
| 1 | High pressure water pump | PT36 | German PINFL |
| 2 | Automatic discharging valve | VB200/150 | German PINFL |
| 3 | Overflow valve | VS200-180 | German PINFL |
| 4 | Electric control box controller | German STW | |
| 5 | Knob switch | Japan hequan | |
| 6 | Sewerage sensor | America Danaher | |
| 7 | Hydraulic valve | SWH-G02-C4-D2H | Northman Co., Ltd. |
