HOT SALE! ISUZU 380hp diesel 12tons telescopic crane mounted on cargo truck, Best price ISUZU cargo truck with crane
HOT SALE! ISUZU 380hp diesel 12tons telescopic crane mounted on cargo truck, Best price ISUZU cargo truck with crane
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc.
And at the same time we can install different kinds of gripping apparatus for different usages upon request.
If you're interested in our cargo truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com

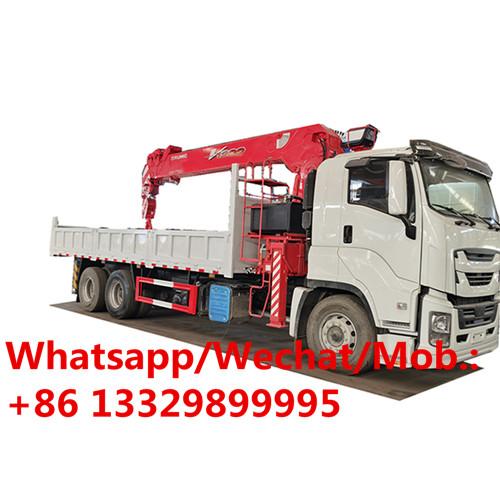

More pictures of ISUZU brand diesel 12tons cargo truc kwith crane manufactured by Chengli Special Automobile Co., Ltd. as below.
Factory sale CLW I-SUZU VC61 diesel Euro5 crane truck 12 ton manufactured by Chengli Special Automobile Co., Ltd. as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Crane truck |
| Truck Model | CLW5250JSQQL5 | |
| Drive Type | 6*4 | |
| Gross Vehicle Weight(kg) | 25000 | |
| Curb Weight (kg) | 13605 | |
| Payload(kg) | 11395 | |
| Overall Dimensions (mm) | 12000×2500×3900 | |
| Features |
1. Adopt world-class Japanese brand ISUZU chassis, 350HP high power and fuel efficiency, the full load minimum fuel consumption rate is equal to or less than 210g/kW.h , reliability, up time 2. All structure made of high strength steel 3. Japanese brand UNIC crane is easy to mount and minimum space required for mounting 4. Safety transportation, crane driven by hydraulic motor, PTO to truck original engine, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology |
|
| Engine | Engine Model | 6UZ1-TCG50 |
| Engine Type | 6 cylinders in line, turbocharged inter-cooled, without adblue | |
| Engine Brand | I SUZU | |
| Fuel Type | Diesel | |
| Max. Power | 279kw/380HP | |
| Max. Torque (N.m/rpm) | 1765/1300 | |
| Bore/Stroke(mm) | φ120/145mm | |
| Displacement(ml) | 9839 | |
| Emission Standard | Euro V | |
| Chassis | Chassis Brand | I SUZU |
| Chassis Model | QL5330TZZU1VDZY | |
| Cab | Flat roof, one row with single sleeper, with A/C, with central lock, electric window | |
| Tire No. | 10+1 | |
| Tire Specification | 12.00R22.5 Steel Tire | |
| Color | Customized | |
| Max speed(km/h) | 102 | |
| Wheelbase (mm) | 5820+1300 | |
| Front/rear tread(mm) | 2060/1855/1855 | |
| Axle No. | 3 | |
| Gear Box | FAST brand, 12 speed forward with 2 reverse, manual | |
| Steering Wheel | Left hand drive with power assisted | |
| Brake | Air brake, with ABS | |
|
Crane
|
Crane Brand | UNIC URV1204 |
| Max Lifting Capacity | 12100kg at 2.5m | |
| Max Working Height(m) | 16.4 | |
| Max Working Radius(m) | 14.51 | |
| Boom sections. | 4 | |
| Slewing range/speed | 360 continuous / 2rpm | |
| Outrigger span | Max. 5.7m | |
| Outriggers No. | 2 front outriggers, 2 rear outriggers | |
| Safety device | Pressure relief valve for hydraulic circuit/Counter balance valve for boom raising and boom telescoping cylinder/Pilot operation check valve for vertical outrigger cylinder/Boom angle indicator/Hook safety latch/ Over winding alarm/Alarm buzzer/Level | |
| Additional safety device | Slewing self-locking device/ Over winding automatic stop device | |
| Crane mass | About 5000kg | |
| Box | Box inner dimensions(mm) | 7500x2300x600 |
| Box thickness | Side 3mm, bottom 5mm | |
| Others | Please refer to following drawing |
