Customized SINO TRUK HOWO 4*2 RHD 8T intelligent type asphalt tanker vehicle for sale, 10CBM bitumen spreading truck
Customized SINO TRUK HOWO 4*2 RHD 8T intelligent type asphalt tanker vehicle for sale, HOT SALE! 10CBM bitumen spreading vehicle
Advantages of CLW brand emulsified asphalt sprayer truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1.The temperature rising speed is 5% faster than the trucks manufacture by other factory.
2.With conducting oil system, asphalt both in the tank and in the nozzle are all hot, easy to spray, no remained.
3.High quality metal hose, won't broken, long service life.
4.The distribution width can be adjusted according to your demand from 4.5m to 6m.
5.Start quickly, though the truck stop, still can distribute.
Our CLW asphalt distributor truck is also called asphalt paver, asphalt sprayer truck, bitumen sprayer truck, asphalt distributor truck, asphalt bitumen tank truck, road sealer truck, asphalt truck, etc. The liquid bitumen sprayer truck is mainly used to transport asphalt and distribut it for sealing the road.
The asphalt distributor trucks manufactured by Chengli Special Automobile Co., Ltd. adopt advanced technology and foreign imported parts. It has more advantages than other asphalt suppliers.Our asphalt sparyer truck for sale adopt special chassis and Italy imported burner. It has many advantages.
If you're interested in our asphalt tanker truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
SINO TRUK HOWO 4*2 RHD 266hp diesel intelligent type asphalt tanker truck for sale, Customized SINO TRUK HOWO 4*2 LHD 266hp diesel 10cbm asphalt tanker truck, adopts HW76 new face driver cab, 4600mm wheelbase, HW13710 manual gearbox, HF7 7tons front axle/ST16 16tons rear axle, 295/80R22.5 tires, etc.
The devices of SINO TRUK HOWO 4*2 LHD 226hp diesel intelligent type 10cbm asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
1, the asphalt pump adopts high quality QGB950 (high viscosity asphalt pump, 950L/min).
2, hydraulic system: Proportional valve (Taiwan EFBG-03-160-HF); Automatic reversing valve and overflow valve; radiator adopts Risheng brand; the model of hydraulic motor for asphalt pump: 05-110-BD31; hydraulic pump model: CBQ550-L or Power take off after engine GPC4-50R.
3, control way: Intelligent touch screen computer control at the driver cab; control system: (Siemens, Germany), 36 sets intelligent asphalt spraying nozzles (one controls one).
4, Heating method: Burner (Italy imported Riello brand burner model G20) + Automatic heating of heat transfer oil
5, gasoline generator unit: 6KW
6, spreading amount: 0.25-3.5L/㎡;
7, asphalt distributing width: 4.5m, 48 sets spraying nozzles for 6m spreading width is selective (10000RMB additional).
8, Distributing medium: emulsified asphalt, hot asphalt, SBS hot asphalt, etc.

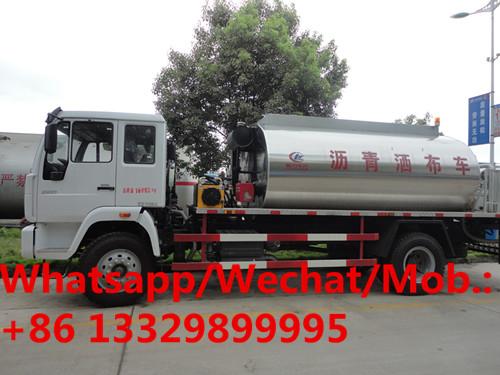

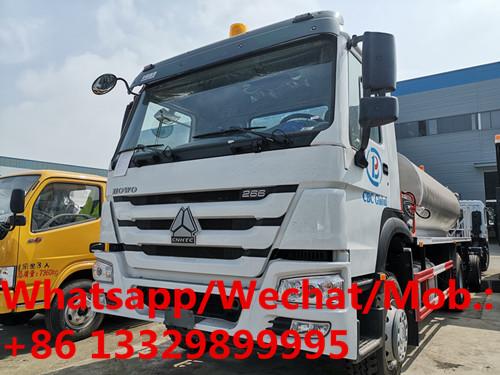

More pictures of SINO TRUK HOWO 4*2 RHD asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Main technical parameters of SINO TRUK HOWO 4*2 RHD intelligent type asphalt tanker truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Main technical parameters | |||
| Product name | CLW5160GLQZ5 asphalt spreading truck for sale | ||
| Total mass(Kg) | 16000 | Tanker volume(m3) | 6.65 |
| Rated mass(Kg) | 5710,5645 | Overall dimension(L*W*H)(mm) | 8335×2480×3050 |
| Curb mass(Kg) | 10160 | Driver seated person | 2,3 |
| Approach/departure angle(°) | 19/13 | Front/rear suspension(mm) | 1430/2405 |
| Axle nos. | 2 | Wheelbase(mm) | 4500 |
| Axle load(Kg) | 5600/10400 | Max speed(Km/h) | 101 |
| Chassis main parameters | |||
| Chassis model | ZZ1167 | Manufacturer | SINO TRUK COMPANY |
| Approach/departure angle(°) | 19/16 | Tires specification | 295/80R22.5 tires |
| Steel spring | 11/9+8,3/9+8,3/3+2,3/- | Front tread(mm) | 1930,1960,2045 |
| Fuel type | diesel | Rear tread(mm) | 1800,1860,1860 |
| Emission standard | Euro 3 | ||
| Engine model | Manufacturer | displacement(ml) | Rated power(Kw) |
| WD615.62 | SINO TRUK | 9726 | 196 |
