Customized mini forland 115hp diesel dump garbage truck for sale, forland construction wastes collecting tipper truck
Customized mini forland 115hp diesel dump garbage truck for sale, forland construction wastes collecting tipper truck for sale
Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc. Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of dump truck in China since 2004s. And we can offer dongfeng dump truck, HOWO dump truck, ISUZU tipper truck, FAW dump tipper, North Benz dump truck, tipper trailer, etc. 4*2 dump truck, 4*4 dump truck, 6*4 tipper truck, 8*4 dump truck, etc. More information, please feel free to contact with Ms. Anita Deng.
Customized forland brand 4*2 LHD mini wastes collecting dump truck, adopts Forland 1695mm single row driver cab, 2850mm wheelbase, quanchai Q23-115C60 115hp diesel Euro 6 engine, 130 rear axle, 7 speed gearbox, etc.
And the overall dimension of forland 115hp diesel mini dump garbage truck is 5450*1900*2130mm; while the dump tipper box dimension(L*W*H): 3600×1700×500(mm).
This kind of dump garbage truck is widely working at the basement to transporting Urban construction wastes, etc.
If you're interested in our dump truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.

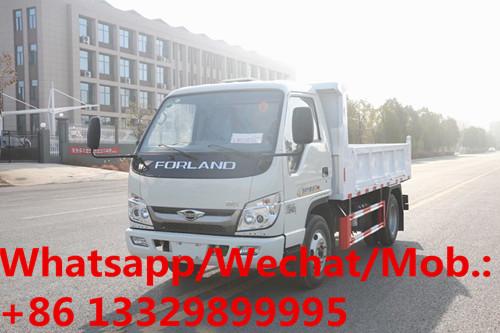

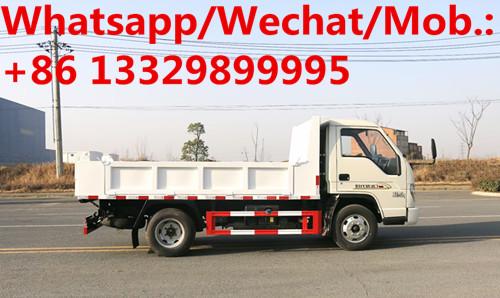

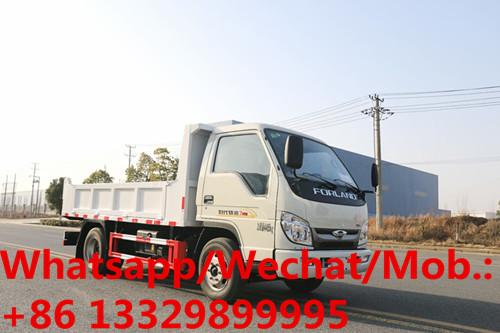

More pictures of forland 4*2 LHD 115hp diesel dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Main technical parameters of FORLAND dump truck as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Forland 4*2 LHD 115HP diesel dump tipper truck for urban construction wastes transportation for sale |
| Drive Type | 4*2, LHD | |
| Loading capacity | About 2tons | |
| Gross Vehicle Weight(kg) | 4495kgs | |
| Curb Weight (kg) | 2720kgs | |
| Rated weight(kgs) | 1645kgs | |
| Overall Dimensions L*W*H(mm) | 5450*1900*2130mm | |
| Engine | Engine Model | Q23-115C60 |
| Fuel Type | Diesel | |
| Power | 85kw/115HP | |
| Emission Standard | Euro Ⅲ | |
| Displacement(ml) | 2300 | |
| Chassis | ChassisBrand | Dongfeng |
| Front/Rear Axle Load(KG) | 6500/11500 | |
| Tire No. | 6 | |
| Tire Specification | 6.50R16LT 10PR | |
| Wheelbase (mm) | 2850mm | |
| Axle No. | 2 | |
| Gear Box | 7 speed gearbox | |
| Front/rear suspension(mm) | 1130/1470, | |
| Front/rear tread(mm) | 1495/1435 | |
| Leaf Spring No. | 87/4+3 | |
| Driver cab | Forland 1695mm single row driver cab | |
| Tipping system | Box inner dimension(mm) | 5450*1900*2130mm |
| Box material | Carbon steel,side 3mm,bottom 4mm | |
| Hydraulic cylinder no.(set) | 2 | |
| Hydraulic cylinder position | At the center of the truck bottom | |
| Discharge type | Rear tipping |
