Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck,
Customized Dongfeng 6*4 LHD/RHD 25tons sink-style mobile crane truck for sale, factory sale best price crane truck,
Total mass: 25000kgs
Overall dimension (L*W*H): 12480*2500*3700 (mm)
Wheelbase: 4350+1300mm
Engine model: YC6JA240-50 240 yuchai 240hp diesel engine
Main/auxiliary hoist: 25T/25T
Mobile crane is also called truck crane, a kind of crane mounted on general truck chassis or special purpose truck chassis. The driving cabin and lifting operation cab are setted separately. The advantage of this kind of mobile truck crane is flexibility and moving quickly; while the weakness is work must be outrigger, cannot load driving and at the same time cannot work on the a soft or muddy field. And this kind of mobile truck crane is widely used for Engineering Constructions, such as Roads, bridges, buildings, emergency services, etc. The general engineering team, the construction industry and the electric power installment department, all needs the automobile crane.

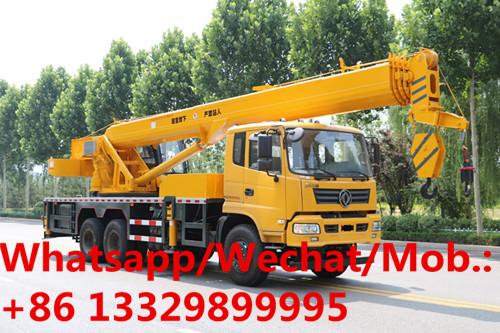

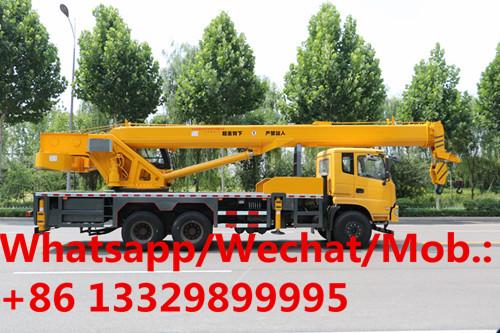

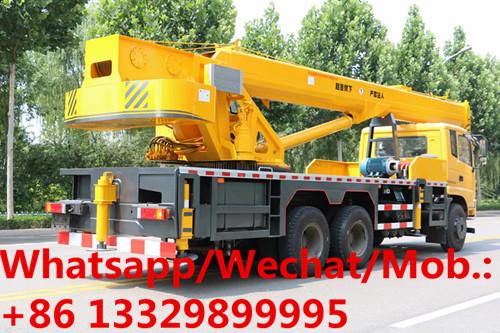

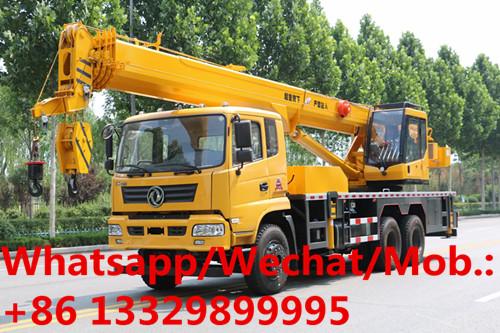

More pictures of dongfeng 6*4 LHD 25tons sink-style mobile crane truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Main technical parameters of Dongfeng 6*4 25T sink-style mobile crane truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Main technical parameters of dongfeng sink-style mobile crane truck as below. | |||
| Total mass | 25000kg | Max lifting mass(kg) | 25000 |
| Engine model | YC6JA240-50 yuchai 240hp diesel engine | Main/auxiliary hoist | 25T/25T |
| Displacement/ power (ml/kw) | 6870/177 | Crane boom | 9.6m 5 sections veneer arm |
| Gearbox | Fastgear | Full crane boom length (m) | 41 |
| Overall dimension(L*W*H)(mm) | 12480*2500*3700 | Big boom dimension(mm) | 675*550 |
| Wheelbase | 4350+1300mm | Back displacement top | Standard |
| Tires pec | 1100R20 rail tires | Slewing bearing | external gear |
| Front/rear axle(kgs) | 7000/9000/9000 | Slewing mechanism | 360°Arbitrary rotation |
| Outrigger Longitudinal/transverse span(mm) | 6200/6900 | Beam | new torque-fighting van beam |
| Steering type | Hydraulic steering | Power pump | Triple-pump |
| Braking | Air cut braking | Operation room | Advanced operation room |
| Others: double Legs, Fully covered floor, double-sided operation, negative angle, electronic throttle | |||
| Chosen part: motor, computer, weighing apparatus, camera, rotating basket, air conditioning, level | |||
Main technical parameters of dongfeng 25T mobile crane truck for sale as below
| Main technical parameters | |||
| Product name | Dongfeng 25T Mobile crane truck for sale | ||
| Total mass(Kg) | 25000 | Overall dimension(L*W*H)(mm) | 12480*2500*3700 |
| Curb mass(Kg) | 24805,24870 | Driver cab seated person | 2,3 |
| Approach/departure angle(°) | 24/10 | Front/rear suspension(mm) | 1450/3350 |
| Axle load | 3 | wheelbase(mm) | 4350+1300 |
| Axle load(Kg) | 7000/9000/9000 | Max speed(Km/h) | 90 |
| Chassis main parameters | |||
| Truck chassis model | EQ1250GLJ2 | Manufacturer | Dongfeng company |
