Dongfeng 4*2 LHD 170hp 5.4 m length day old chick transported truck for sale, customized baby birds van truck for sale
Dongfeng 4*2 LHD 170hp 5.4 m length day old chick transported truck for sale, customized baby birds van truck for sale
Customized dongfeng D9 day old chick transported truck for 35,000 baby chick, adopts dongfeng D9 luxurious drive cab, 3950mm wheelbase, 8 speed gearbox, 3.9tons front axle/8tons rear axle, 9.00R20 rail tires, B170 33 170HP Euro 3 diesel engine, etc.
Day old chicks transported vehicle is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc.
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
There are ventilation and heating system inside the farm poultry transported truck. There are several electronic ventilator fans (according to the length of the insulation van) on the top for ventilating, assuring offering enough oxygen for the baby young chicks/ducks/ gooses in the van. There are several windows (according to the length of the chick box body) for ventilating, heating, oxygen-offering.
Overall dimension (L*W*H)(mm): 8500*2490*3850
Chick van box dimension(L*W*H)mm: 5800*2280*2360 (mm).
If you're interested in our day old chick transported truck, please send email to truck0011@163.com; or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

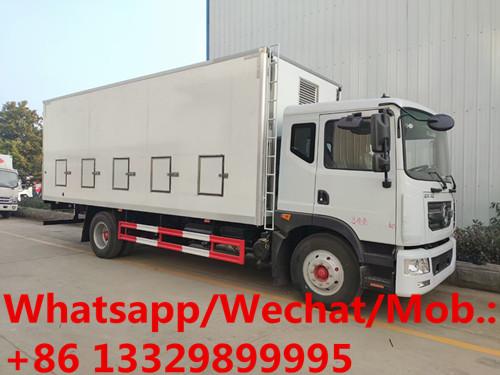

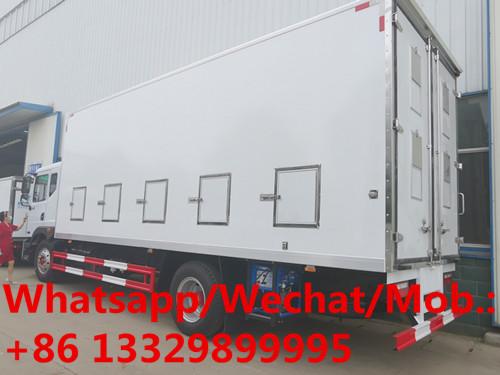

More pictures of Dongfeng D9 4*2 170hp diesel day old chick transported truck as below.
Main technical parameters of Dongfeng D9 4*2 LHD 170hp diesel day old chick transported truck as below.
| Product name | Dongfeng D9 LHD 4*2 day old chick transported truck | ||
| Overall dimension(L*W*H)(mm) | 7450×2550×3950 | Chick van box dimension(L*W*H)mm |
5400*2280*2360 (mm).
|
| Drive type | 4*2 LHD, | Total mass | 15800 |
| Gearbox | 8 speed gear box | Tyre specification | 9.00R20 tyres *6+1 |
| Power steering | Yes | Exhaust braking | Yes |
| Air-cut braking | Yes | Driver cab | Dongfeng D9 4*2 luxurious o driver cab |
| Engine | Cummins 170hp B170 33 | Emission standard | Euro 3 |
| Wheelbase(mm) | 3950 | F/R axle loading | 3.9tons/8tons |
Main parameters for the chick van box as below.
| Performance and consumption | |||
| Heating system | Watering system | No | |
| Cooling system | One refrigerated reefer | China-made or USA CARRIER high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) | |
| Ventilation system | Cold air ducts on the two sides of the van body | Two cold air ducts for the refrigerated reefer | |
| Blind windows |
5 sets of blind windows with openable doors for the left and right van sides (as the pictures show), 2 sets of blind windows for the front plate. Blind Windows: 5*2+2=12 |
||
| electronic ventilator fans |
1, 4 sets of electronic ventilator fans with sliding doors for the rear plate door; 4*2 sets of electronic ventilator fans for the van top Electronic fans: 4+4*2=12 |
||
| Sky-window | Top mounted sky windows*4 Sky-windows: 4 | ||
| Dimension | |||
| Chick van box body | Length | 5400mm | |
| Width | 2280mm | ||
| Height | 2360m | ||
| Refrigerated van box |
Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices; Aluminum-patterned baseplate; |
||
